Custom Galvanized Steel Sheet Metal Stamping Brackets with Slotted Bases and Steel Punching Fabrication
-
Model NumberDML240901Product nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing

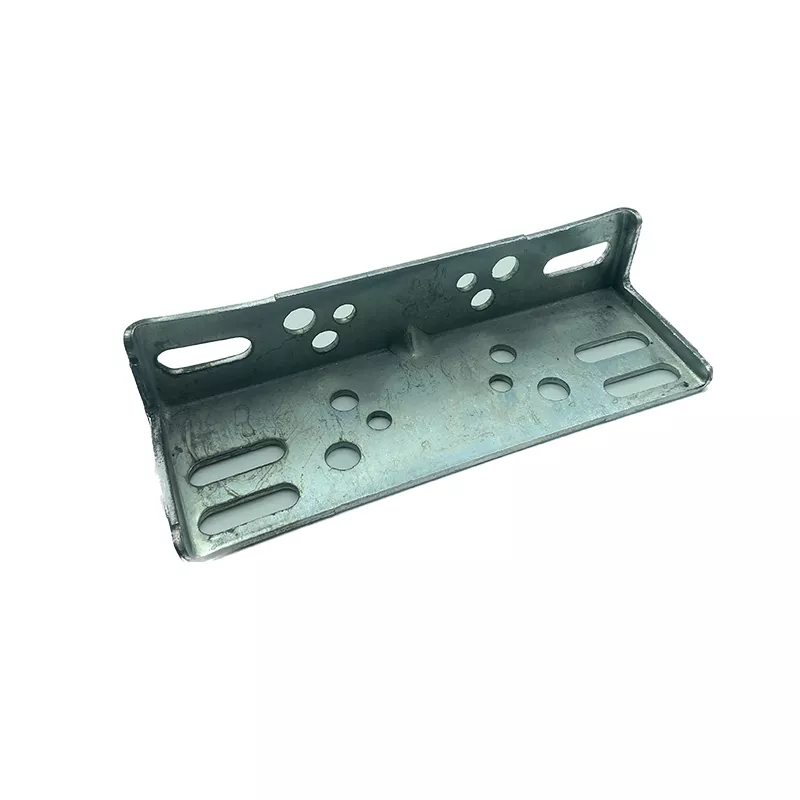

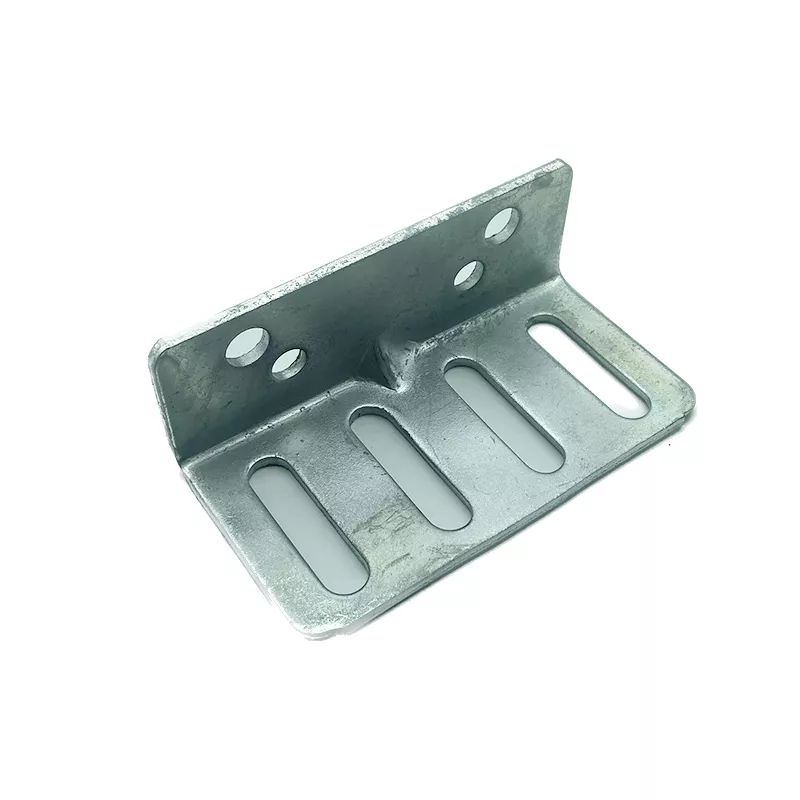

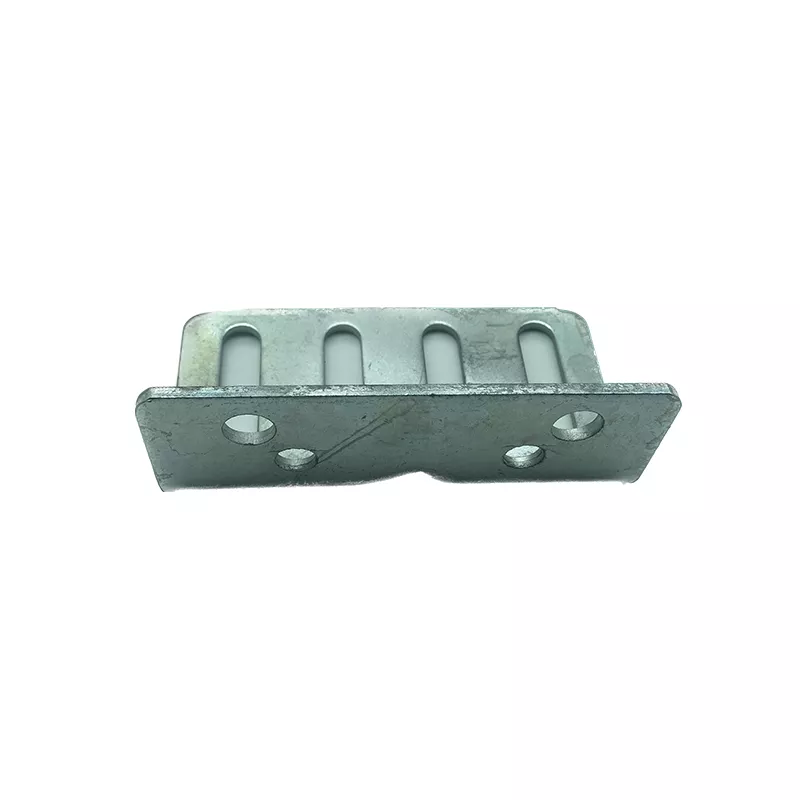

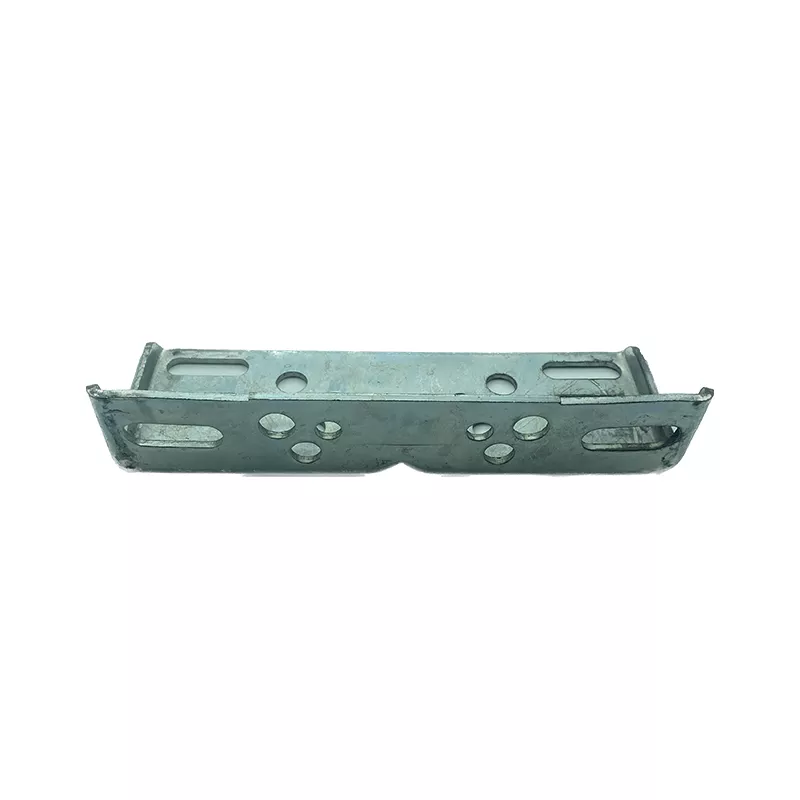

This angle bracket example has four elongated slots in its base and round holes in the upright face. A formed feature spans part of the bend region. Model DML240901 covers custom steel punching and sheet metal stamping fabrication, including galvanized steel bracket enquiries.
Dimension the mounting arrangement
Show slot length, width and spacing along with the upright-hole positions. Define the finished angle, flange dimensions and sheet thickness. Provide the mating fastener or component geometry wherever it controls the fixing clearances.
Specify the steel grade and galvanizing requirement for the ordered part. If powder coating is also required, define the treatment system and any areas needing masking or surface preparation. The finished material and coating specification should accompany the component drawing.
Send the fabrication details
STEP, STP and PDF drawings are accepted. The application is listed as electronics, with a minimum order quantity of 100 and individual packing. Include the revision, quantity and any required inspection points. Load or installation requirements need design-specific criteria for review.
