Custom Copper Precision Casting Parts | Flanged Cylindrical Metalworking Enquiries

• Model Number

  Dmetal-200084
  Material

  Aluminum
• Application

  Industry
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder coating/oxidation etc
  Mold making

  By ourself
• Process

  Die Casting-deburring- Machinery
  Service

  OEM ODM
• Feature

  Eco Friendly
  Quality Control

  Professional Inspection
• Packing

  Carton

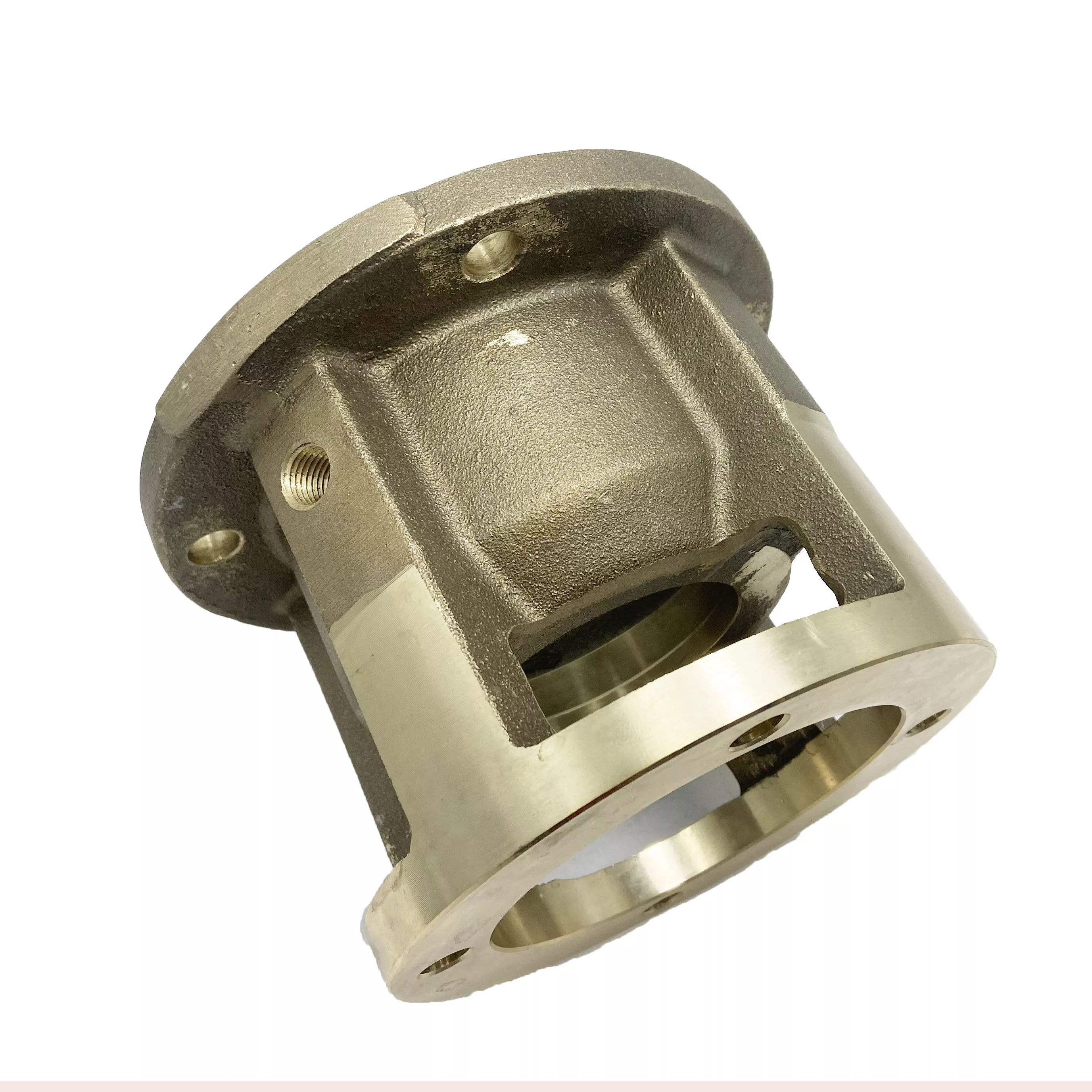

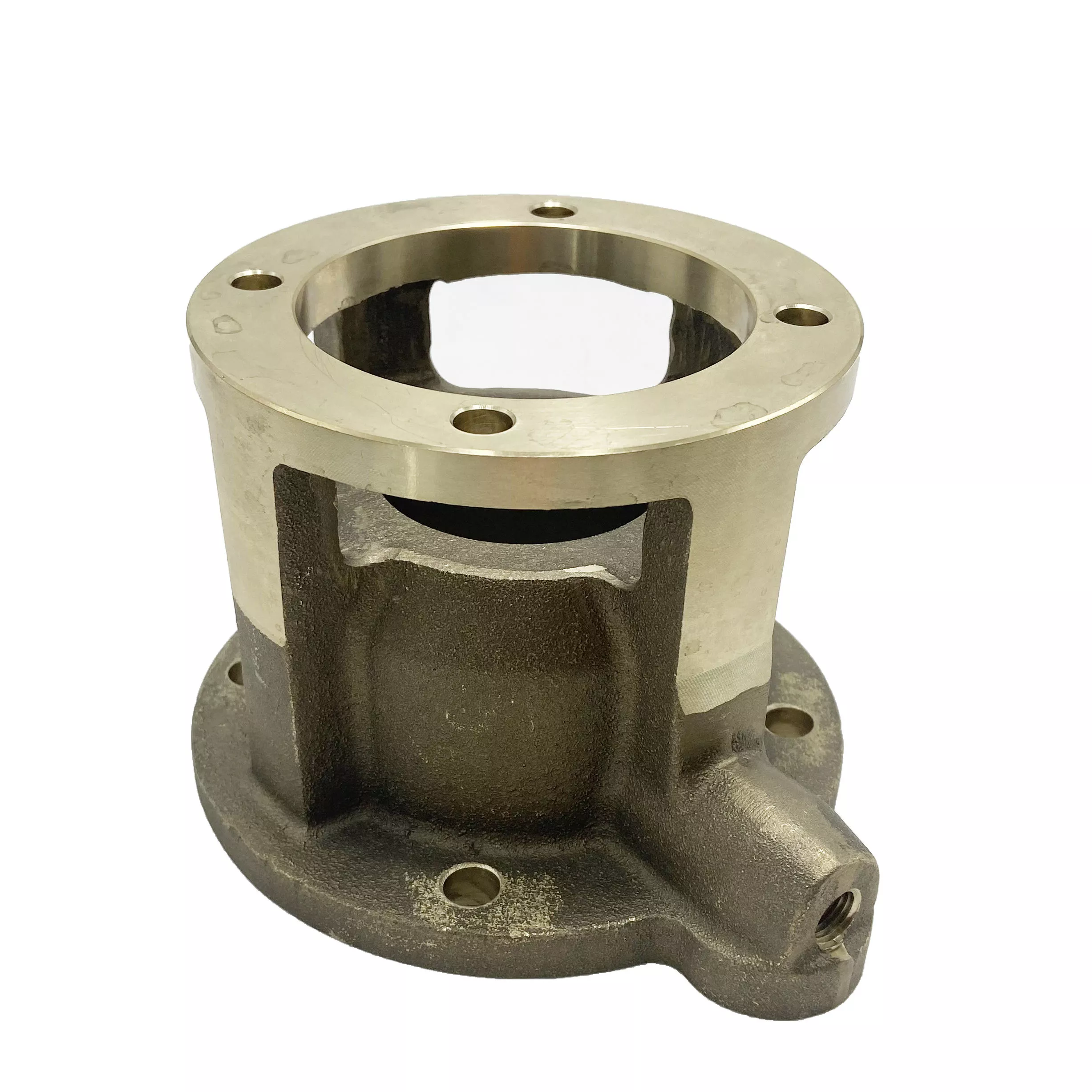

Use the upper flange and side cutouts to identify the cylindrical component required by the project. The gold-brown example has fixing holes, a projecting side ear and large openings through its lower body. Those visible details do not independently establish copper composition or an installed mechanism.

Locate the flange above the open-sided body

Provide the flange section, central opening and fixing pattern from assembly datums. Dimension the lower cutouts and the relationship of the side ear to the mounting face. Show hidden geometry where it affects forming, machining or inspection of the requested component.

Select the actual metal and forming route

Copper is the material direction for this precision-casting enquiry. An aluminum alternative requires a separately selected specification rather than being treated as the composition of the same copper part. State the actual grade and condition, then review the manufacturing plan for that chosen design.

• Identify the flanged cylinder and drawing revision.
• Specify actual copper grade and material evidence.
• Locate flange holes, side ear and body cutouts.
• Mark the flange and cylinder regions requiring secondary work.
• Agree treatment and final acceptance requirements.

Inspect the mounting relationships

Mark surfaces accepted as cast and those requiring final dimensional work. Choose a compatible finish and identify masking at contact or locating regions. Define units, tolerances and the delivered condition used to measure the flange and any adjoining interfaces.

Include quantities, intended service and the required inspection records with the request. A circular flange does not establish pressure capability or a standard connection. Provide mating details and any functional-test criteria needed for the actual design, with evidence appropriate to that application.

Custom Metalworking Service from Qingdao Metal Foundry offers precision casting parts designed for industrial applications. Our model, Dmetal-200084, is crafted from high-quality aluminum, ensuring durability and reliability in various environments.

Each component is tailored to meet customer specifications, with dimensions customized to your requirements. Our state-of-the-art surface treatment options include paint, powder coating, and oxidation, allowing for a finish that meets both aesthetic and functional needs.

We pride ourselves on our in-house mold making capabilities, which ensures precision and efficiency throughout the manufacturing process. Utilizing die casting techniques followed by meticulous deburring and precision machining, we deliver products of exceptional quality.

Our service includes OEM and ODM options, making it easy for you to integrate our parts into your existing projects. Every product undergoes a thorough professional inspection to ensure compliance with industry standards, reinforcing our commitment to eco-friendly practices.

Packing is handled with care, using robust cartons to protect your components during transit. Trust Qingdao Metal Foundry for your precision casting needs and experience unmatched quality and service.
