Product description
Project & Delivery Requirements
-
Model NumberLZXMaterialsteel, stainless steel, aluminum, galvanized steel,
-
SizeCustomized sizeApplicationMachinery/Industry/Home/Automotive
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
TypeOEM PartsEquipmentCNC Bending/Stamping Machine/Laser Marking

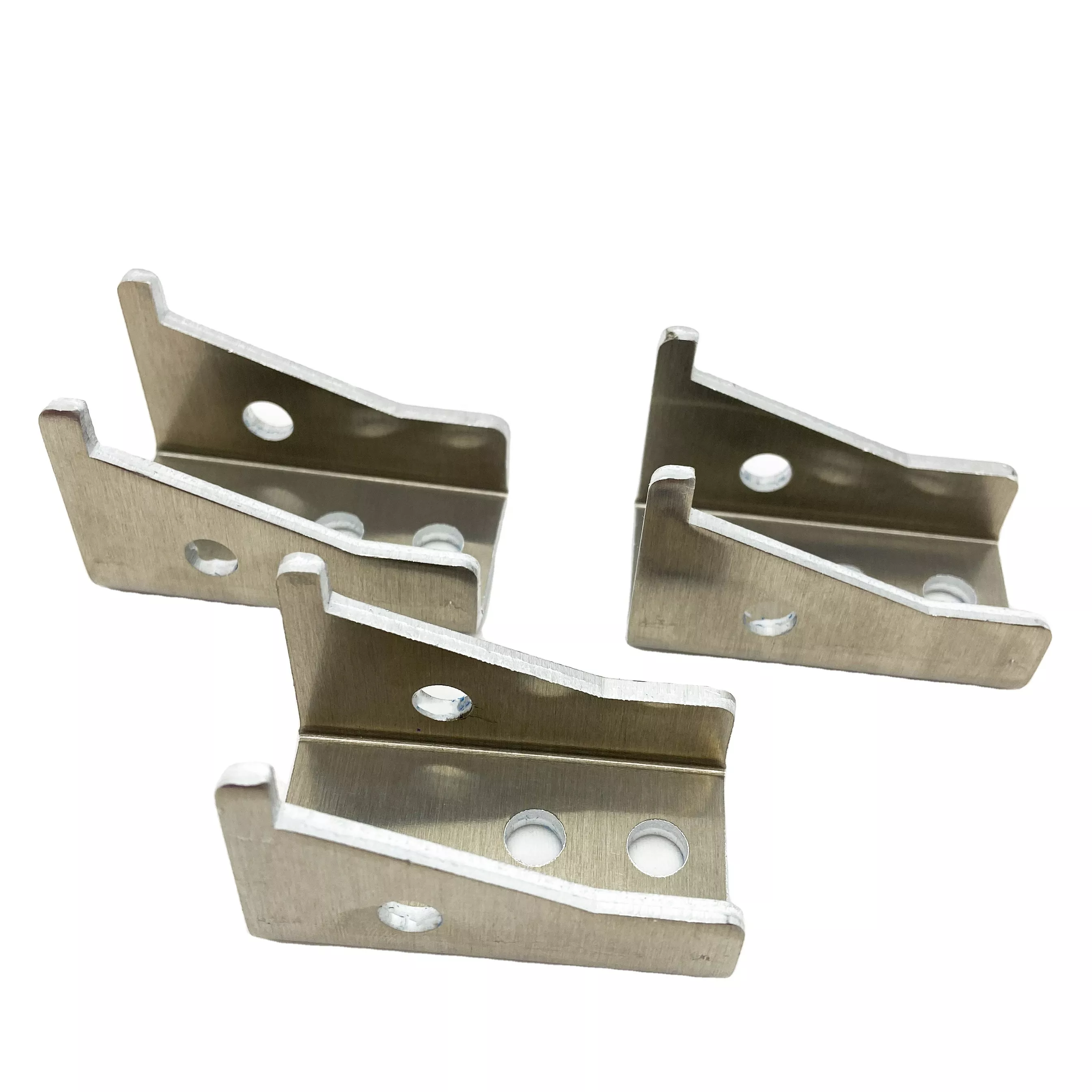

An open U-shaped bracket with fixing features
The three examples have raised side walls, circular openings and shaped edge details. Define the bracket base, wall spacing and mounting-hole locations on the drawing, including the part's connection to the supporting panel.
Vehicle-project requirements need an actual assembly reference
The photograph does not establish a vehicle side panel or fit with a particular model. For a new-energy-vehicle project, identify the actual bracket role, aluminum sheet grade and thickness, and the mating assembly dimensions.
Include quantities, finish and inspection criteria after stamping and bending. State any service or test requirements for that installed component. No vehicle compatibility or structural load rating is verified by the image.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
