Custom Aluminum Zinc Precision Die Cast Plates | Bored Circular OEM ODM Component Enquiries

• Model Number

  Zenithus-Casting
  Material

  Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals etc.
• Process

  Die casting, Sand casting, Investment casting, Lost foam casting etc.
  Heat treatment

  Quenching & tempering; solution & aging
• Surface treatment

  Powder coating, Zinc plating, Laser engraving, Sandblasting etc.
  Inspection

  Metallographic analysis, MT, UT, RT, 100% visual+100%gauge, CMM etc.
• OEM/ODM

  Accept
  Application

  Auto, Motorcycle, Energy, Medical device, Robotics etc.
• Drawing Format

  2D(PDF/CAD), 3D(IGES/STEP)
  Certification

  ISO9001:2015/IATF16949
• Standard

  GB ASTM AISI DIN BS

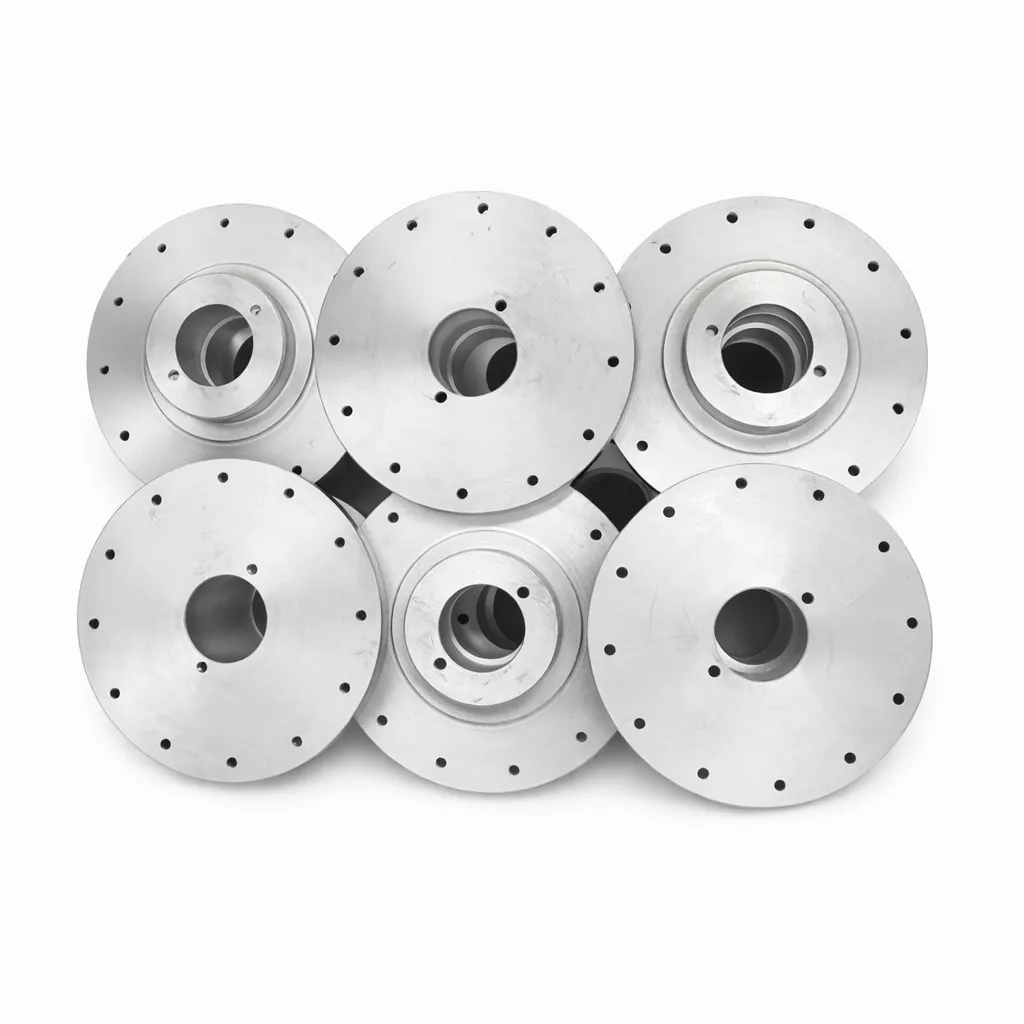

Define each circular plate from its actual drawing before selecting aluminum or zinc alloy. The grouped views show peripheral fixing holes, stepped central bores and raised hub regions with different visible details. They do not establish measured size differences, standard connection patterns or a matched supplied set.

Reference the center bore to the fixing pattern

Provide the actual assembly interface and locate the bore, hub steps and peripheral holes from common datums. Define plate thickness, seating faces and any contacts requiring machining. Photographic proportions should not be used to assign a standard flange size or determine an interchangeable fit.

Choose the alloy and casting requirements

Specify material grade, delivery condition and quantities by component revision. Review die casting and any secondary machining for the selected sections and alloy, including stock allowances at fitted surfaces. Heat treatment and finishing need to suit that material rather than a general assumption that every method applies.

• Identify the circular mounting plate and revision.
• Select actual aluminum or zinc-alloy grade.
• Dimension bore, hub steps and peripheral holes.
• Define casting stock and finished seating contacts.
• Agree plate inspection and material records.

Accept the machined plate in final condition

Include PDF or CAD dimensions and IGES or STEP geometry, with tolerance units and measurement conditions at working interfaces. State the applicable material or dimensional standard and inspection coverage for the actual part. A general standards or certificate reference does not independently prove universal precision or current qualification.

Compare OEM or ODM proposals through the same center-to-fixing geometry, chosen alloy and measurable finished plate requirements.

Zenithus-Casting provides custom precision aluminum and zinc alloy die casting parts, manufactured to your exact specifications. As an experienced OEM and ODM manufacturer in China, we support a wide range of materials including aluminum, brass, bronze, copper, hardened metals, and precious metals.

We offer advanced casting processes such as die casting, sand casting, investment casting, and lost foam casting, ensuring superior product quality and dimensional accuracy for various industrial applications.

Each component can undergo heat treatments like quenching, tempering, solution, and aging to achieve optimal mechanical properties. Surface treatments, including powder coating, zinc plating, laser engraving, and sandblasting, are available to enhance durability and appearance.

Our strict inspection procedures utilize metallographic analysis, MT, UT, RT, 100 percent visual checks, gauge tests, and CMM evaluation to guarantee reliable and consistent quality, meeting ISO9001:2015 and IATF16949 standards. Products are widely used in automotive, motorcycle, energy, medical device, and robotics industries. We accept 2D and 3D drawing formats for seamless customization to your needs.
