Custom Stainless Carbon Steel Aluminum Machinery Castings | Linked Bracket and Arm OEM Enquiries

• Model Number

  Zenithus-Casting
  Material

  Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals etc.
• Process

  Die casting, Sand casting, Investment casting, Lost foam casting etc.
  Heat treatment

  Quenching & tempering; solution & aging
• Surface treatment

  Powder coating, Zinc plating, Laser engraving, Sandblasting etc.
  Inspection

  Metallographic analysis, MT, UT, RT, 100% visual+100%gauge, CMM etc.
• OEM/ODM

  Accept
  Application

  Auto, Motorcycle, Energy, Medical device, Robotics etc.
• Drawing Format

  2D(PDF/CAD), 3D(IGES/STEP)
  Certification

  ISO9001:2015/IATF16949
• Standard

  ASTM, AISI, DIN, BS, JIS, NF, AS

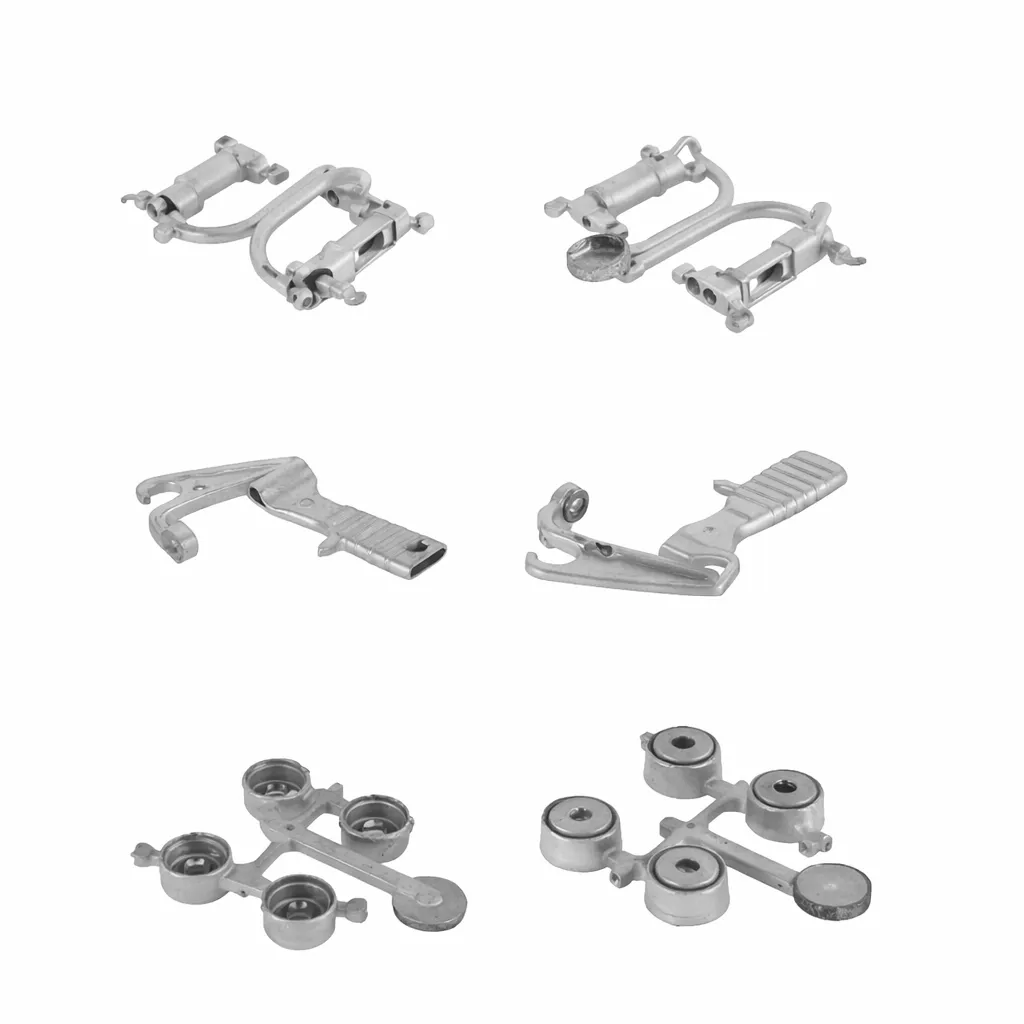

Define the machinery component through its actual connections before selecting stainless steel, carbon steel or aluminum. The examples show linked U-shaped brackets, lever-like plates and cross-shaped arms with circular end regions. Similar joint forms do not establish a vehicle fit, bearing supply or a complete matched assembly.

Locate pivots and circular ends together

Provide individual component drawings and the relationship to adjoining pieces. Dimension pivot centers, end openings and contact faces from functional datums, marking clearances or movement requirements where relevant. State any pins, bearings or other hardware included in the delivery rather than assuming the examples define the contents.

• Identify each machinery bracket, lever or arm drawing.
• Specify actual stainless, carbon-steel or aluminum grade.
• Dimension pivot centers and circular-end contacts.
• Define casting, machining and hardware supply.
• Agree finished fit and intended movement acceptance.

Choose the blank plan for the selected metal

Include material condition, section geometry and quantities by revision. Review the casting route, machining allowances and compatible treatment for that actual design. A material range does not establish common properties or one production method for every bracket and arm.

Inspect the linkage contacts in final condition

Use PDF or CAD dimensions and IGES or STEP models where available. Mark tolerance units and measurement conditions at the functional interfaces, alongside material records and any applicable load or operating tests. Shape and general certificate references do not verify rated movement, working load or current qualification.

Compare casting proposals using the same component boundaries, supplied hardware and controlled pivot relationships within the machinery assembly.

Discover superior quality with our Custom Precision Casting Parts, expertly manufactured in China by Zenithus-Casting. We offer a wide selection of materials, including stainless steel, carbon steel, aluminum, brass, bronze, copper, and various hardened and precious metals, ensuring reliable performance for diverse industrial needs.

Our advanced casting processes include die casting, sand casting, investment casting, and lost foam casting, delivering exceptional accuracy and consistency for complex components. We provide comprehensive heat treatment options such as quenching and tempering or solution and aging to enhance mechanical properties and durability.

To meet your specific visual and functional requirements, our surface treatment options feature powder coating, zinc plating, laser engraving, and sandblasting. Every part undergoes thorough inspection, utilizing metallographic analysis, MT, UT, RT, full visual and gauge checks, and CMM to guarantee premium quality.

OEM and ODM orders are fully supported. Our custom precision casting parts are widely used in the automotive, motorcycle, energy, medical device, and robotics industries. Backed by ISO9001:2015 and IATF16949 certifications, we strictly adhere to ASTM, AISI, DIN, BS, JIS, NF, and AS standards and accept 2D and 3D drawing formats for seamless project communication.
