Custom Stainless Ductile Iron Pump Valve Casting | Ring Support OEM Precision Enquiries

• Model Number

  Zenithus-Casting
  Material

  Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals etc.
• Process

  Die casting, Sand casting, Investment casting, Lost foam casting etc.
  Heat treatment

  Quenching & tempering; solution & aging
• Surface treatment

  Powder coating, Zinc plating, Laser engraving, Sandblasting etc.
  Inspection

  Metallographic analysis, MT, UT, RT, 100% visual+100%gauge, CMM etc.
• OEM/ODM

  Accept
  Application

  Auto, Motorcycle, Energy, Medical device, Robotics etc.
• Drawing Format

  2D(PDF/CAD), 3D(IGES/STEP)
  Certification

  ISO9001:2015/IATF16949
• Standard

  ASTM, AISI, DIN, BS, JIS, NF, AS

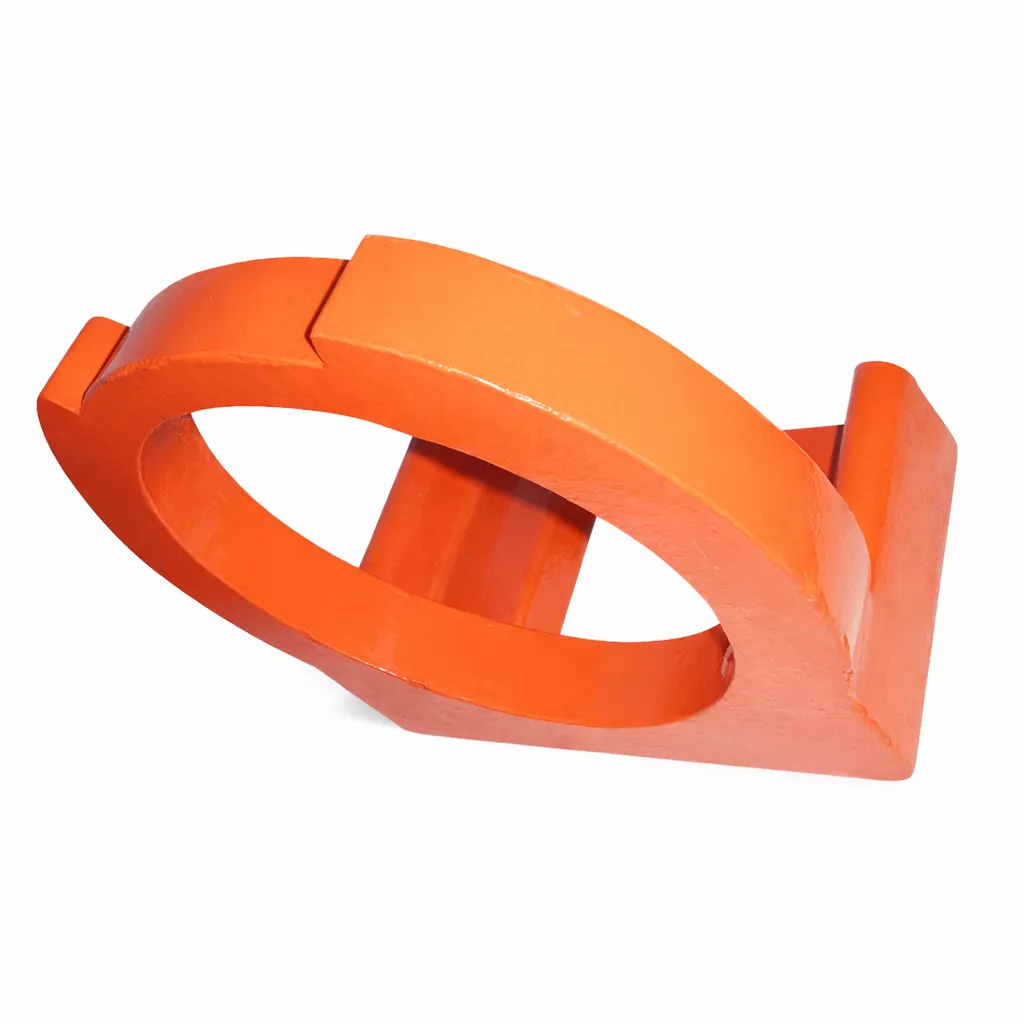

Specify the ring-shaped support as an individual component for the actual pump or valve project. The orange example has a broad central opening joined to a support region and raised rear edge. Its color does not verify coating chemistry, stainless composition or ductile-iron grade.

Define the ring and supporting geometry together

Provide a controlled drawing showing the opening, ring section and mounting or contact faces required by the assembly. Locate those relationships from functional datums and include adjoining-part dimensions where needed. The form alone does not establish valve operation, a pump function or a working-load limit.

Select the metal for the intended service

State actual stainless or ductile-iron grade, applicable material standard and delivery condition. Include quantities and casting sections so the proposed route can be evaluated for that alloy. Select machining, treatment and finishing requirements for the actual design instead of assuming every method applies to both material families.

• Identify the pump or valve ring-support drawing.
• Specify actual stainless or ductile-iron grade.
• Dimension the ring opening and support contacts.
• Define casting, machining and selected surface condition.
• Agree component inspection and intended-duty records.

Separate dimensional acceptance from a fluid rating

Submit PDF or CAD dimensions and IGES or STEP geometry where available. Mark tolerance units and final measurement conditions, with material records and any required functional tests. A pump/valve reference or a general certificate entry does not verify pressure, sealing, flow, corrosion performance or current applicable certification.

Evaluate the OEM proposal against this support's actual material, ring-to-mount geometry and the acceptance requirements of the defined installation.

Zenithus offers custom precision pump valve parts casting services, utilizing advanced stainless steel and ductile iron materials. Our factory supports a wide range of metals including aluminum, brass, bronze, copper, and various hardened and precious metals. With comprehensive OEM and ODM capabilities, we are equipped to meet your most complex engineering requirements.

We provide multiple casting processes such as die casting, sand casting, investment casting, and lost foam casting, ensuring optimal results for diverse application needs. Our parts undergo extensive heat treatment options including quenching, tempering, solution, and aging treatments for enhanced strength and durability.

To ensure top-quality finishes, we offer a variety of surface treatments like powder coating, zinc plating, laser engraving, and sandblasting. Every product is subjected to strict inspections including metallographic analysis, MT, UT, RT, 100 percent visual checks, 100 percent gauge, and CMM to guarantee dimensional accuracy and superior performance.

Our cast parts are widely used in industries such as automotive, motorcycle, energy, medical devices, and robotics. With ISO9001:2015 and IATF16949 certification, and compliance with international standards such as ASTM, AISI, DIN, BS, JIS, NF, and AS, we are committed to providing high-quality solutions to global clients. 2D and 3D drawings are accepted in formats like PDF, CAD, IGES, and STEP for seamless project collaboration.
