Custom Precision Stainless Steel CNC Machining | Laser Drilling Milling and Broaching Flange Parts

• CNC Machining or Not

  CNC Machining
  Type

  Broaching, Drilling, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, drilling, laser processing, milling, turning
• Material Capabilities

  Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel
  Micro Machining or Not

  Micro Machining
• Is it micro-machined?

  micromachining
  surface treatment

  Anodizing, polishing
• Material

  aluminum/alloy/zinc/brass/copper
  Drawing format

  2D/(PDF/CAD)3D(IGES/STEP)
• filler

  Poly bag + inner box + carton
  Delivery time

  7-15 Davs
• Minimum order quantity

  one item
  OEM/ODM

  Add
• equipment

  Three-axis, four-axis, and five-axis machining center

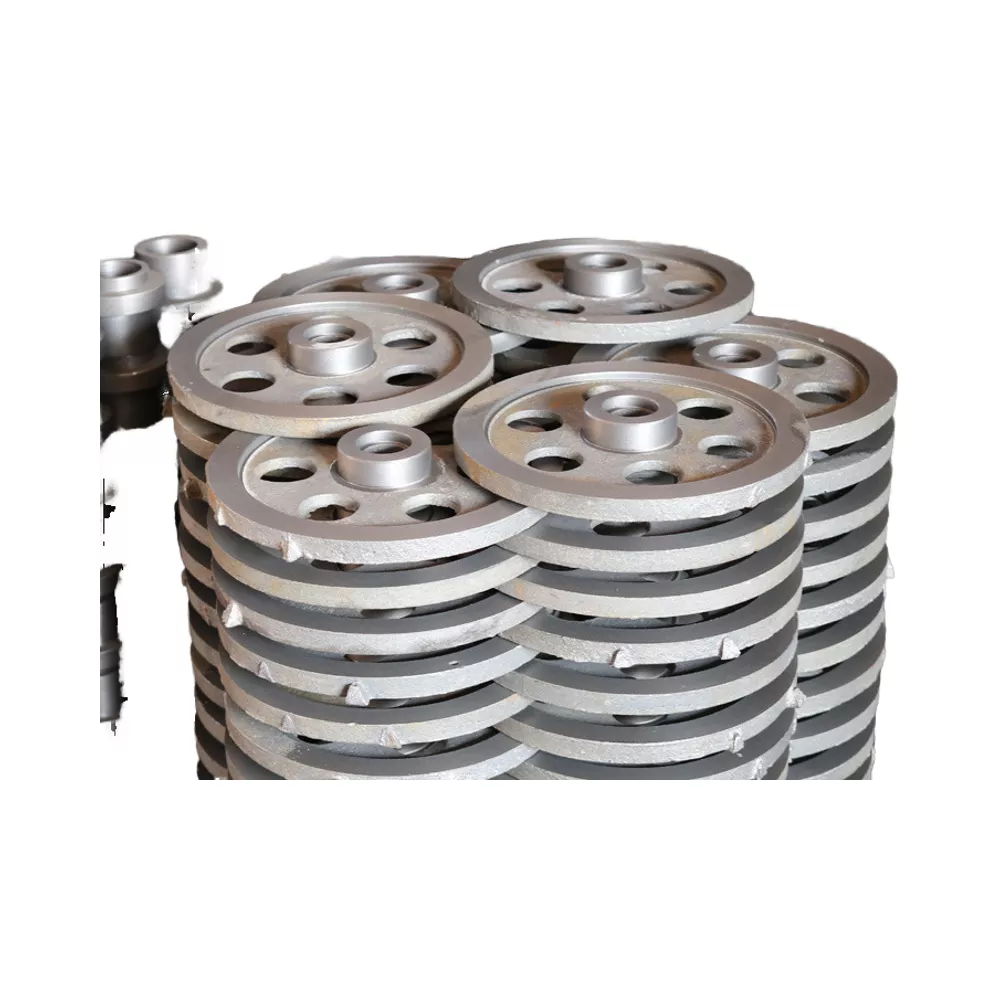

Stacked bored flanges with fixing holes and raised central regions provide the component reference. Select one flange drawing; the photograph does not establish a particular flange standard, pressure class or stainless grade.

Control the bore and mounting face together

A shared datum makes the raised center and outer fixing pattern inspectable. Define the fitted surfaces and clearances for the selected flange.

• Locate the bore axis and raised central feature.
• Set face relationships and fixing-hole positions.
• Identify any broached or laser-processed feature.
• Specify actual alloy, blank and machining stock.
• Attach the flange revision in PDF/CAD or IGES/STEP form.

Assign the CNC inspection requirements

Drilling and milling should follow feature-level limits and measurement methods. Define sealing or fitted surfaces explicitly rather than treating every visible face as functionally identical.

Agree the individual flange order

Confirm compatible finishing, quantities and delivery. Any duty, standard-compliance or pressure requirement needs its own acceptance evidence; generic factory-supply wording cannot establish those conditions.

Our Custom Precision Stainless Steel CNC Machining Services offer high-quality, factory-direct solutions for your specialized metal component needs. Utilizing advanced three-axis, four-axis, and five-axis machining centers, we deliver exceptional accuracy and repeatability for complex parts.

We provide a wide range of machining processes including laser drilling, milling, broaching, turning, etching, and chemical machining. Our capabilities with aluminum, brass, bronze, copper, hardened metals, precious metals, and stainless steel ensure versatility to meet diverse industry requirements.

Our micromachining services are ideal for high-precision, small-sized components, with options for surface treatments such as anodizing and polishing for enhanced durability and appearance. We support both OEM and ODM projects, and customers can provide drawings in 2D PDF/CAD or 3D IGES/STEP formats.

Each product is securely packed with poly bag, inner box, and carton to ensure safe delivery. Fast turnaround times of 7 to 15 days and a low minimum order quantity of one item make us the preferred partner for customized CNC machined parts.
