Custom Sheet Metal Laser Cutting and Stamping Fabrication for Mounting Brackets with Folded End Flanges
-
Model NumberBProduct nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing

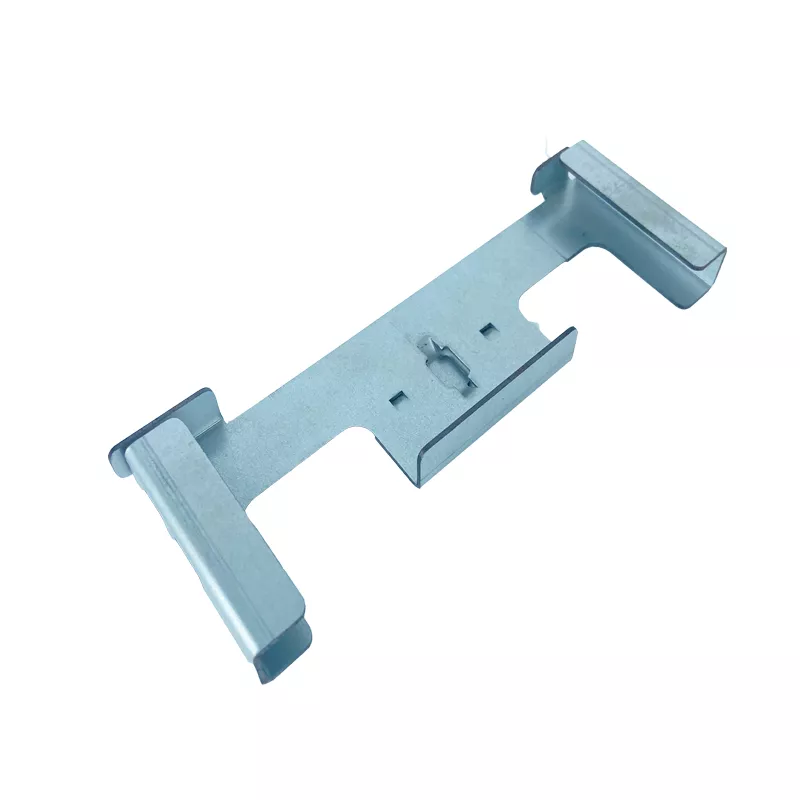

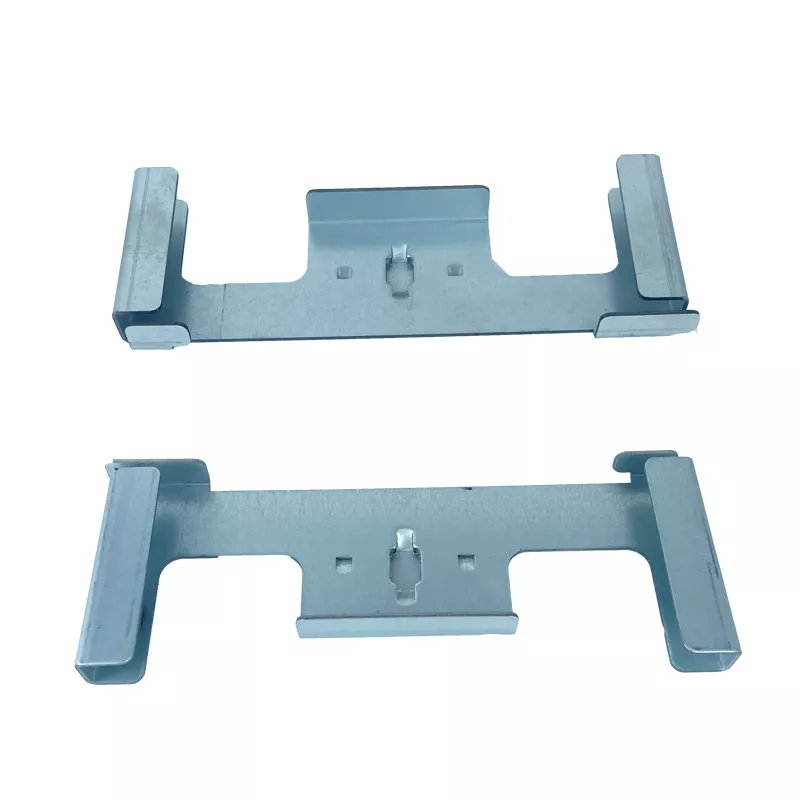

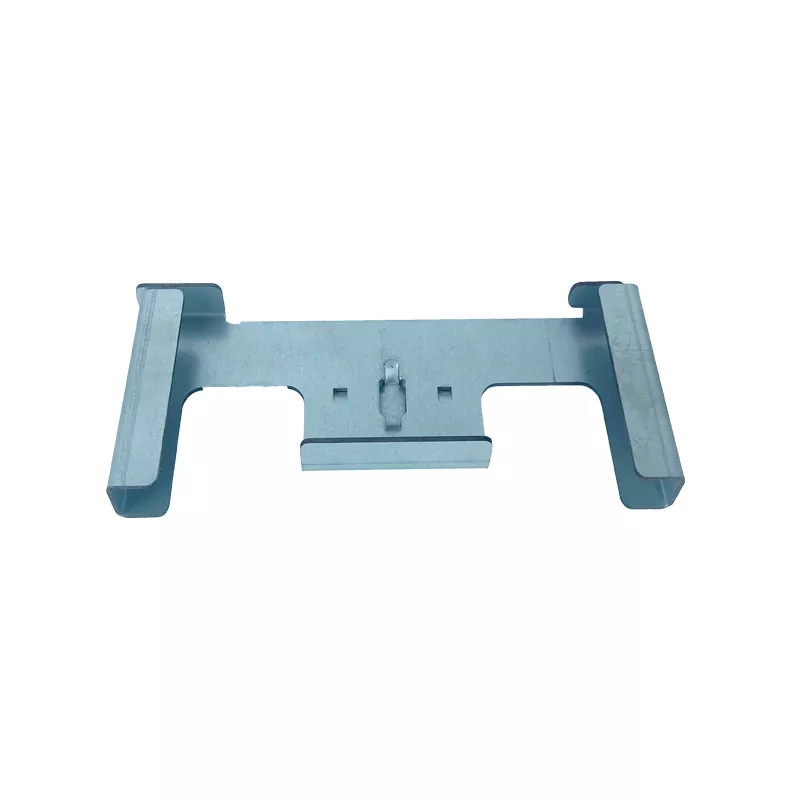

This long bracket example has turned end flanges, a central strip with side cutouts and small raised tab features. Its stepped outline illustrates the component form for this custom sheet metal laser cutting and stamping fabrication listing. Model B covers custom components for electronics.
Specify the formed outline
Dimension the central strip and each end section, including flange heights, fold positions and cutout profiles. If a small tab locates or retains an adjoining part, show that mating feature and the clearance required. The finished geometry, rather than the photograph alone, defines how the bracket is fitted.
Provide the metal designation and sheet thickness with the drawing. Powder coating is the listed finishing service, with black, white and custom colors available for specification in the order.
Send the component drawing
STEP, STP and PDF are listed accepted formats. The recorded minimum order quantity is 100, with individual packing. Include the drawing revision and quantity, plus any forming or edge requirements that affect assembly. Mark the dimensions used for final inspection.
