Model NumberS2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

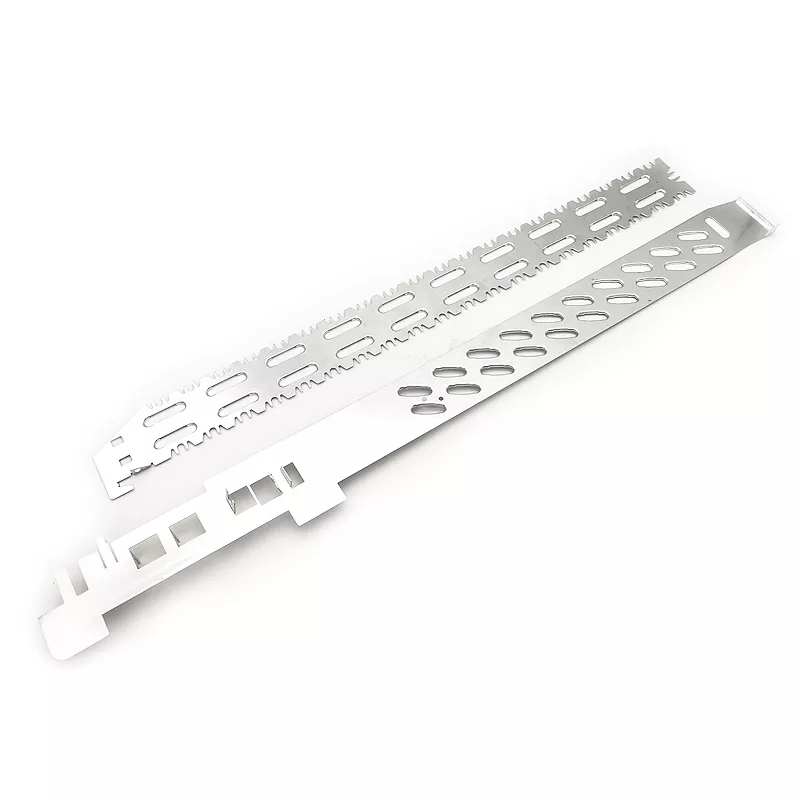

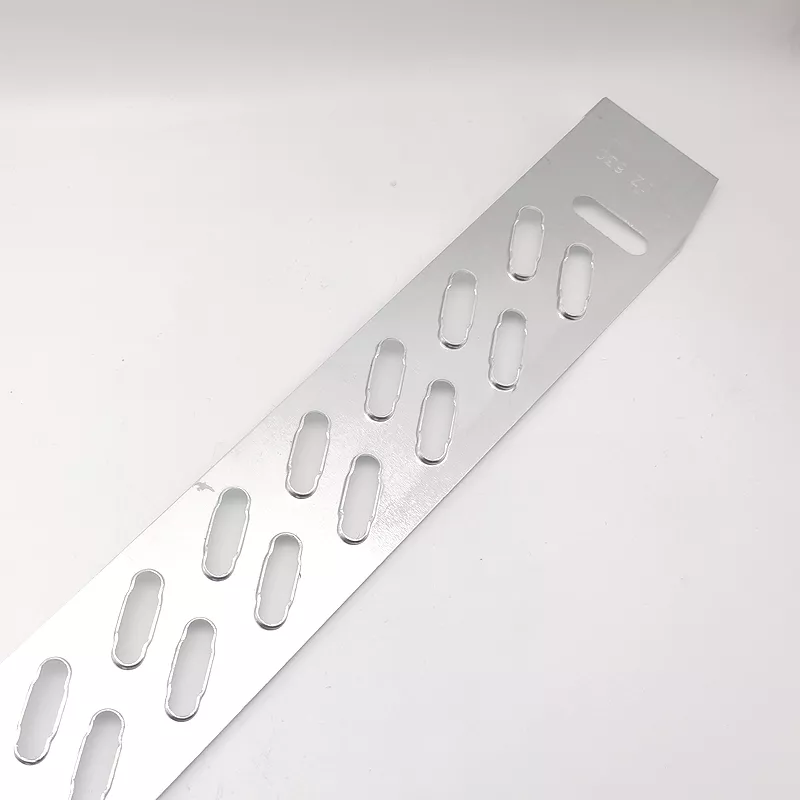

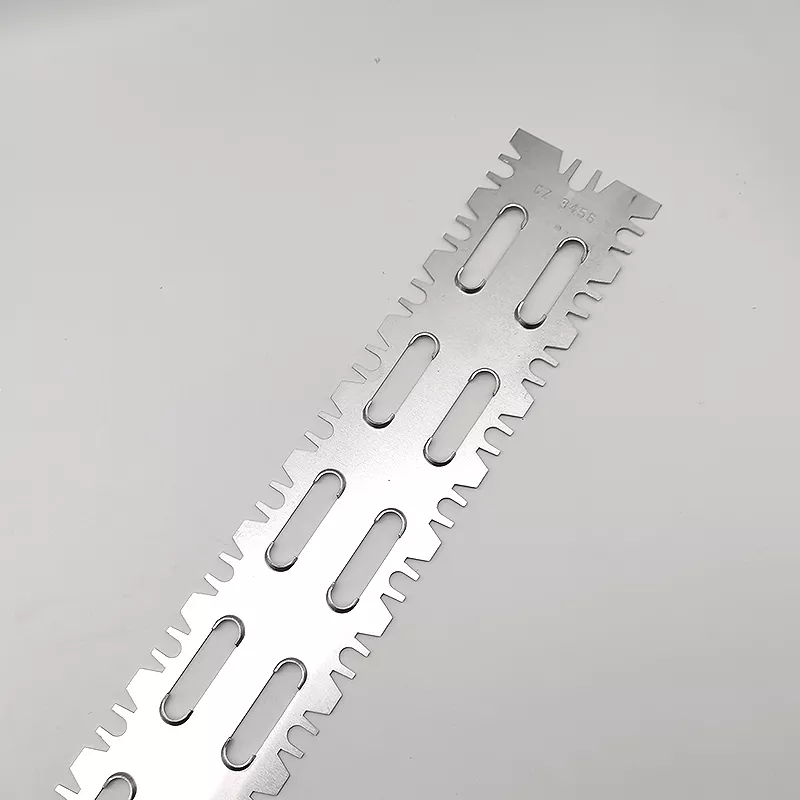

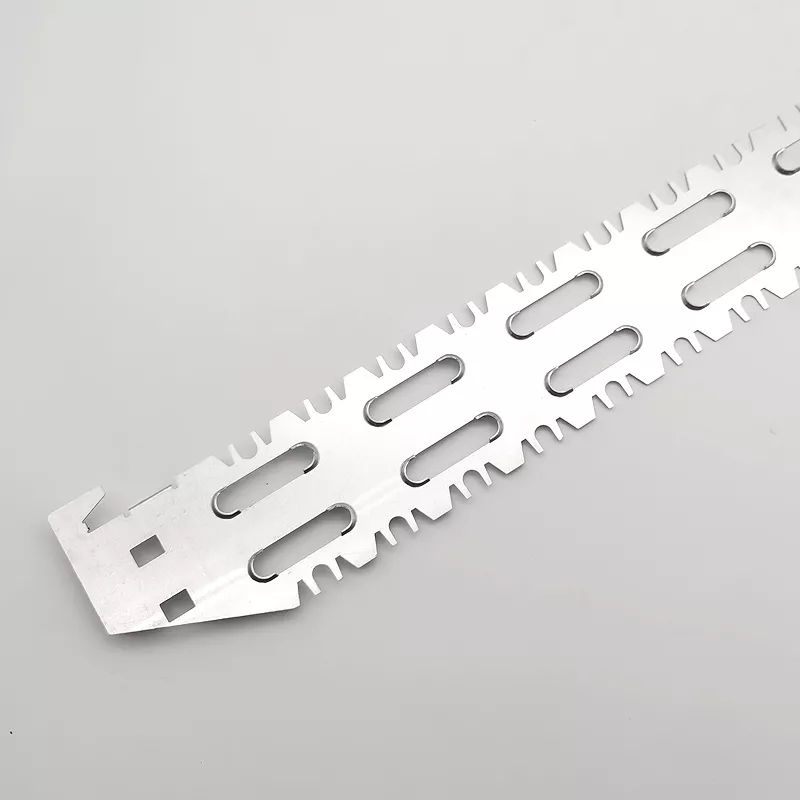

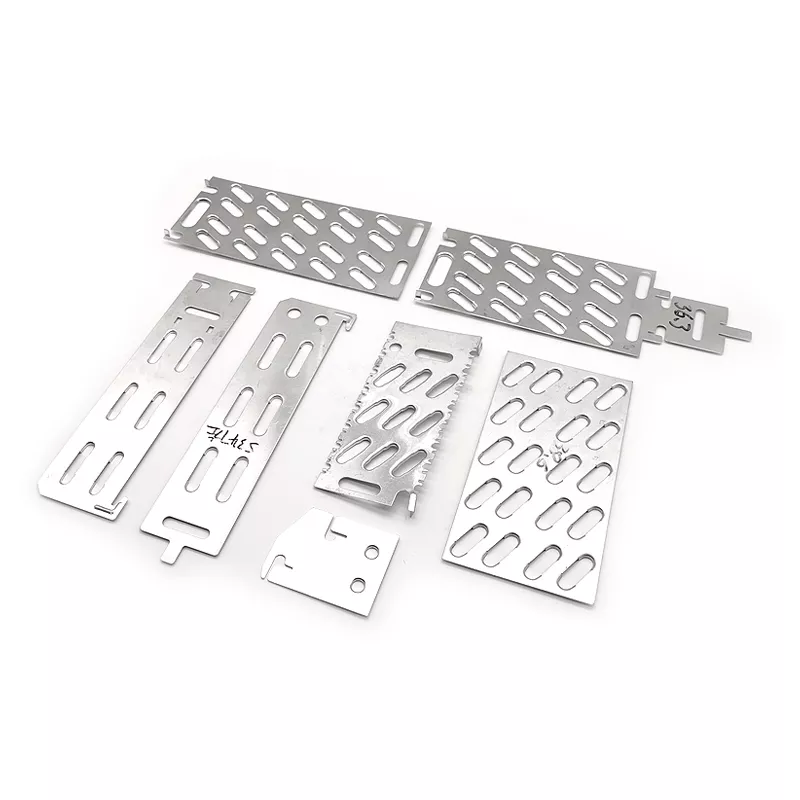

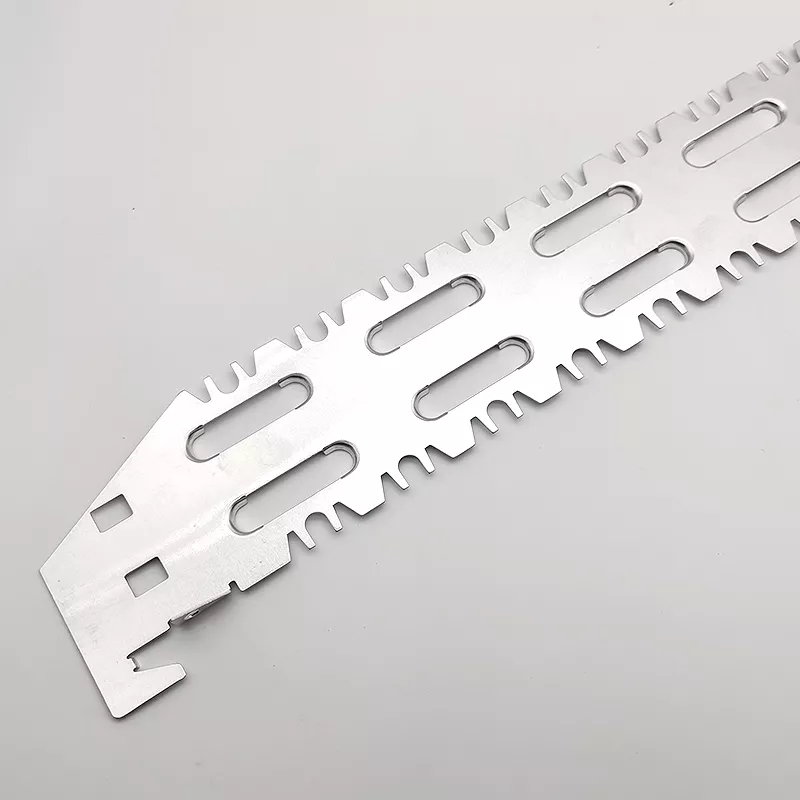

The retained range shows narrow sheet-metal forms with repeated elongated slots, fixing holes and projecting end tabs. Define the opening pattern and end connections from a common datum, identifying each strip by its own drawing.
Dimensions before and after forming
State the selected metal and thickness, with any bends or raised tab features. Mark the finished dimensions required after cutting and stamping, including the edge condition around openings used by fasteners or mating parts.
Provide quantities, surface treatment and drawing revision. Include inspection requirements for slot spacing, hole positions and end interfaces. Similar strips elsewhere in the catalog do not establish a different length or configuration, and a general material list does not verify the alloy of an individual example.
