Custom Aluminum and Stainless Steel Sheet Metal Stamping Bending Parts with Enclosure and Internal Bracket Features
-
Model NumberS240301 2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

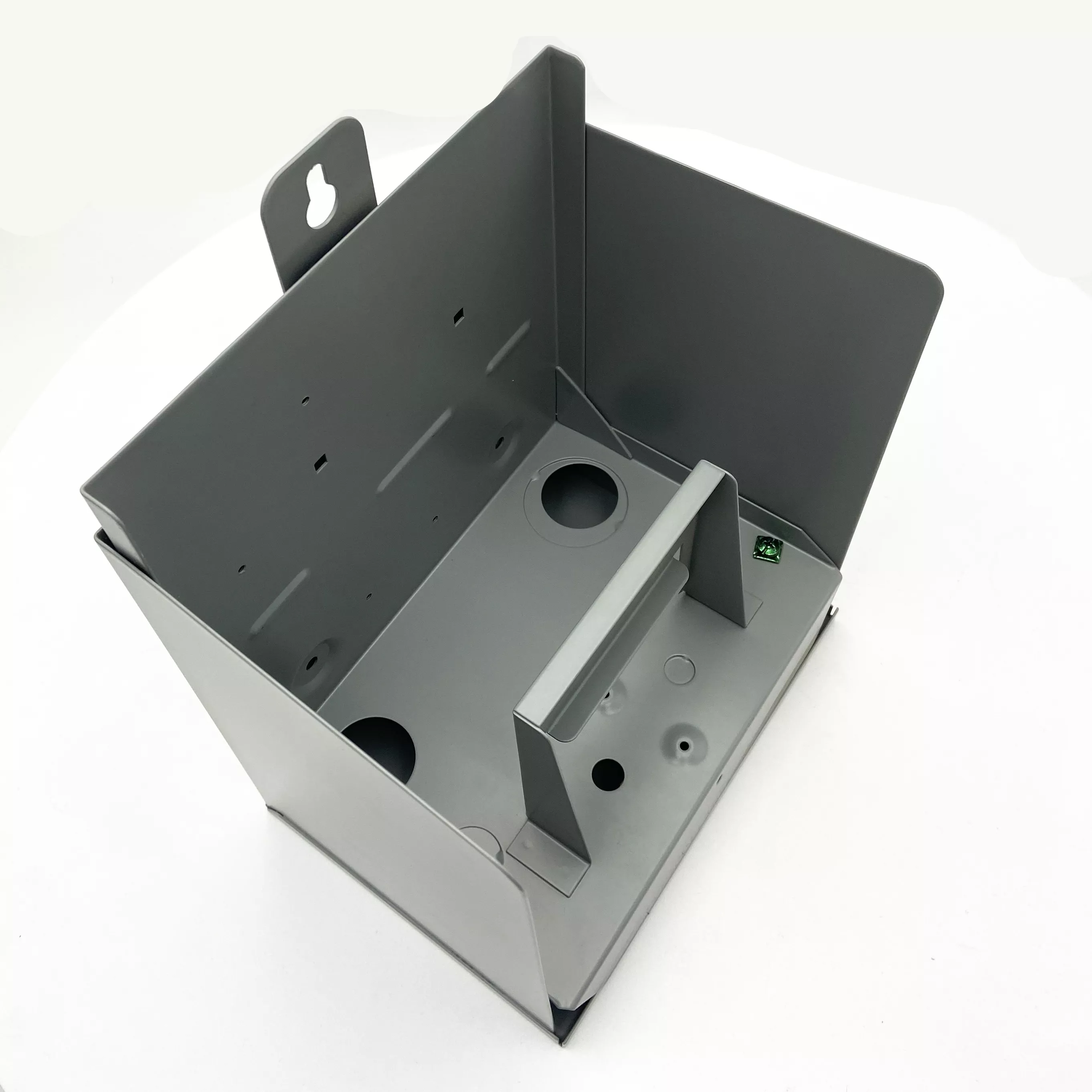

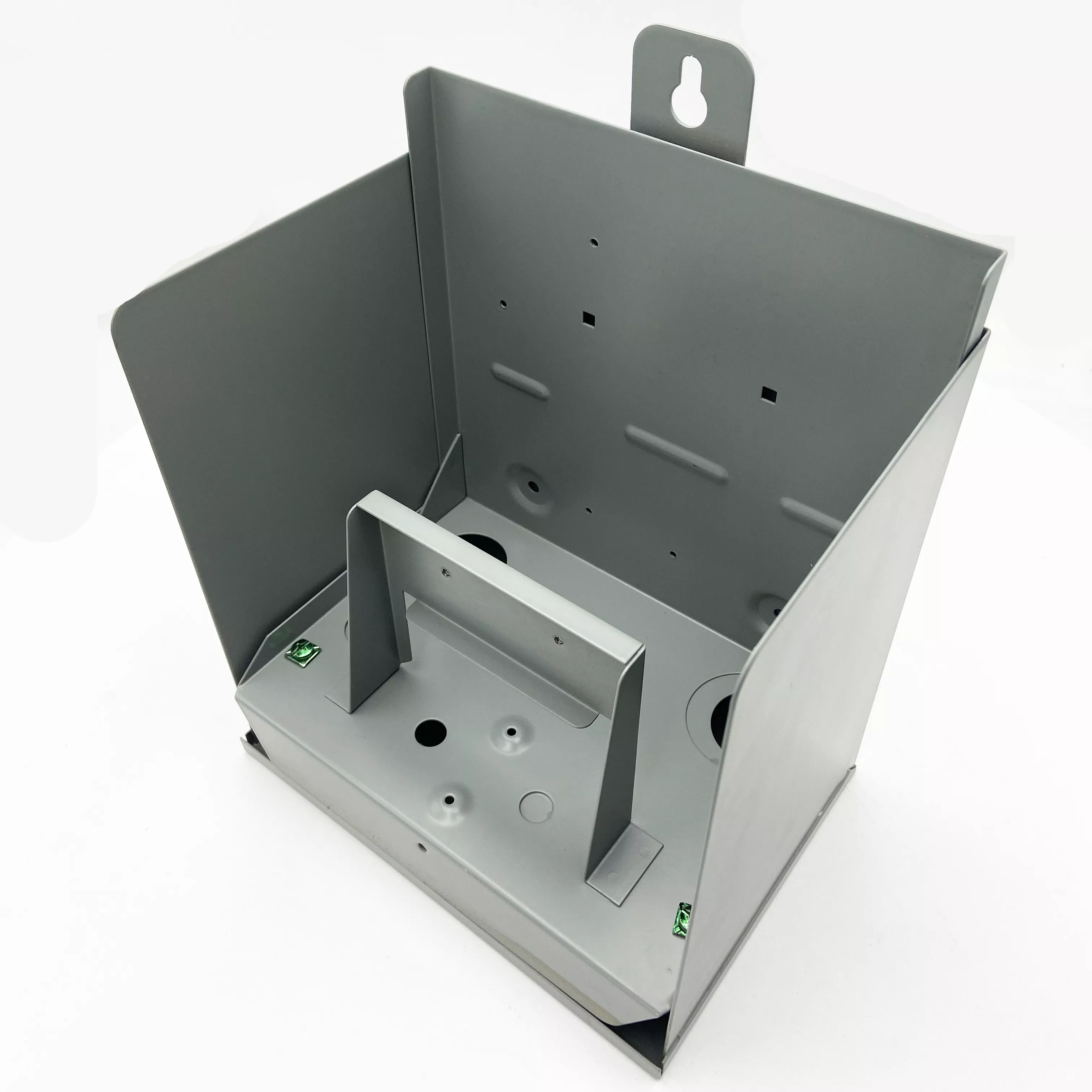

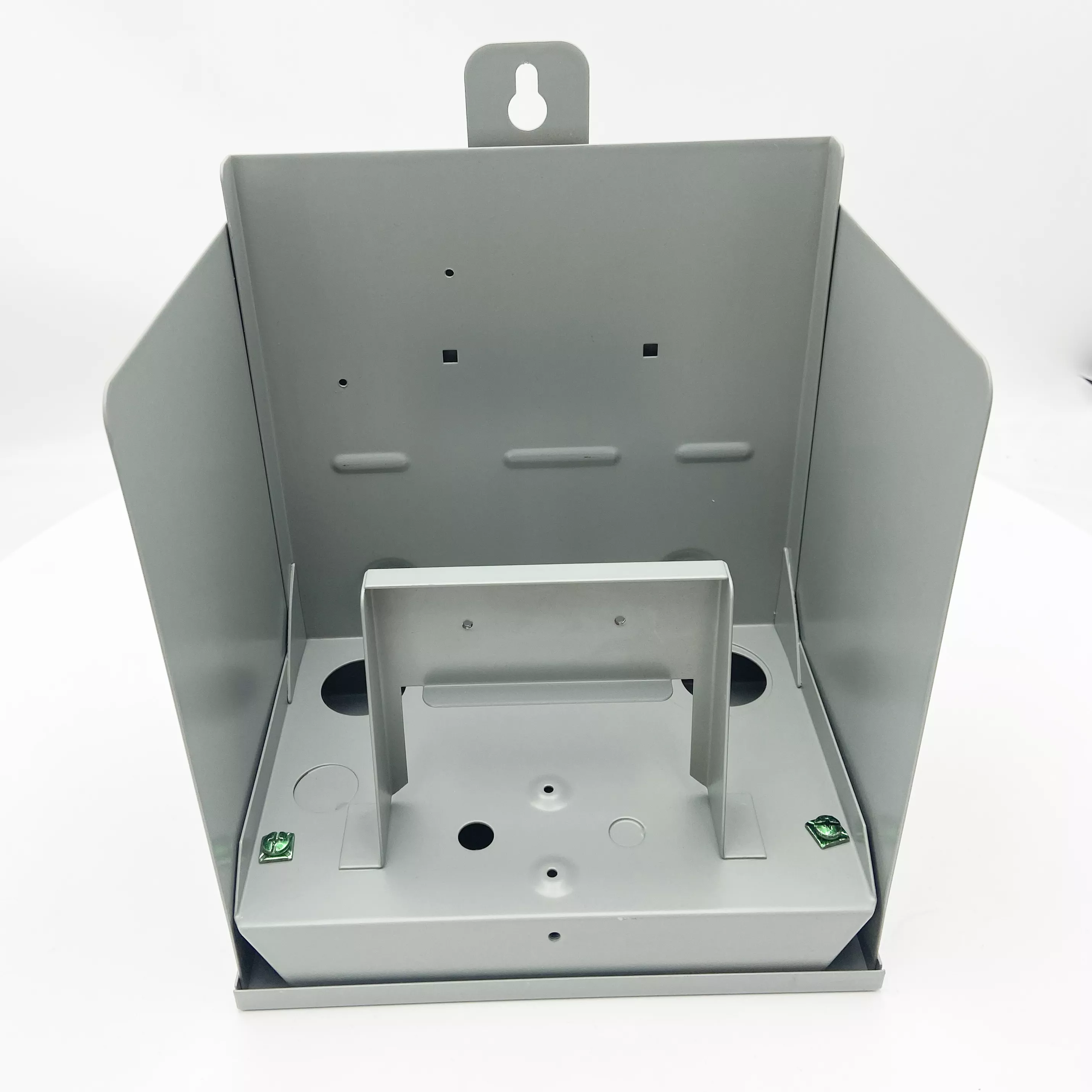

S240301 2407R custom sheet metal work includes the illustrated enclosure form with folded side walls, mounting openings and an internal bracket. The example also shows separate fastening features. Identify the complete component scope and the internal space required for the intended assembly.
Enclosure layout
Define the outer envelope, openings in the base and the mounting points in the rear face. Show the internal bracket's location and the clearance around it. Drawings should identify separate pieces and the connections required between them, including which fasteners or inserts are part of the order.
Listed materials include steel, aluminum, copper, stainless steel 316 and brass. Laser cutting, bending, stamping, drilling and assembly appear in the source manufacturing information. Select the actual material and the operations needed for the chosen design.
Finishing and acceptance
Specify painting, powder coating, plating or polishing by surface and material. Provide the current 2D/3D files and quantities, together with inspection criteria for mounting interfaces and internal clearances. Any electrical or environmental approval needs evidence for the ordered enclosure configuration.
