Custom Sheet Metal Fabrication for Square Open Housings with Mounting Flange Plates
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS2405-2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly
Square opening, mounting flange and assembly height

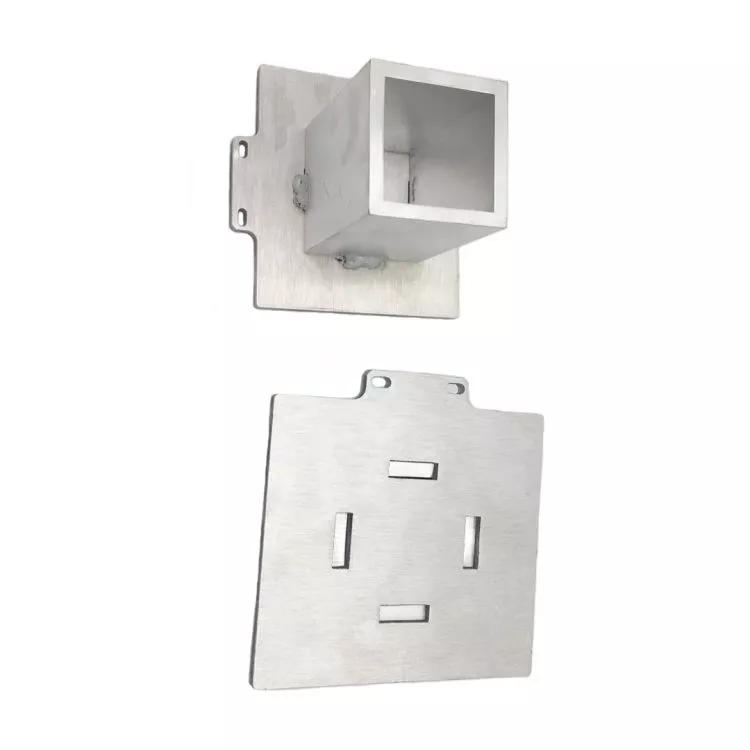

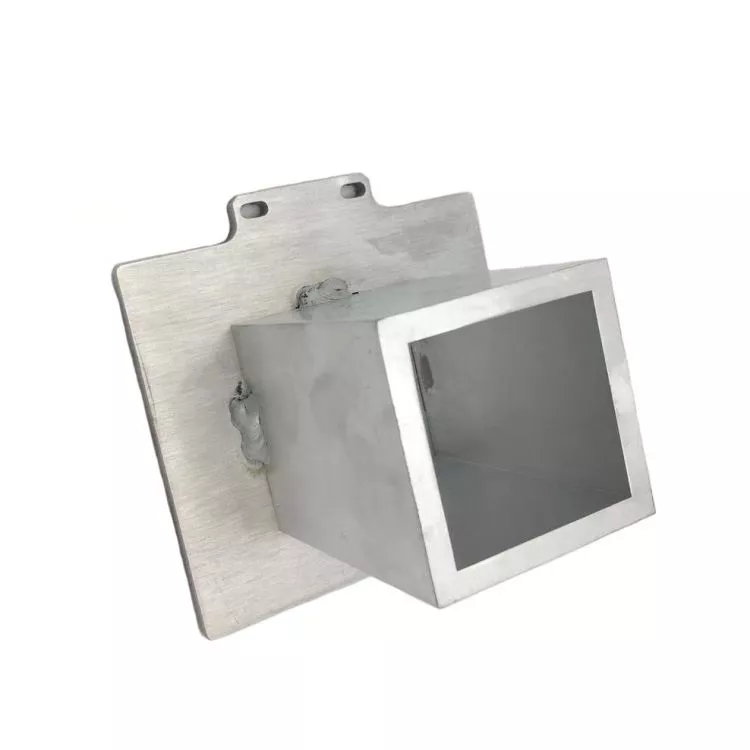

The illustrated assembly has an open square section standing on a flat flange plate. The flange includes mounting openings and edge reliefs. Describe the required clear opening, overall height and flange outline as a coordinated set of dimensions.
What belongs on the drawing?
- The wall and flange thicknesses, selected metal grade and joint details.
- The hole pattern, edge clearances and surfaces used to locate the assembly.
- The required finish and the condition of the inside opening.
Steel, aluminum, copper, 316 stainless steel and brass are listed material capabilities for custom enquiries; they are not a material identification for the sample. Provide CAD/DWG/PDF drawings or STEP/IGS geometry and identify any drilling or assembly operations needed. State quantities and inspection requirements without assuming a load, sealing or pressure rating from the photograph.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
