G101-D 21.3mm Short Tee Key Clamp Fitting Enquiries | Malleable Iron ASTM A197 and Steel Options
-
warranty1 yearcustomized supportOEM
-
model numberG101-DTechnicCasting
-
Connectivitytube clamps connected by screwsshapeEqual
-
head coderoundProduct namemalleable iron Key Clamp Pipe Fittings
-
Materialmetal, Malleable Iron by Standard ASTM A197Standard or NonstandardStandard
-
UsagePipe Clamps, connect with the tubesStructureT CLAMP/Suspension Clamp, Swivel Clamp
-
Keywordkey clamp pipe fittingSize AvailableT-E(21.3-60.3mm)
-
SurfaceBlack, Galvanized, Powder Coating Malleable Iron Pipe ClampsTypeElbow/Tee/cross/coupling and so on
-
CertificationISO9001:2015

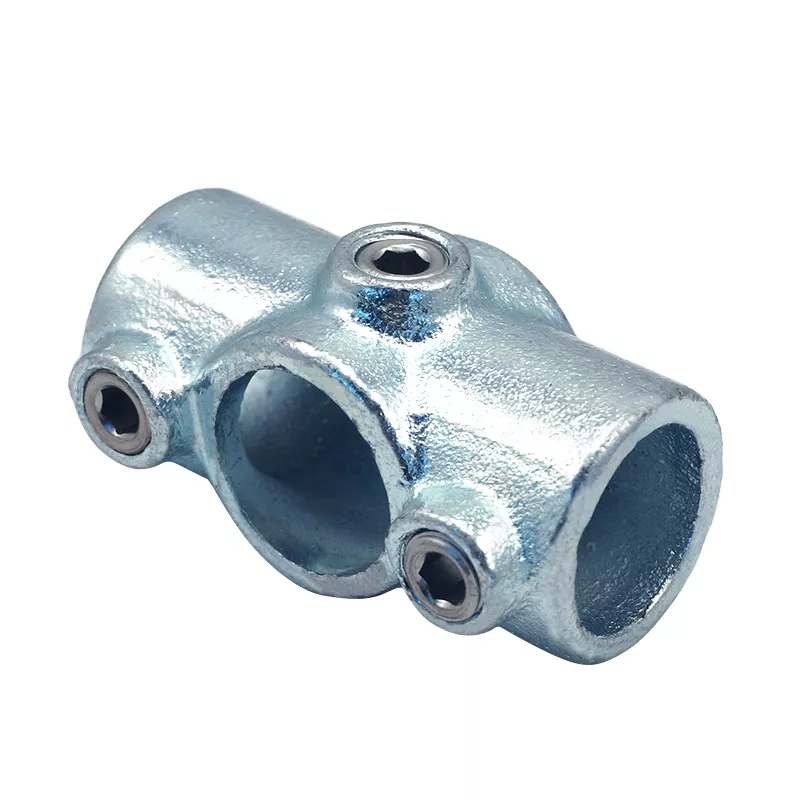

Define the G101-D short-tee tube connection required for the project. The reflective multiway connector has visible set screws; the image alone does not establish actual bore diameter, material grade or load capacity.
Match the selected tube and screw engagement
The nominal 21.3mm title and 21.3–60.3mm range need confirmation against actual tube outside diameter and wall. Options also list 10mm, 12mm, 14mm, 30mm and 50mm; they are not verified interchangeable connections.
- Select the tee geometry and tube drawing.
- Confirm actual outside diameter and clamping bore.
- Specify malleable iron or separate steel material.
- Dimension screw engagement and installation contacts.
- Agree finish, load criteria and inspection evidence.
Resolve material and finish references
ASTM A197 malleable iron and stainless or carbon steel options require actual selected specifications. Define black, galvanized or powder-coated finish separately for the intended environment.
Require evidence for structural use
EATHU and ISO9001 references do not establish current Relia certification or approved barrier or suspension capacity. Installation loads, tightening requirements and safety acceptance need relevant design and component records.
The EATHU G101-D 21.3mm Short Tee Pipe Clamp Fittings are expertly crafted from high-quality malleable iron, ensuring durability and excellent mechanical strength for industrial and commercial pipe installations.
Each key clamp is manufactured according to ASTM A197 standards and features a robust structure for secure tube connections using screws, making assembly quick and reliable.
Our malleable iron pipe fittings are suitable for various applications, including frameworks, railings, and safety barriers. They come in multiple surface finishes such as black, galvanized, and powder coating, meeting the demands of different environments.
Certified with ISO9001 2015, these short tee fittings are available in sizes from 21.3mm to 60.3mm and support OEM customization, providing versatile solutions for your project needs.
