Custom Aluminum Sheet Metal Rapid Prototype and Stamping Fabrication Parts with Formed Bracket Geometry
-
Model NumberDmetalProduct nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing

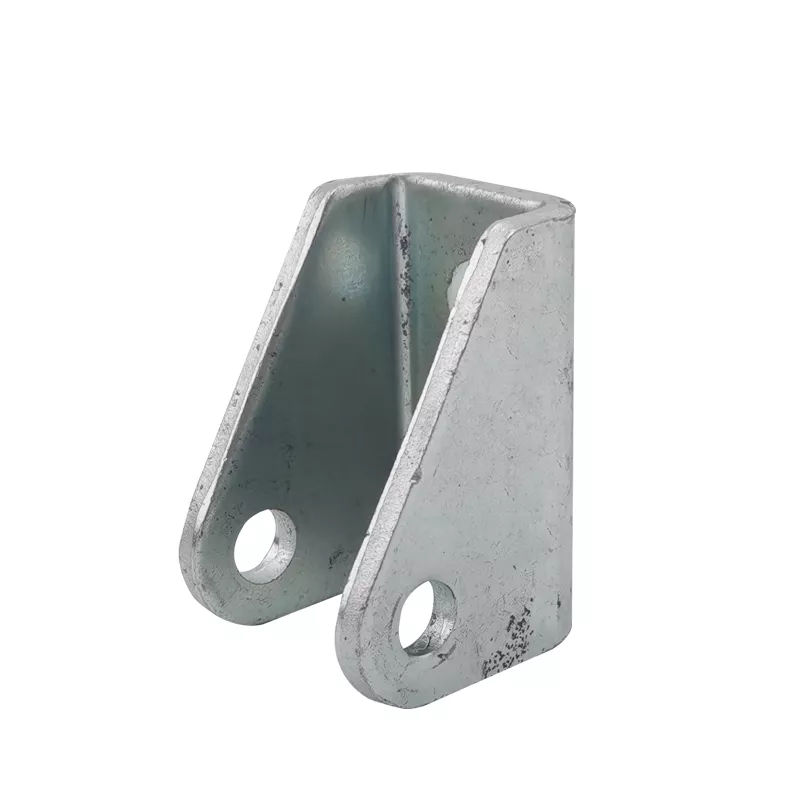

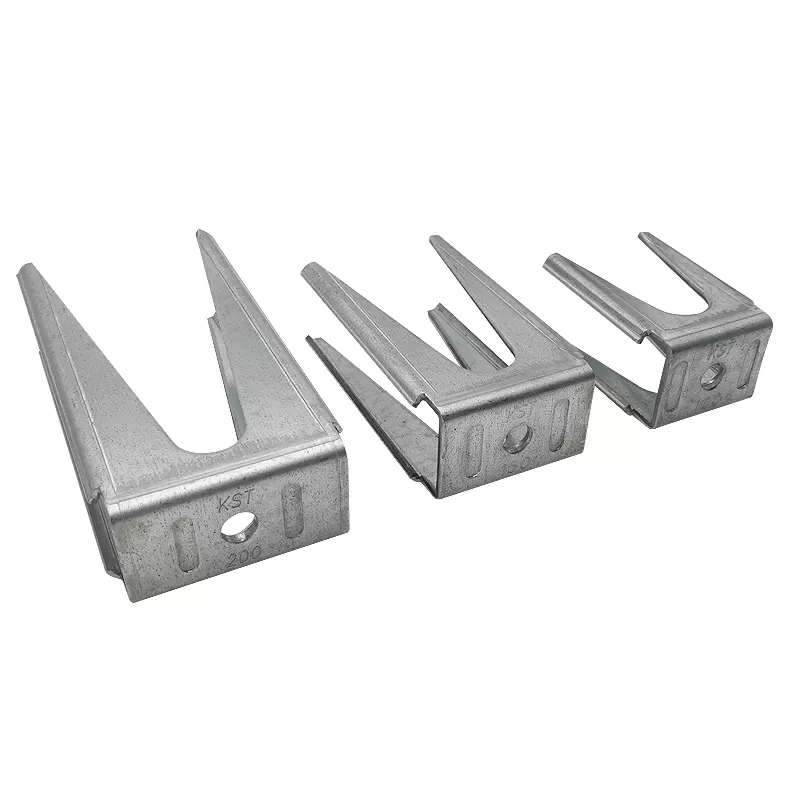

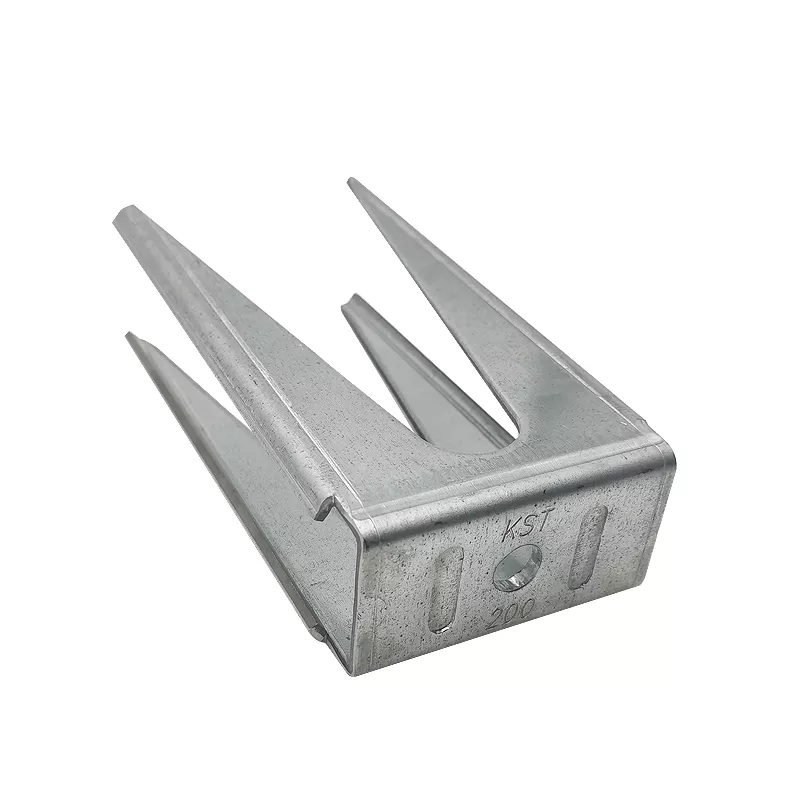

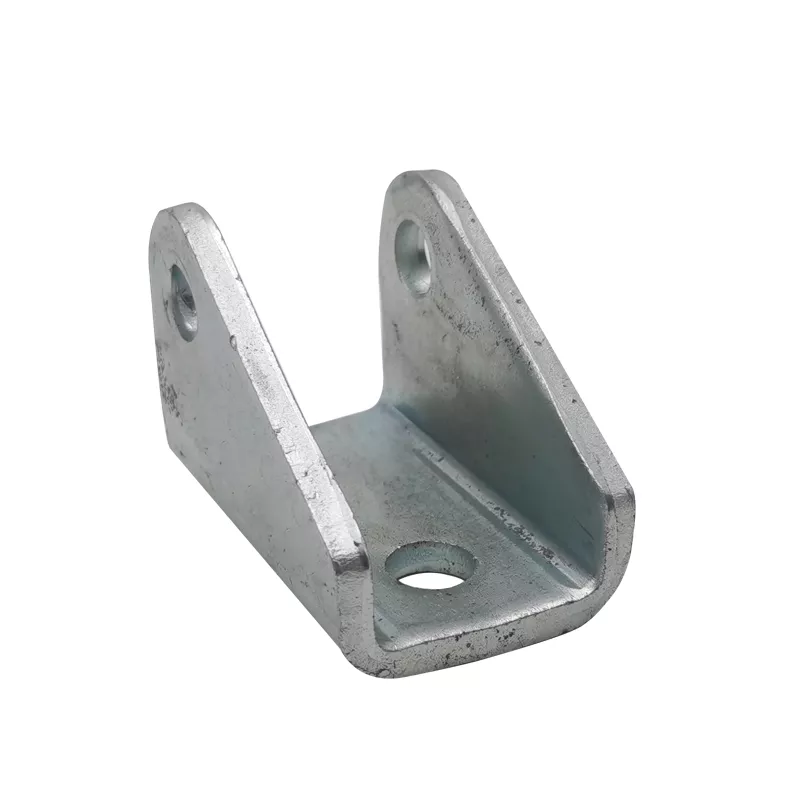

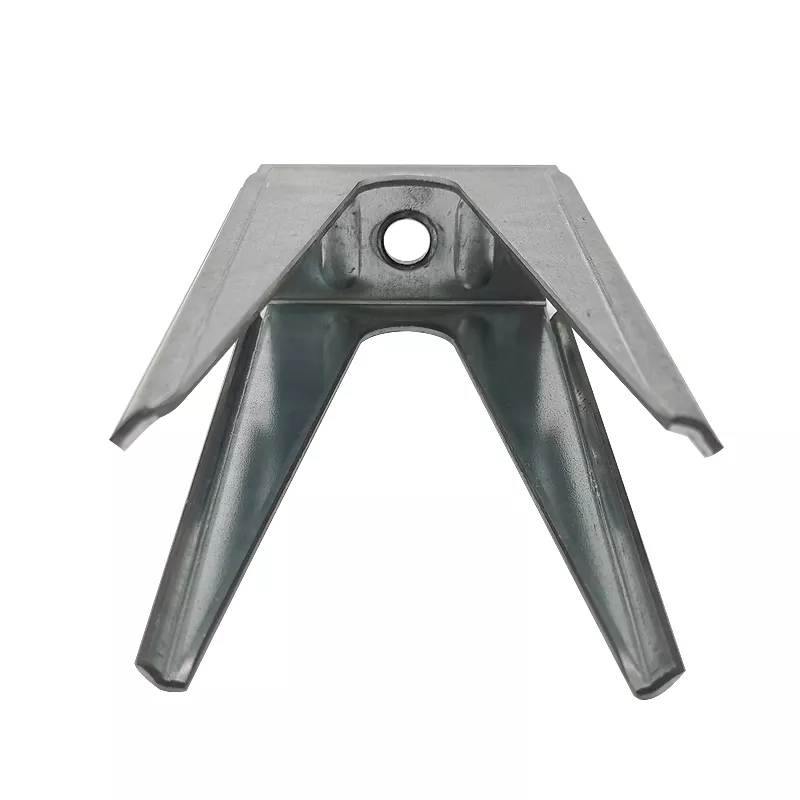

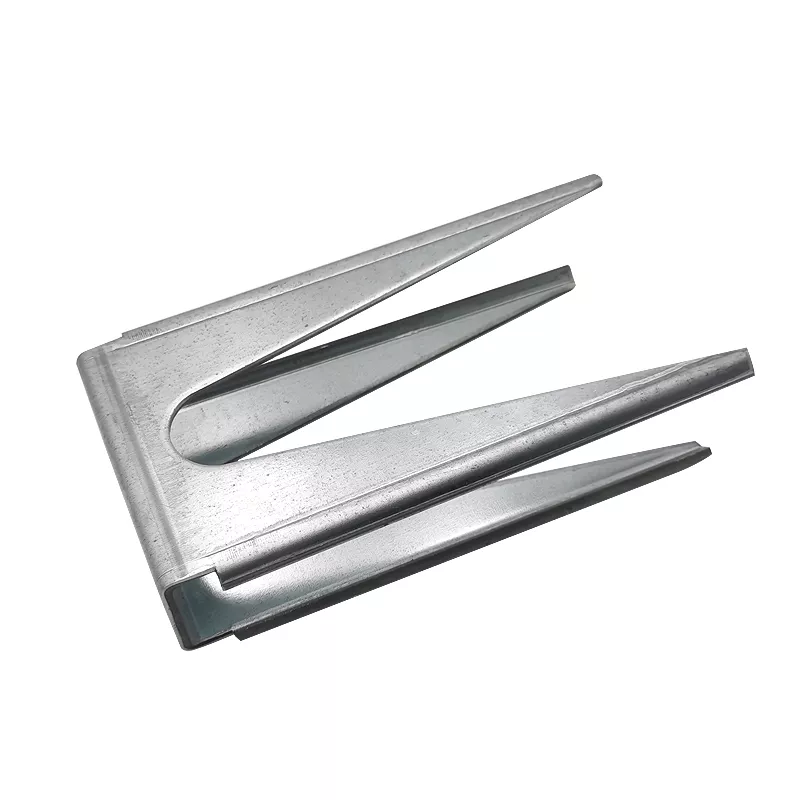

This custom sheet metal fabrication listing illustrates a bracket with angled wings, formed side sections and a central mounting opening. Prototype and production requests should identify the same drawing-defined geometry. Aluminum is named in the listing; provide the ordered grade and thickness with the design brief.
Define the formed bracket
Show the outline, bend arrangement and mounting-hole position from the assembly references. Include the mating component where it establishes clearance between the formed sections. Identify dimensions that need inspection after forming and any separate pieces included in the order.
Powder coating is the listed surface finish, with black, white and custom colors. Specify the requested condition and any surfaces needing a different treatment. The pictured metallic appearance should not be used as a complete finish specification.
Prototype and quantity review
Send PDF and STEP/STP documentation with matching revision and the required schedule. The listed minimum is 100 pieces, so confirm any prototype requirement and actual delivery proposal before planning the project. Include inspection criteria and individual-packing requirements for the bracket.
