Custom Aluminum and Stainless Steel Sheet Metal Laser Cutting Bending and Stamping Mounting Base Panels
-
Model Number2212 2407RMaterialsteel, stainless steel, aluminum
-
SizeCustomized sizeApplicationMachinery/Industry/car
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
PackingCartonTypeOEM Parts
-
EquipmentCNC Bending/Stamping Machine

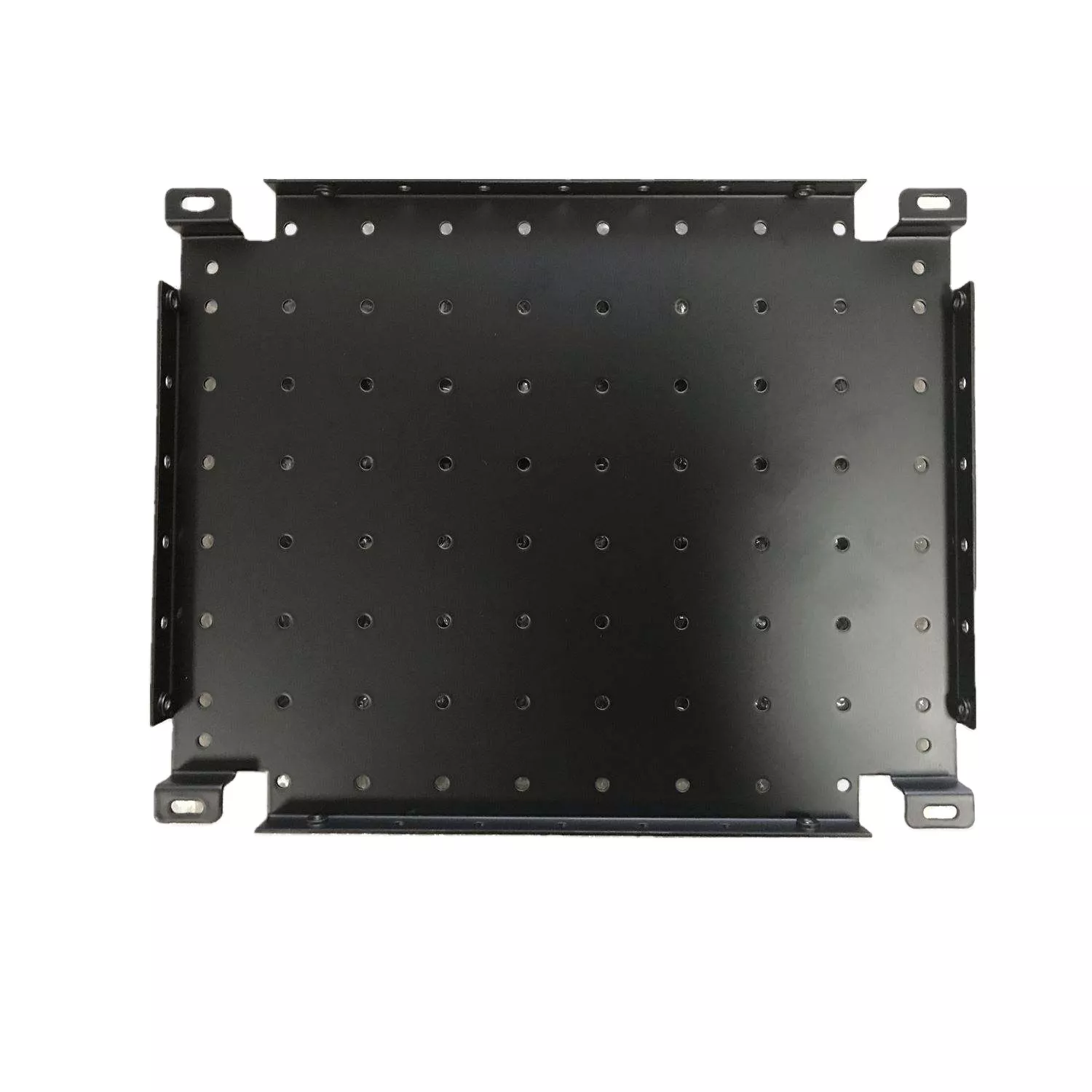

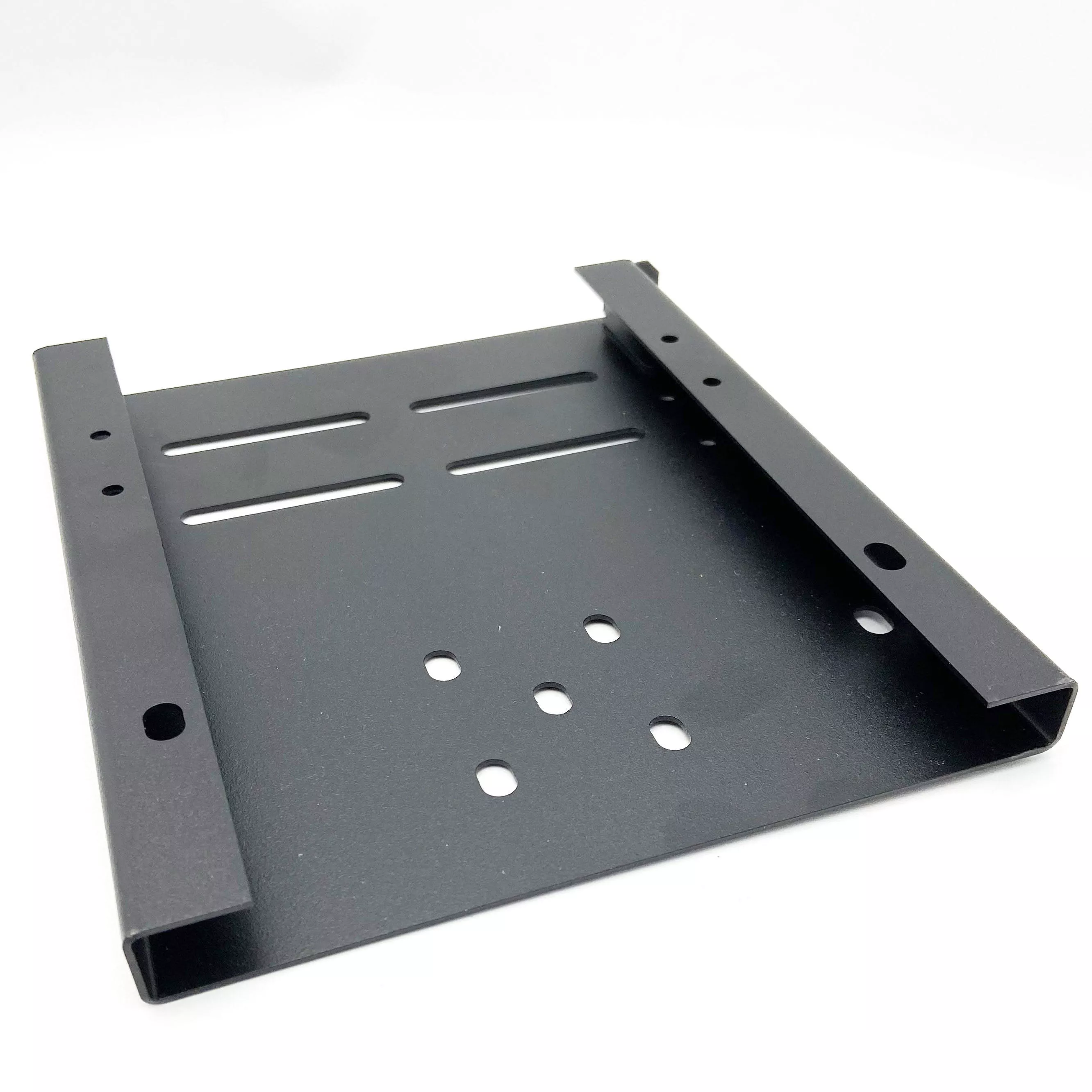

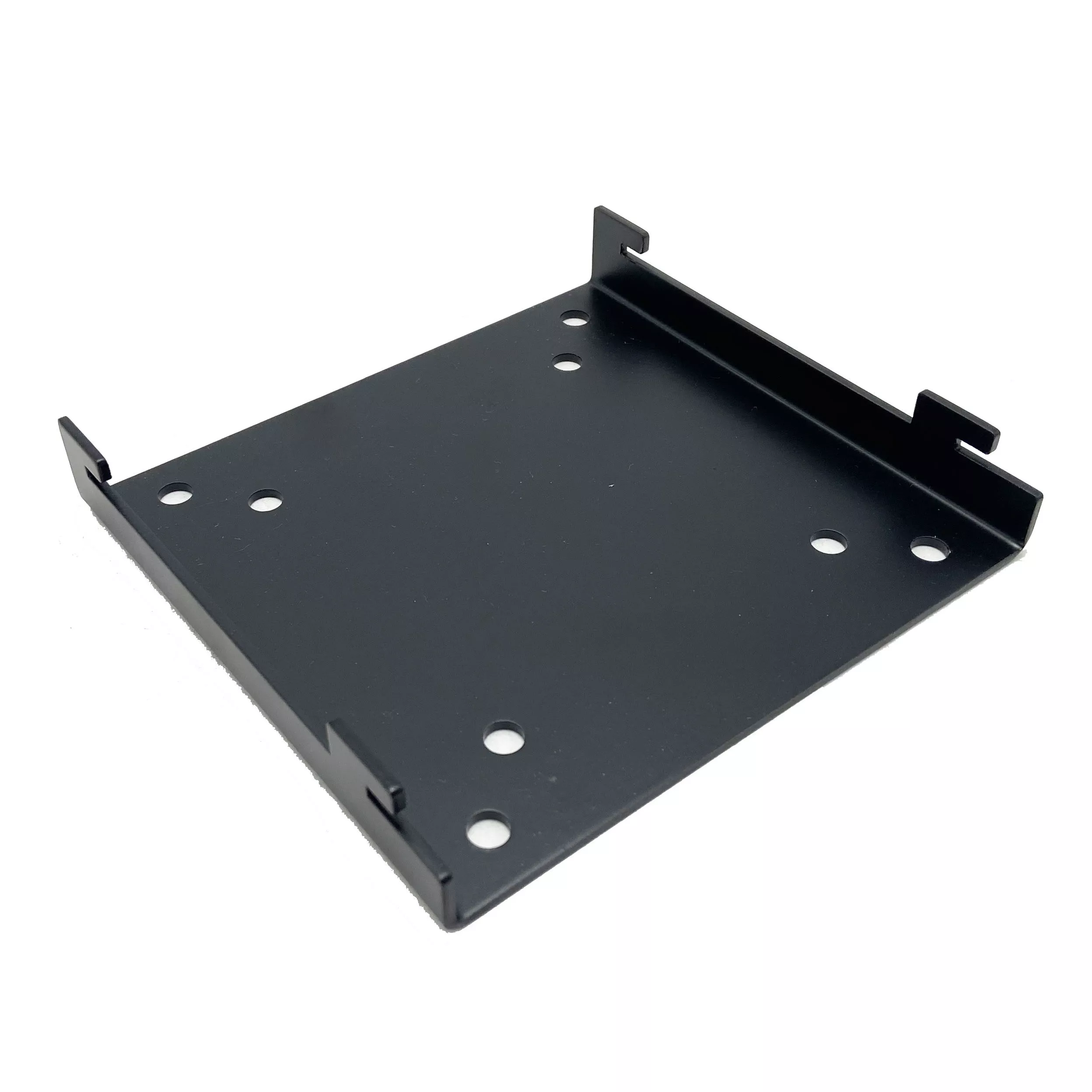

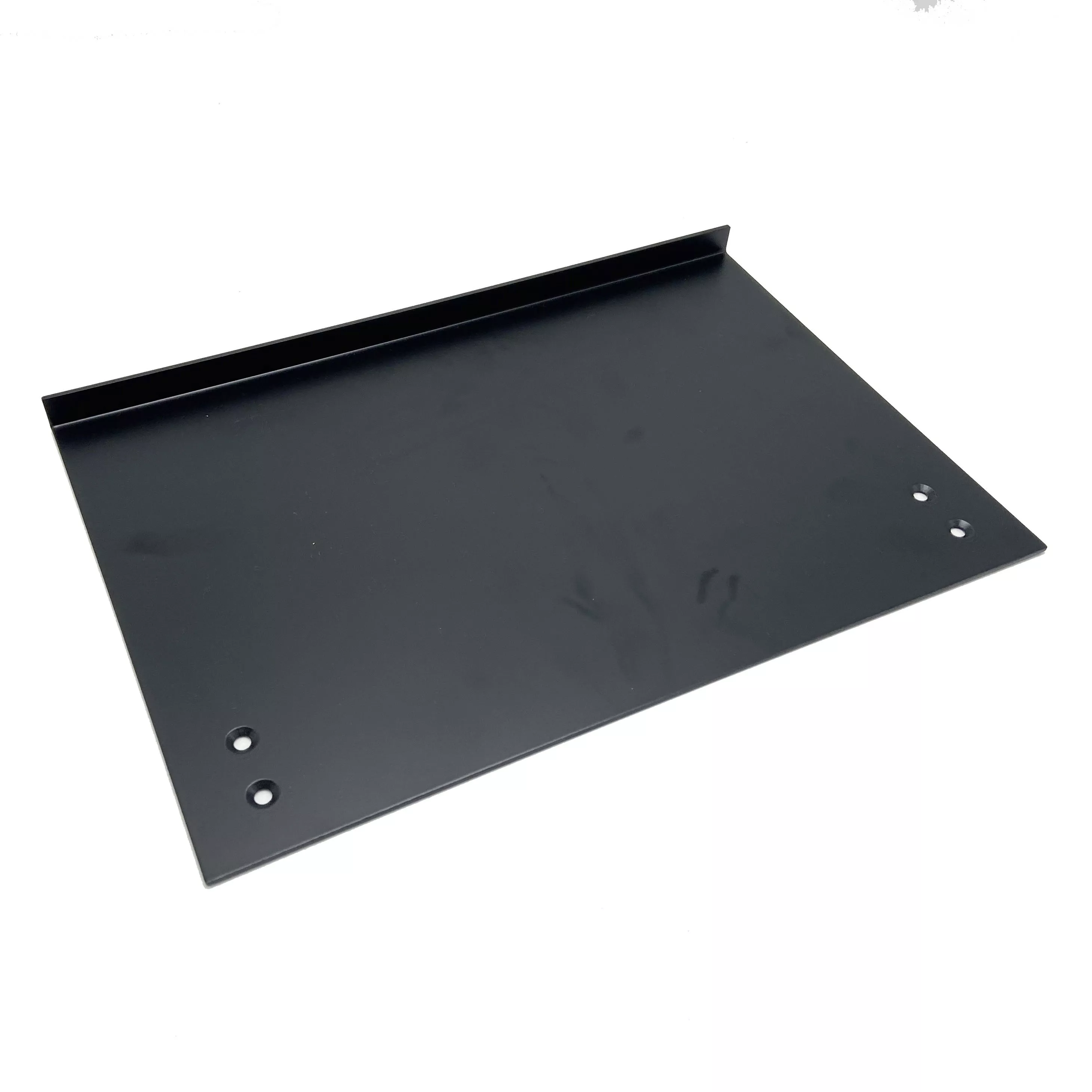

Model 2212 2407R custom sheet metal fabrication enquiries include the illustrated base panel with bent edges, upright tabs and several mounting holes. These features define the panel's installation interfaces. Steel, stainless steel and aluminum are listed materials, with customer-defined size and color.
Base panel and edge features
Provide the outer dimensions, sheet thickness and the position of each hole relative to the panel references. Show the upright tab profiles and the clearance required around them. Dimensions involving bent edges should identify the required finished condition so that the mounting arrangement can be reviewed accurately.
The listing names laser cutting, bending and stamping work, with CNC bending and stamping equipment in the manufacturing information. Agree the operations needed for the selected drawing and define the required surface finish for the chosen metal.
For an OEM quotation
Send the current drawing, quantities and mating-part information. Mark critical mounting dimensions and visual requirements for inspection. Confirm whether the supply is the base panel alone or includes companion components, and specify packing protection for projecting tabs and finished edges.
