Custom Aluminum Steel Sheet Metal Laser Cutting and Stamping Parts | Slotted Open Frames

• Model Number

  2305 2407R
  Material

  steel, stainless steel, aluminum, galvanized steel,
• Size

  Customized size
  Application

  Machinery/Industry/Home/Automotive
• Color

  Customized Color
  Process

  Stamping
• Service

  Customized OEM
  Usage

  Precision Metal Stamping Product
• Type

  OEM Parts
  Equipment

  CNC Bending/Stamping Machine/Laser Marking

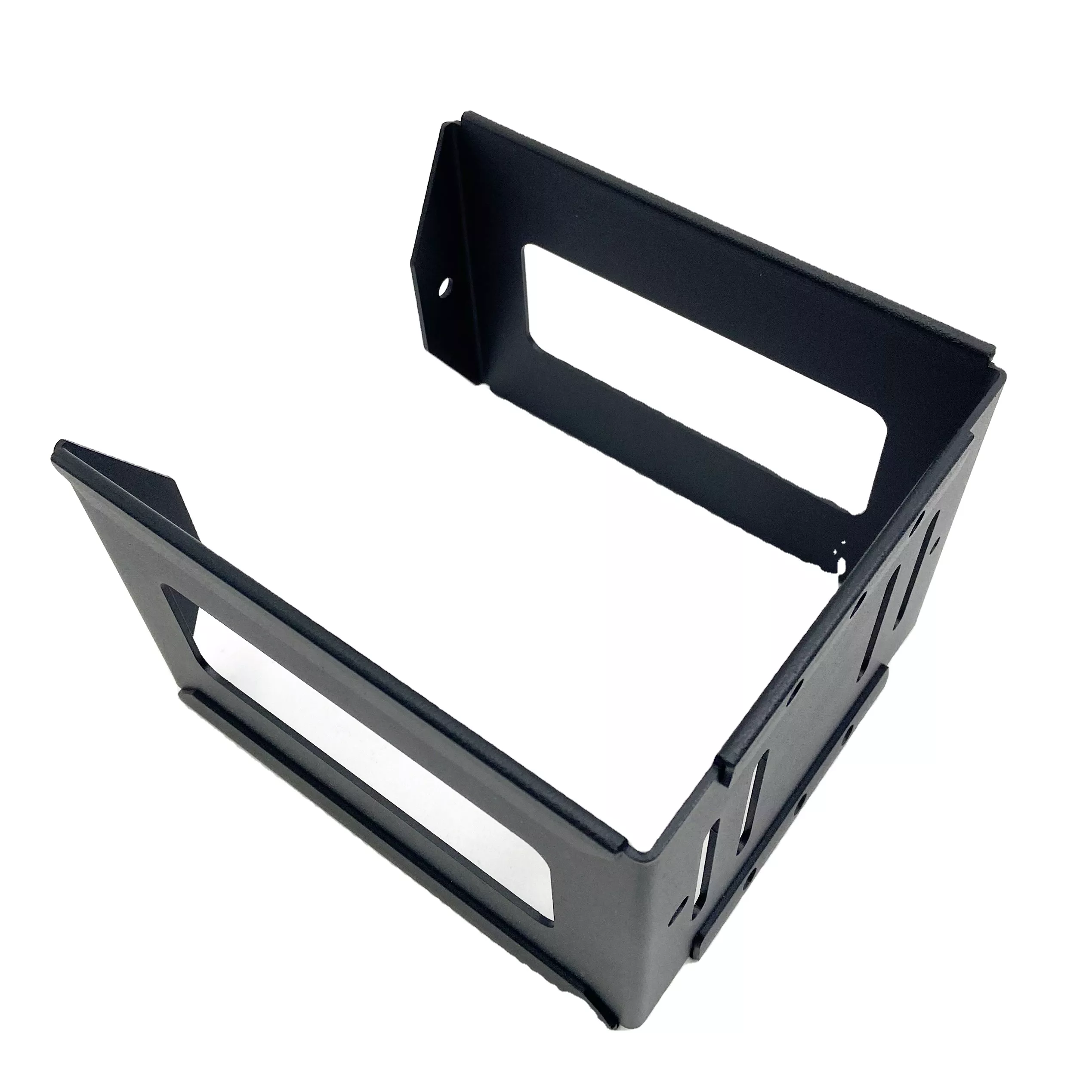

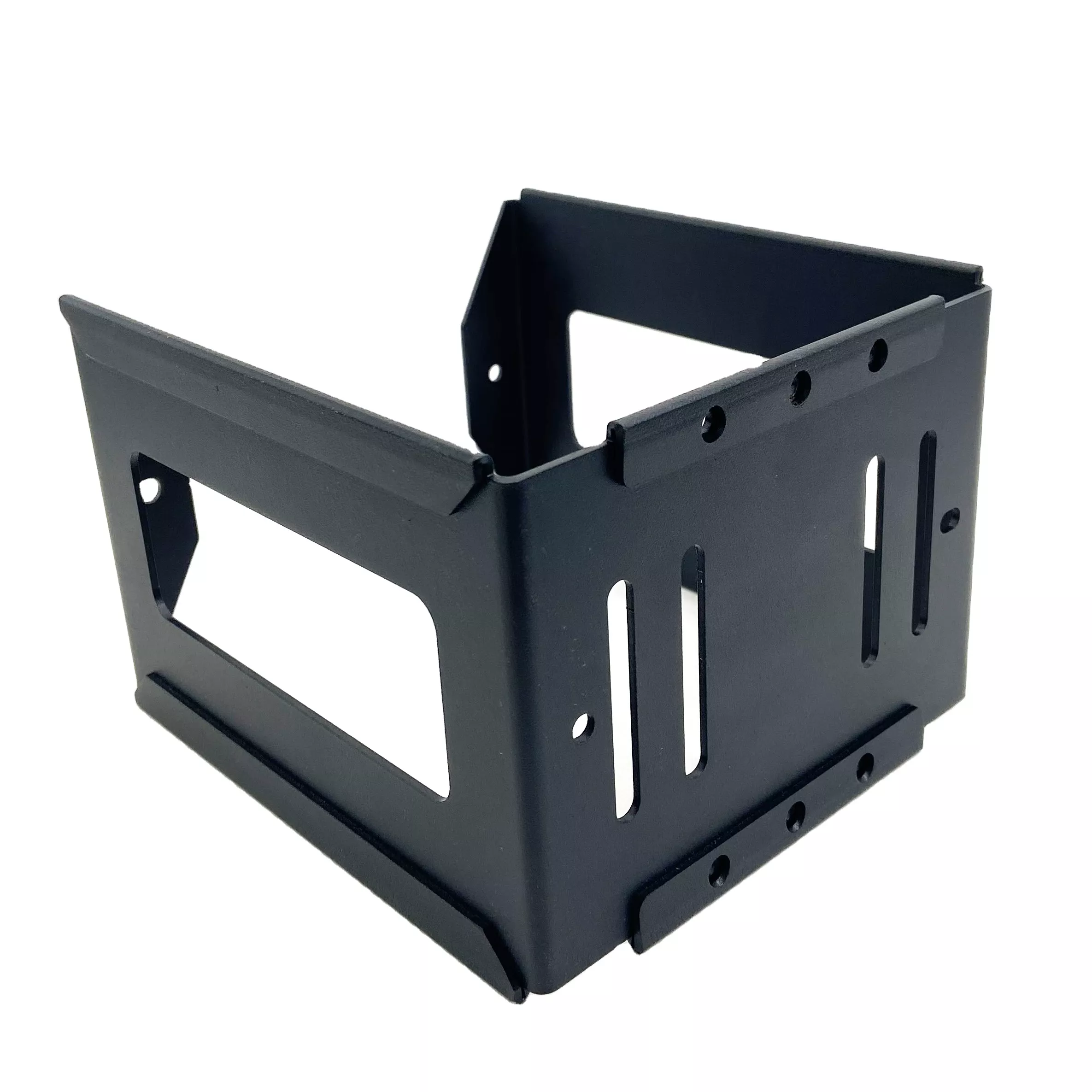

Specify the open frame around the rectangular side cutouts, vertical slots and folded perimeter edges. The dark example has several fixing holes and open regions across its sheet-like walls. Those features help identify the component, but do not prove actual alloy, galvanizing or the scope of a completed enclosure.

Coordinate the slots with the adjoining structure

Provide flat and formed geometry with mating-component references. Locate side openings, fixing holes and contact faces from installation datums, marking required clearances around the folded edges. State any inserts, hardware, joined pieces or covers included rather than assuming an open-frame photograph establishes a supplied assembly.

Select the sheet and processing requirements

Aluminum, steel, stainless steel and galvanized steel are separate material directions. Choose actual grade, condition and thickness for the order. Define laser cutting, stamping, bending and any marking or secondary work according to the controlled design; a general equipment list does not establish current machinery or the example's manufacturing route.

• Reference the slotted frame and mating drawings.
• Specify actual sheet grade, condition and thickness.
• Dimension side cutouts, slots and edge contacts.
• Define fabrication and a compatible surface system.
• Agree final fit and intended-duty evidence.

Accept the frame at its working contacts

Mark tolerances with units and final measurement conditions, including masking and color requirements where applicable. Actual load, environmental, machinery or automotive requirements need operating conditions and suitable tests. A dark finish or a broad application label establishes neither durability nor qualification for a particular installation.

Include component quantities, drawing revisions and required material or inspection documentation. Compare proposals using the same frame geometry, supplied hardware and final acceptance definition.
