Custom Laser Cut Sheet Metal Stamping Parts with Three Oval Openings and Bent Side Flanges
-
Model NumberS2402 2407RDrawing Format2D/(PDF/CAD) / 3D(IGES/STEP/STP)
-
MaterialGalvanized Plate / Steel /Aluminum /Stainless Steel Sheet PlateFinishPainting/ Anodizing/ Powder Coating/Nickel Chrome Plating
-
ColorPanton Color and Ral Color SupportedCertificateISO9001/ROHS/IATF16949
-
ProcessSheet Metal Fabricating + CNC + Surface TreatmentLogoAccept Customized Logo
-
PackingPlastic Bag + Carton + Plywood Pallet

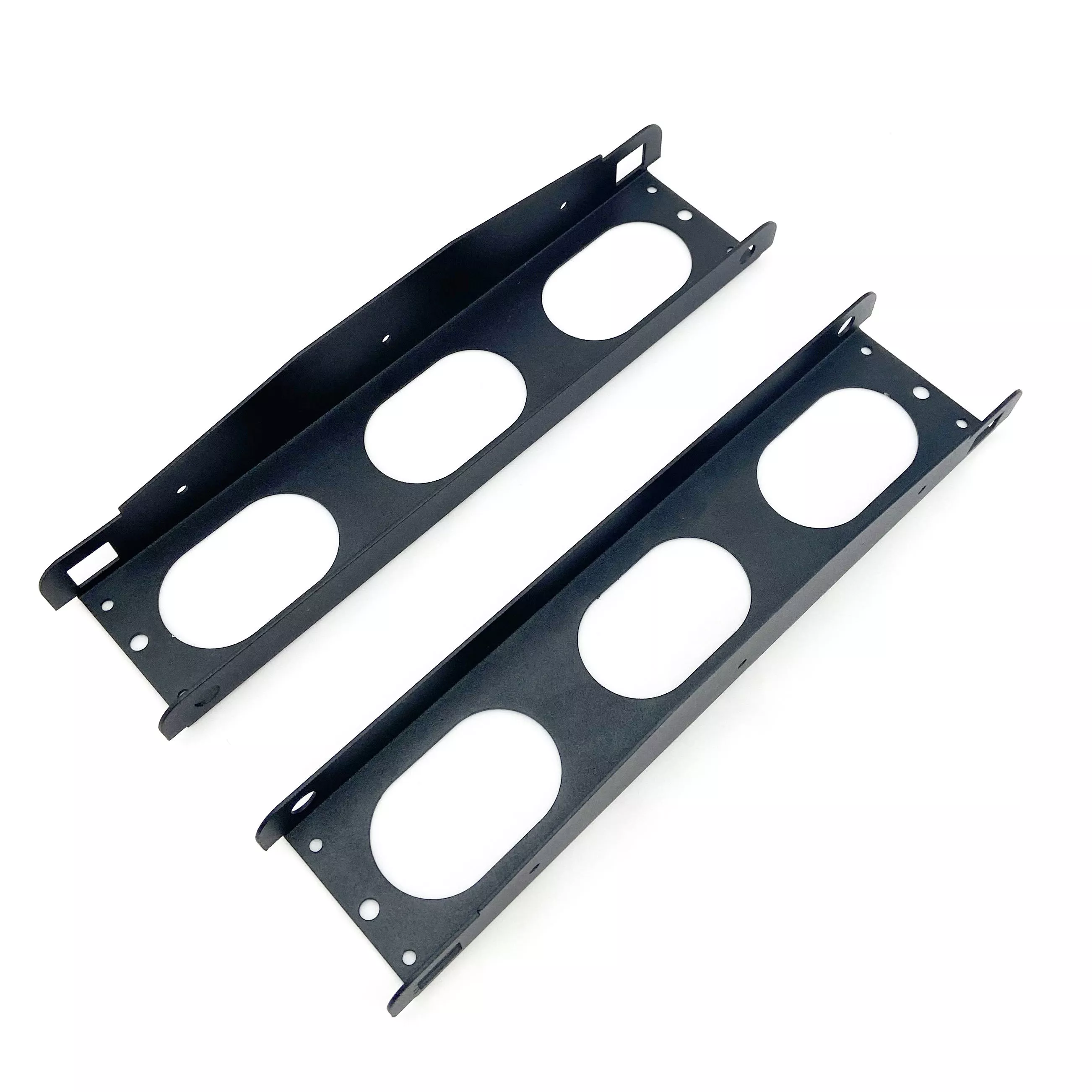

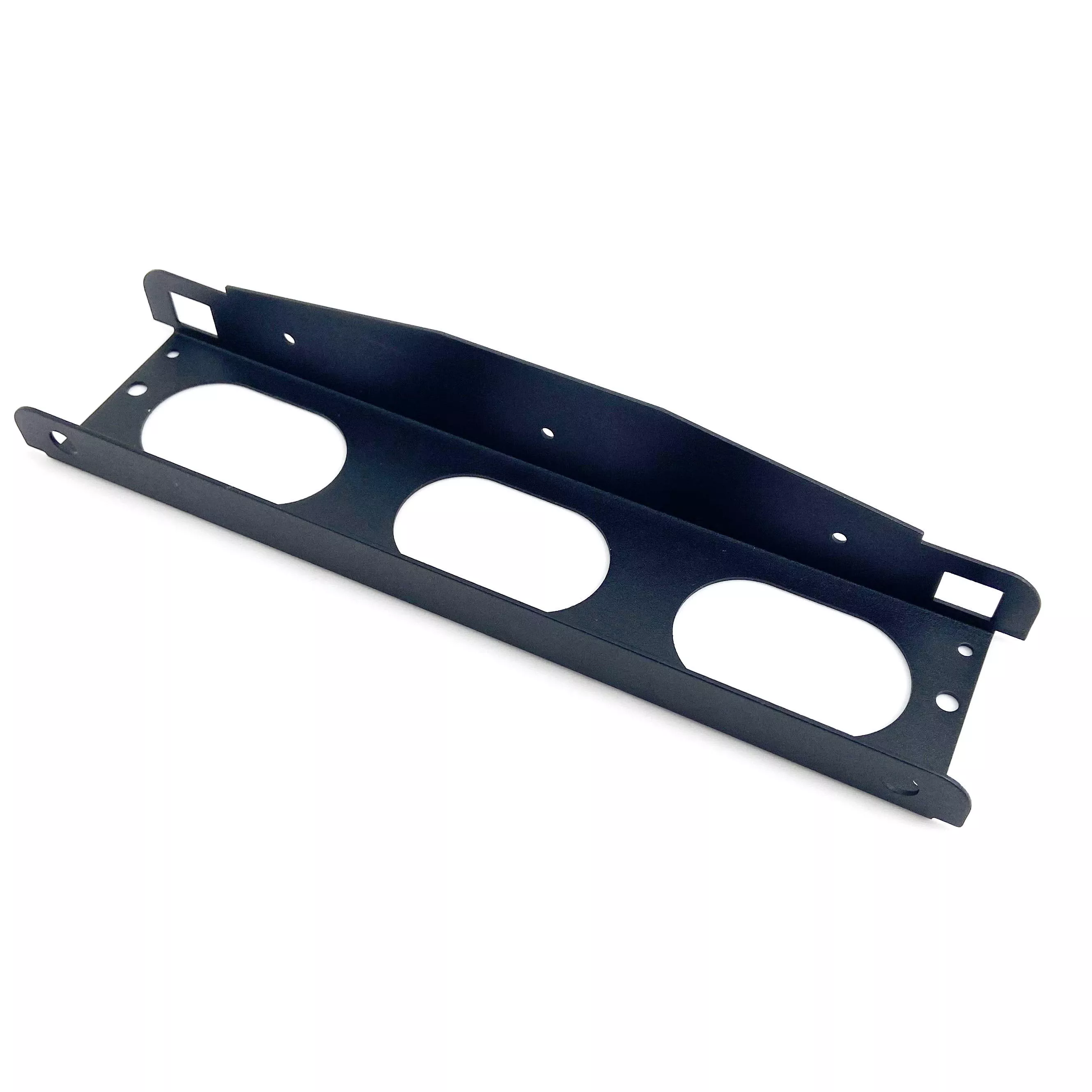

The S2402 2407R examples are elongated sheet metal parts with three large oval openings, bent side flanges and mounting features at the ends. The opening layout is a clear identifier for this enquiry. Supply the required dimensions and configuration rather than selecting by the sample's black appearance.
Cut profile and formed dimensions
Show the outline and spacing of the three oval openings, the flange heights and the mounting-hole or tab geometry. Identify the references that control the opening positions after forming. Include sheet thickness and any edge requirements needed for the surrounding assembly.
Galvanized plate, steel, aluminum and stainless steel sheet are listed options. The source includes sheet fabrication, CNC work and surface treatment, while the title identifies laser cutting and stamping requests. Agree the operations needed for this design and the finish appropriate to the selected material.
Send for review
Provide matching 2D/3D revisions, quantities and the required color or surface specification. Define inspection of the cutouts, flange alignment and mounting points. Any clearance, structural or application-specific requirement must be included in the approved component documentation.
