Product description
Project & Delivery Requirements
-
Applicable IndustriesHome Use, Construction works , Energy & MiningTypeFlat Belt
-
MaterialAlloy, AluminumApplicationIndustry
-
DimensionsCustomer RequiredSurface treatmentPaint/Powder coating/oxidation etc
-
Mold makingBy ourselfProcessDie Casting-deburring- Machinery
-
ServiceOEM ODMFeatureEco Friendly
-
Quality ControlProfessional InspectionPackingCarton

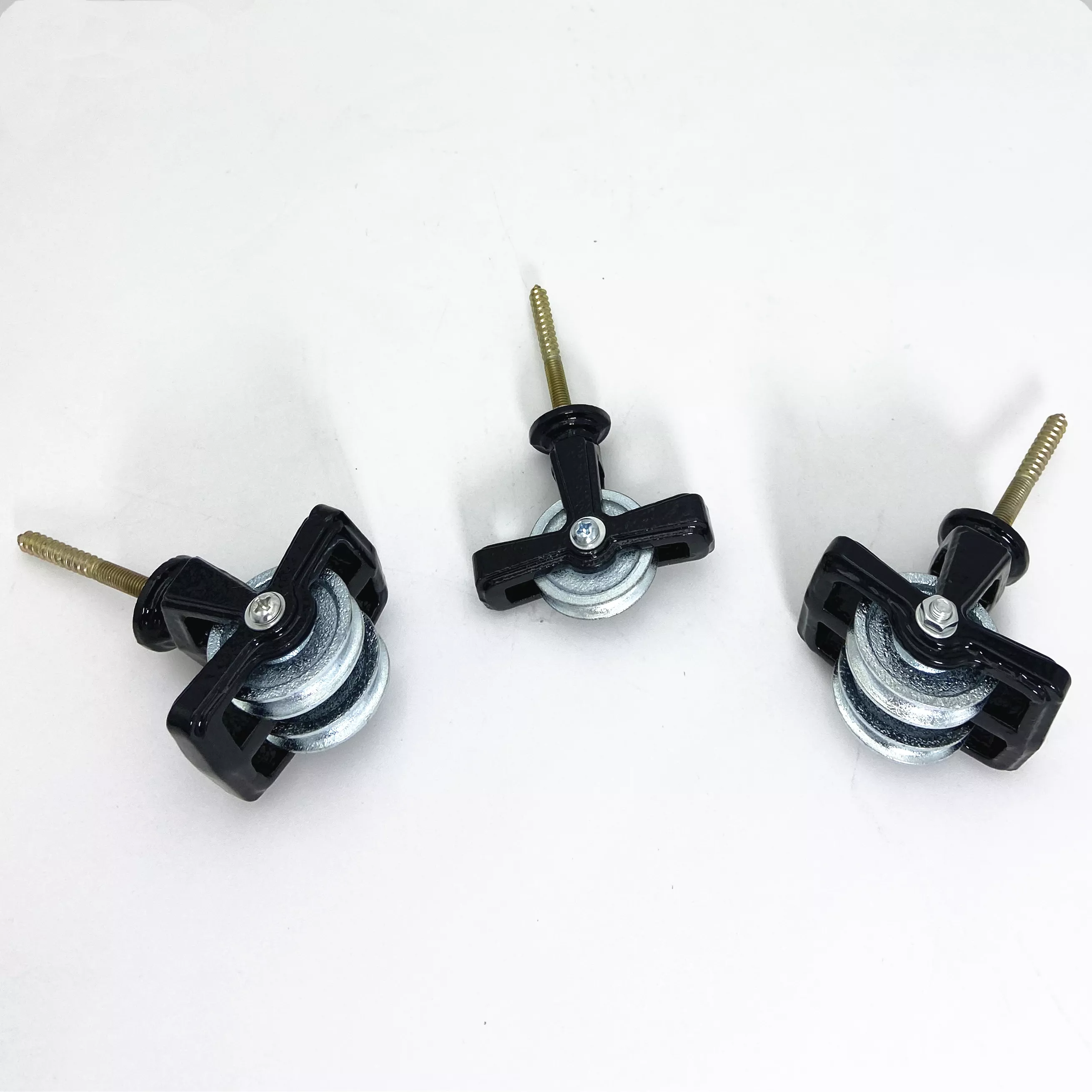

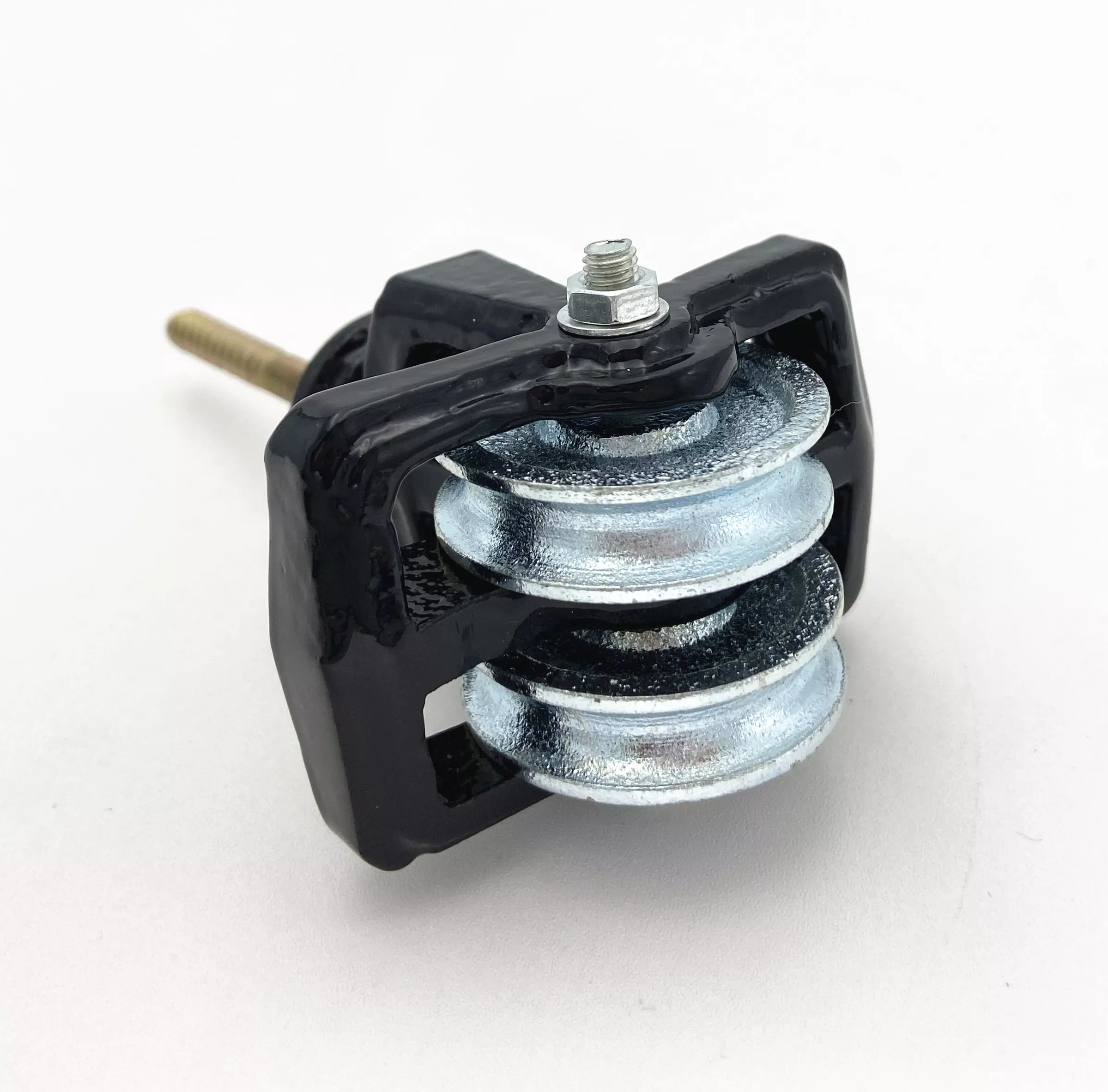

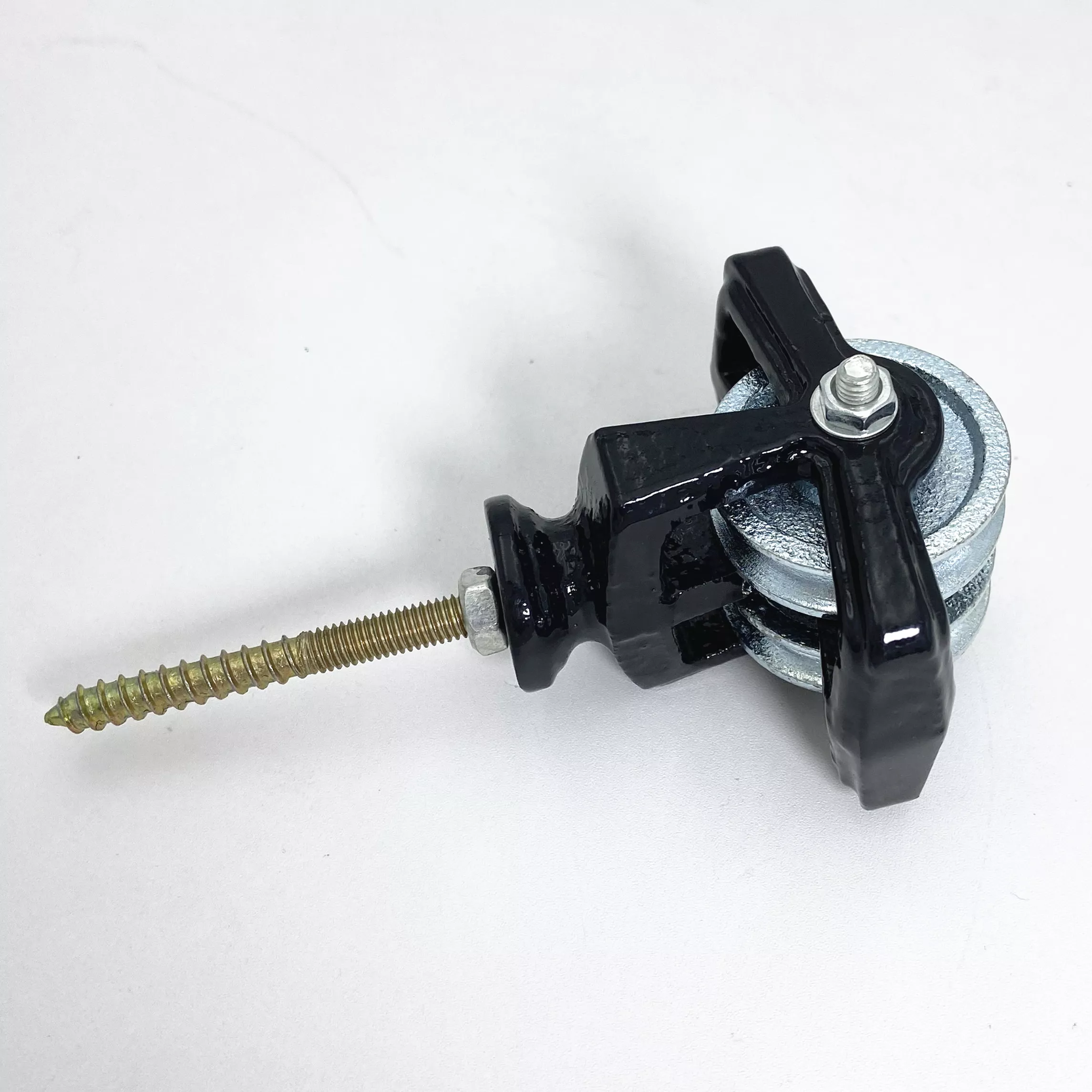

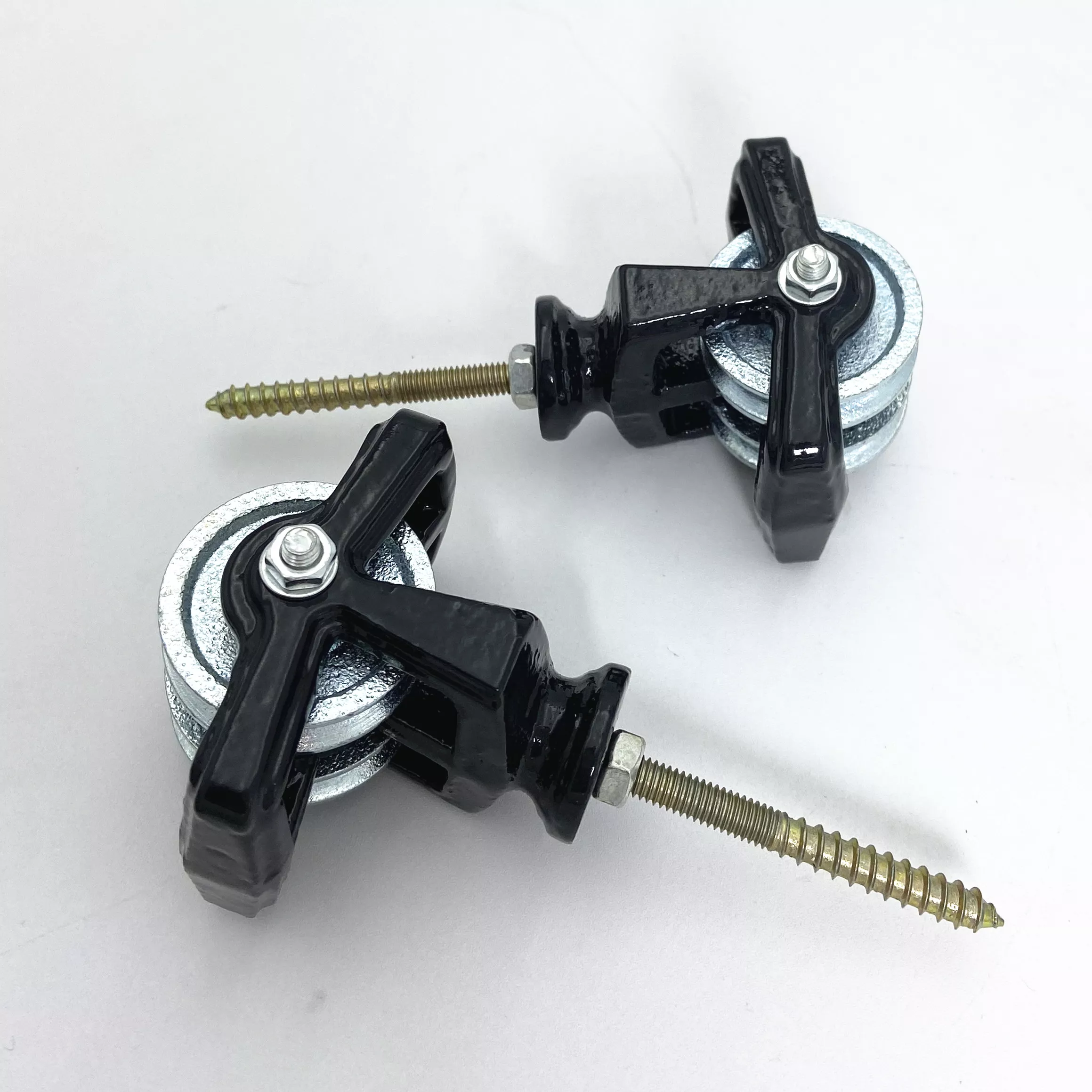

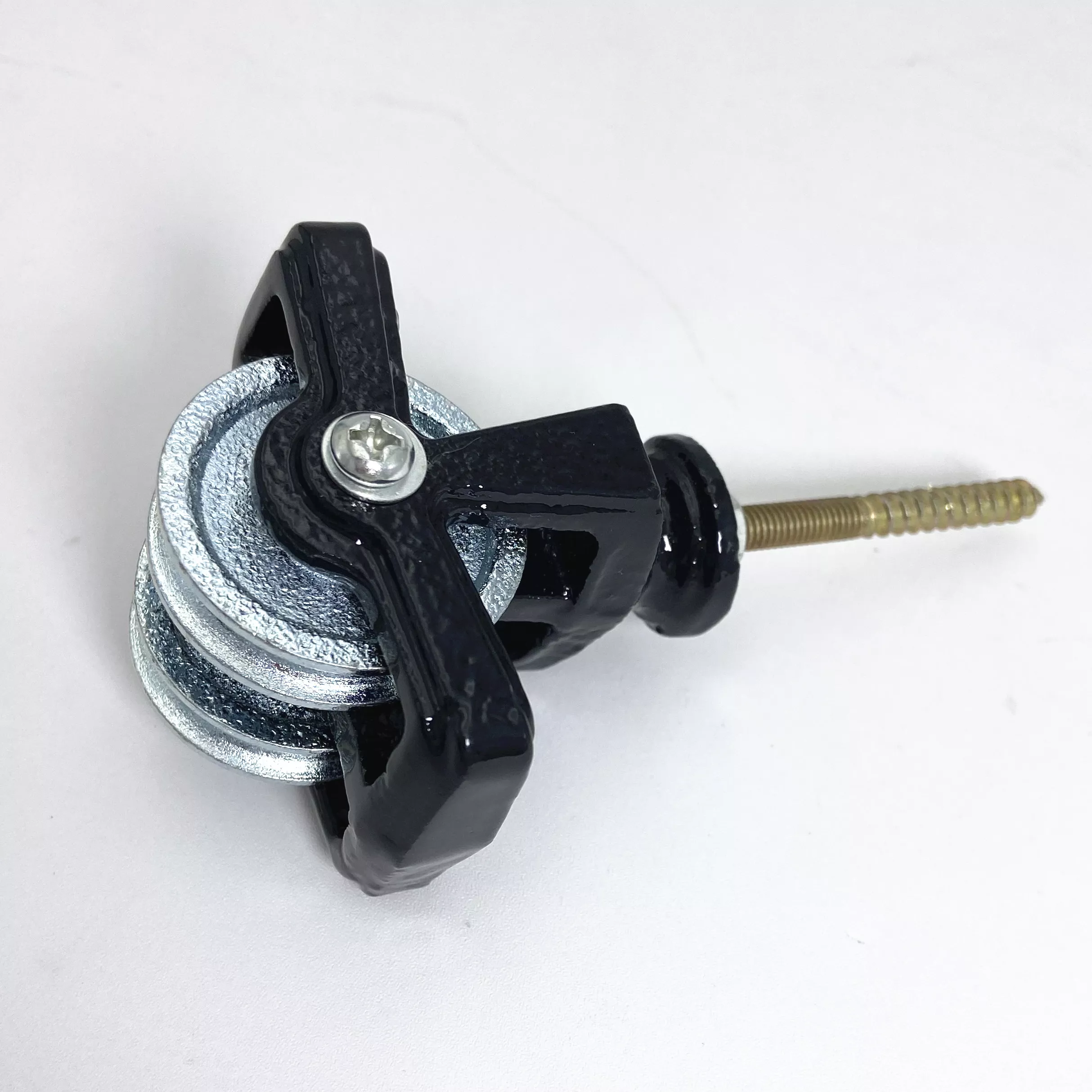

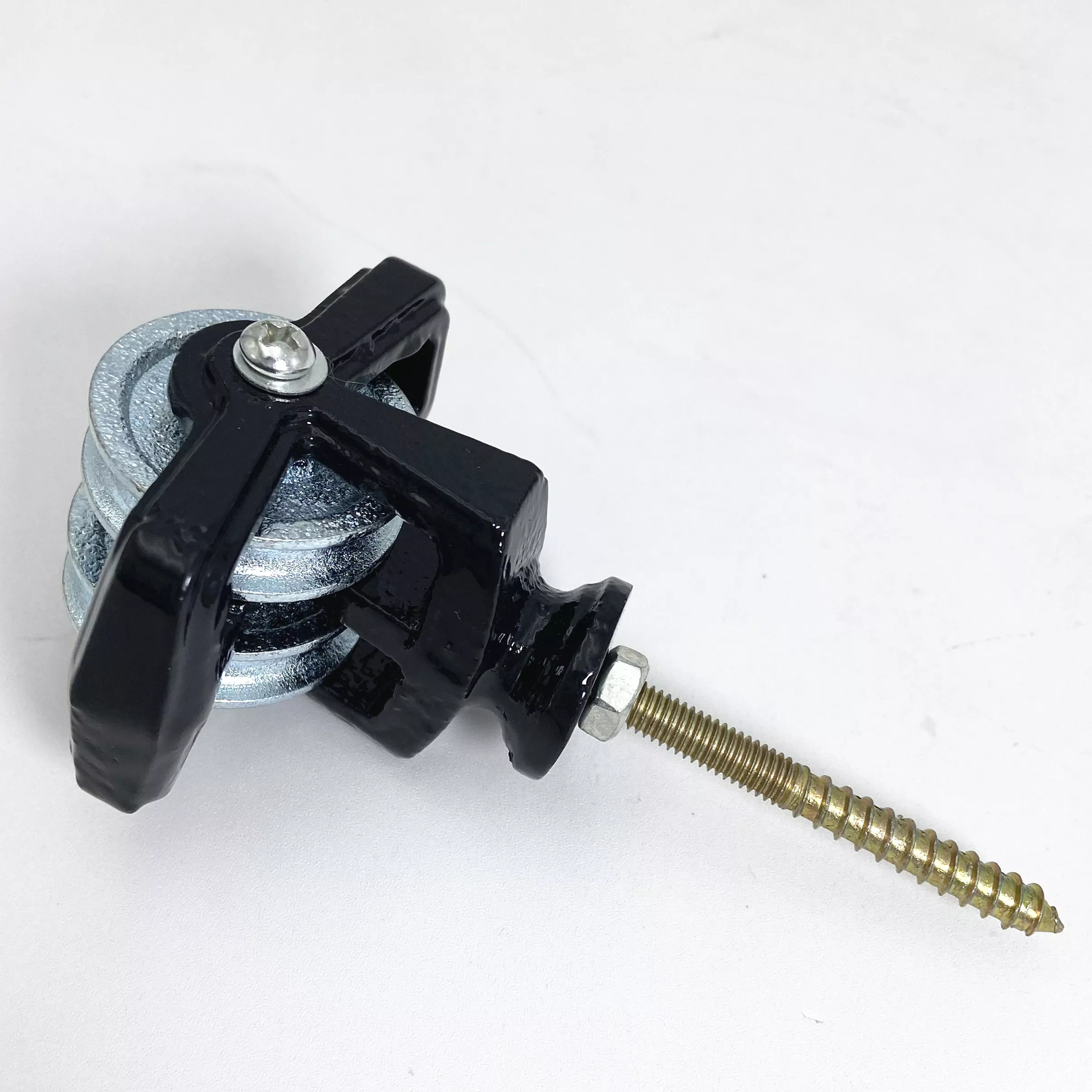

Two grooved wheels within a mounting bracket
The example combines two wheels, a bracket and axle or fastening hardware. Define each wheel's groove and diameter, the spacing between them and the bracket's connection to the supporting assembly.
Specify the running element and intended duty
State whether the design is for a cable, rope or belt and provide its dimensions. Identify the materials of the wheels and bracket separately. The general alloy/aluminum list and flat-belt parameter do not verify the title's cast-iron or climbing-use wording.
Include quantities, bearings or bushings, finish and inspection requirements, with the applicable load and acceptance tests. The photograph does not establish climbing suitability, a working-load limit or approval for supporting people.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
