Product description
Project & Delivery Requirements
-
Model NumberLZXMaterialsteel, stainless steel, aluminum, galvanized steel,
-
SizeCustomized sizeApplicationMachinery/Industry/Home/Automotive
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
TypeOEM PartsEquipmentCNC Bending/Stamping Machine/Laser Marking

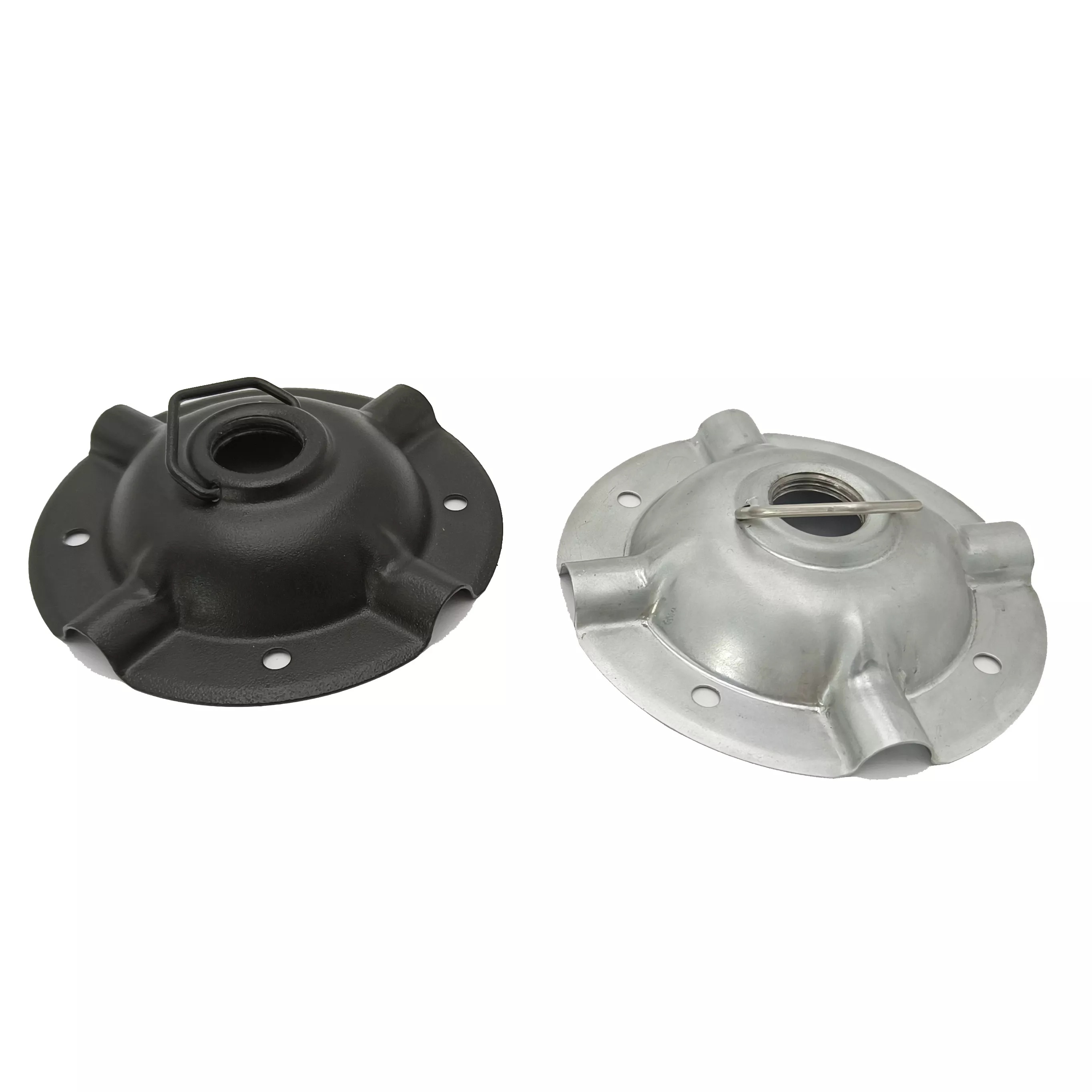

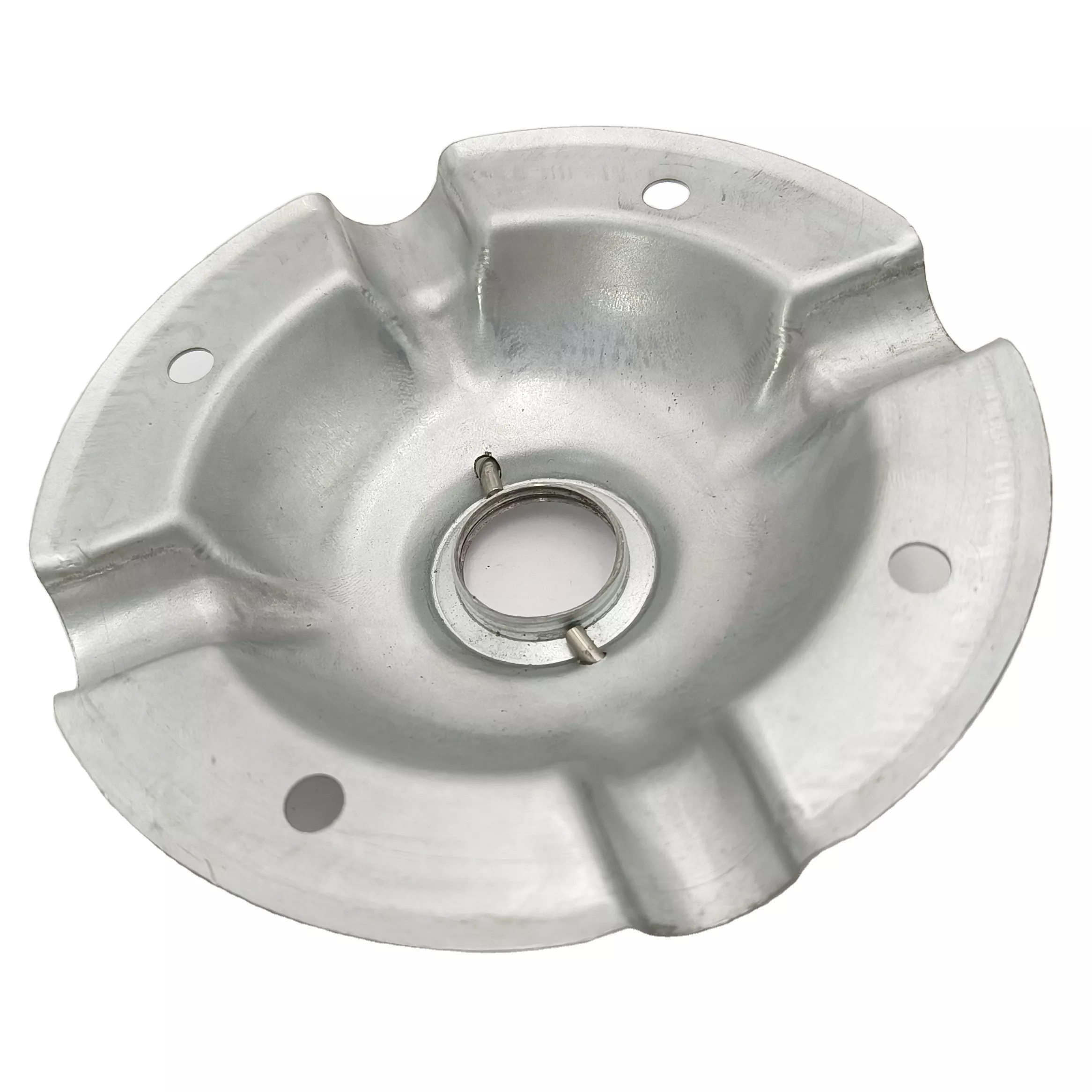

A raised center within a round mounting flange
The example has a domed or formed central region, a threaded opening and several projecting features around its perimeter. Define the thread axis, flange reference face and mounting-hole pattern together on the drawing.
Specify the aluminum or stainless steel grade, thickness and requested construction. Identify whether the threaded center is part of the formed component or a separate joined feature; the photograph alone does not resolve that detail.
Finished connection requirements
Include quantities, finish and any machining or joining specifications. Mark inspection criteria for the thread, flange and mounting interfaces. The image does not establish a pressure or sealing rating, nor a separate size from similar formed parts in the catalog.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
