Custom Aluminum Steel Sheet Metal Laser Cutting and Punching Parts | Powder Coated Round Plates

• Model Number

  DML240901
  Product name

  Sheet Metal Fabrication
• Drawing format

  .step / .stp / .pdf
  Surface finishing

  Powder Coating
• Color

  Black, White and Customized
  Application

  Electronics
• MOQ

  100
  Packaging

  Individual Packing

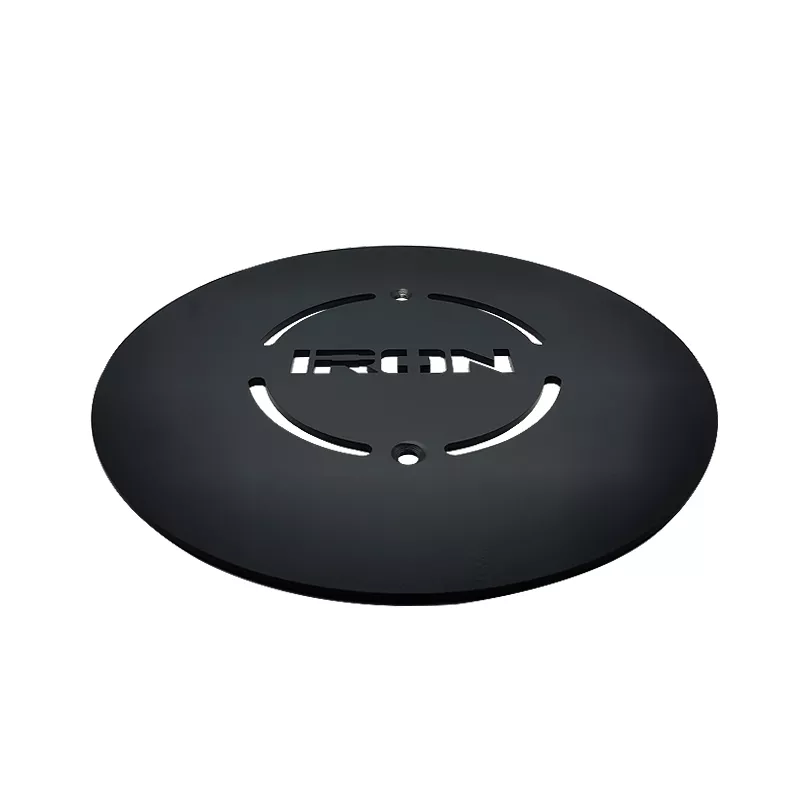

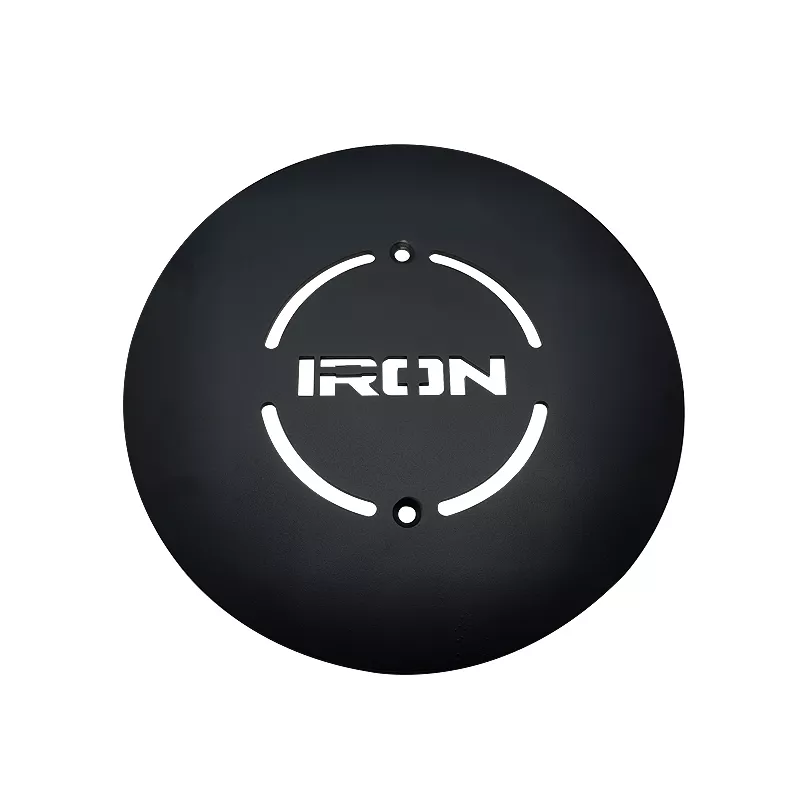

Define the round plate from its actual outline, curved slots and central lettering cutouts. The dark example also has small round holes around the slotted pattern. Those features describe component geometry, without establishing metal grade, thickness, coating chemistry, an airflow function or a rotating equipment application.

Coordinate the slots with the required artwork

Provide a flat drawing with actual dimensions, locating slots, small holes and lettering from defined datums. Supply artwork and its revision separately where required. Identify the adjoining structure and any mounting hardware included rather than assuming the plate is supplied as part of a completed device.

Select the sheet and cutting scope

Choose actual aluminum or steel grade, condition and thickness with required material records. Define laser cutting, punching, stamping and any subsequent forming or edge work for the controlled design. A circular form does not establish a manufacturing method, and a list of services does not mean every operation applies to this plate.

Accept cut edges and the chosen surface

Specify compatible powder-coating system, color, masking and appearance criteria where requested. Mark tolerances with units and final inspection conditions at slots, holes and contact regions. Any airflow, load, electrical or environmental requirement needs actual operating conditions and applicable evidence rather than an inferred rating from the opening pattern.

• Identify the round plate and artwork revision.
• Select actual sheet alloy and thickness.
• Locate curved slots, holes and lettering details.
• Define cutting, edge treatment and coating requirements.
• Agree dimensional checks and intended-use evidence.

Include STEP, STP or PDF geometry, quantities and requested material or inspection documentation. Keep fabricated-plate scope and any separately requested mounting assembly clearly identified for proposal comparison.
