Custom Pipe Clamp for Fire Fitting Projects | Sheet Metal Fabrication Enquiries
-
Model NumberDM1220MaterialAluminum
-
ApplicationElectronicsDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton

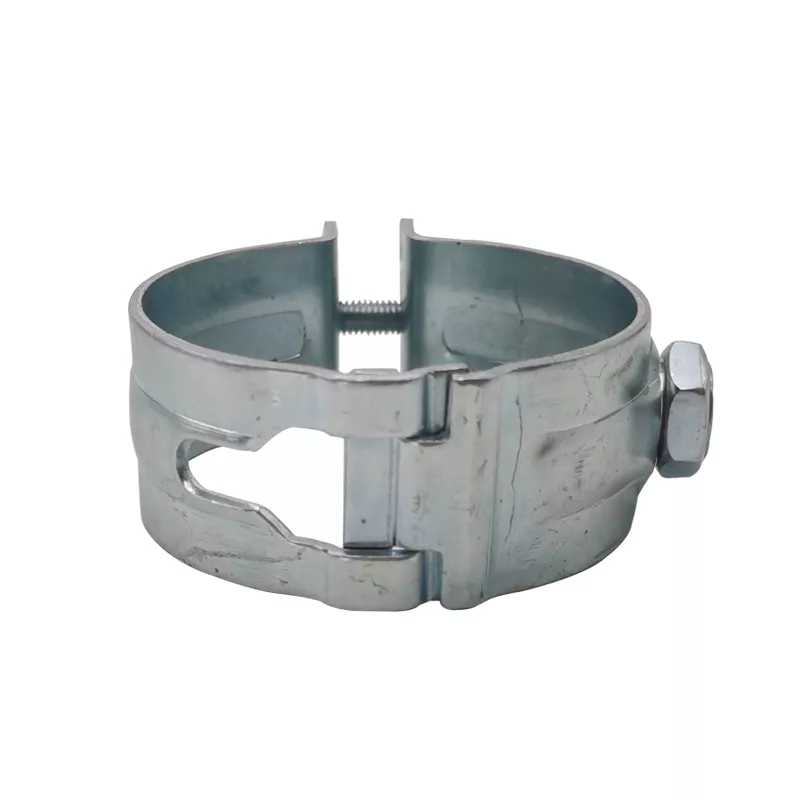

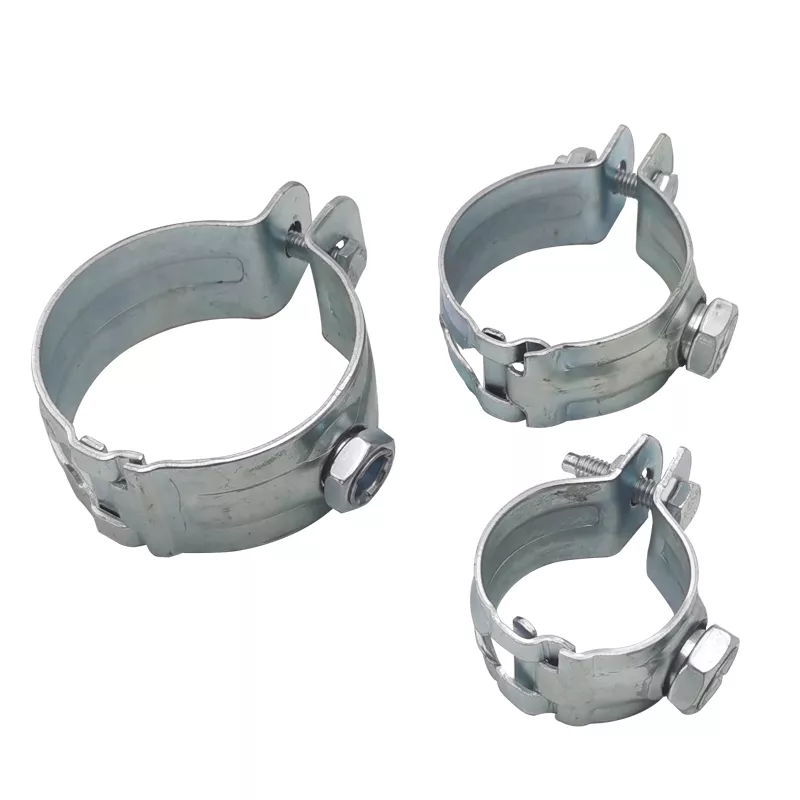

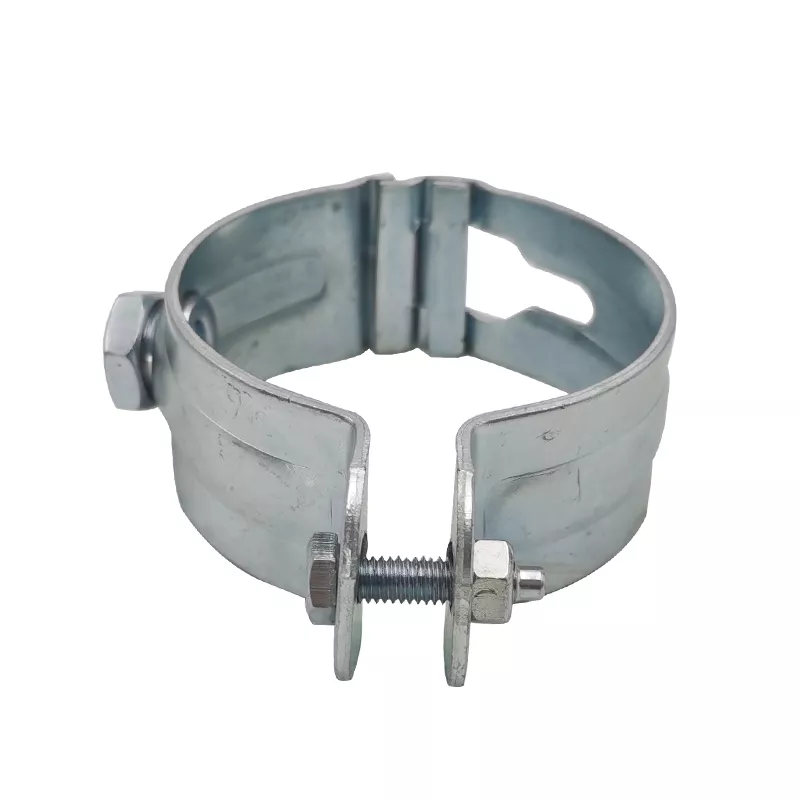

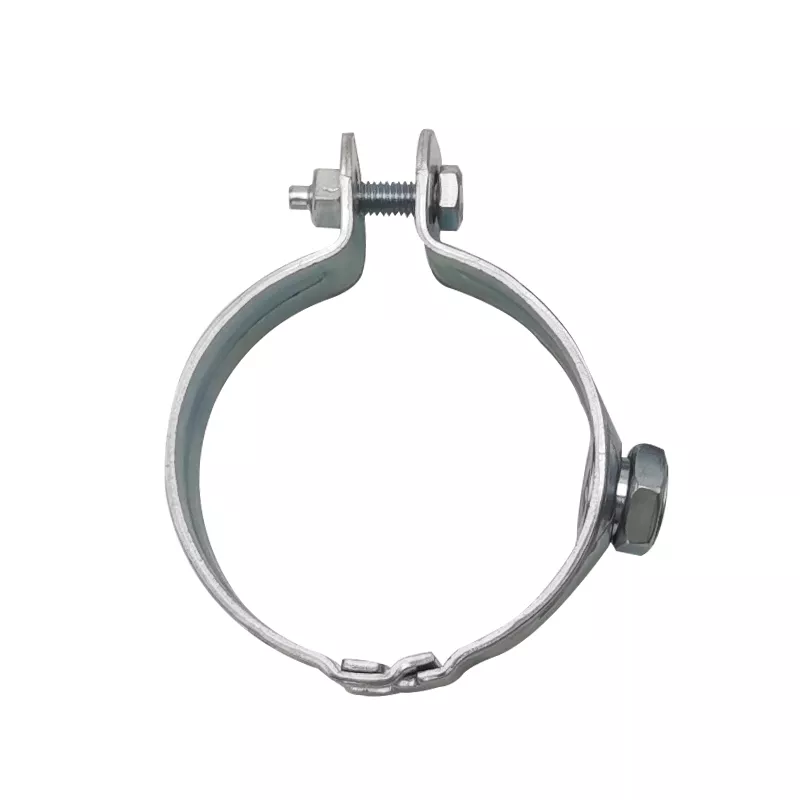

Two curved bands joined by bolted connections
The example shows curved clamp sections with projecting fastening areas. Specify the pipe outside diameter, band width and thickness, bolt arrangement and mounting interface so the assembled clamp can be reviewed against its actual support geometry.
Define the material and intended service explicitly
This page covers custom fabricated pipe-clamp components. Specify the sheet or strip material, thickness and required cutting, forming or punching operations for the clamp bands. Define the fasteners and any welded connections separately on the assembly drawing.
Include quantities, finish and inspection requirements, with any required fire-system or support-standard acceptance documents. The photograph does not establish a working load, pressure rating or approval for use in a fire-protection system.
