Custom Aluminum Stainless Steel Sheet Metal Stamping and Bending for Angle Brackets
-
Model NumberLZXMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessCutting Bending Stamping WeldingSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing format2D/3D/CAD/DWG//STEP/PDF/IGSCertificateISO9001/TS16949
-
KeywordSheet Metal Fabricating Parts
Two mounting faces joined by a bend

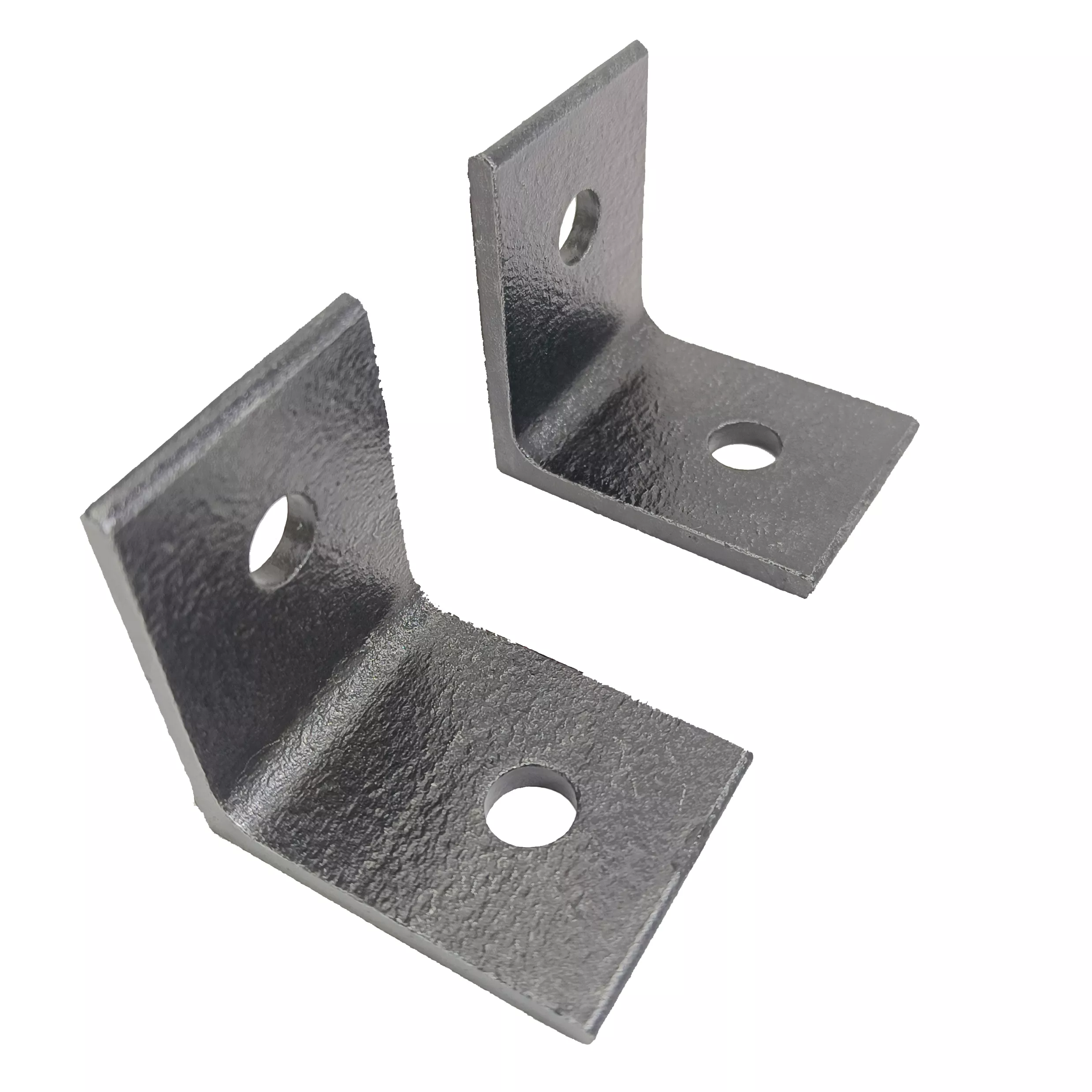

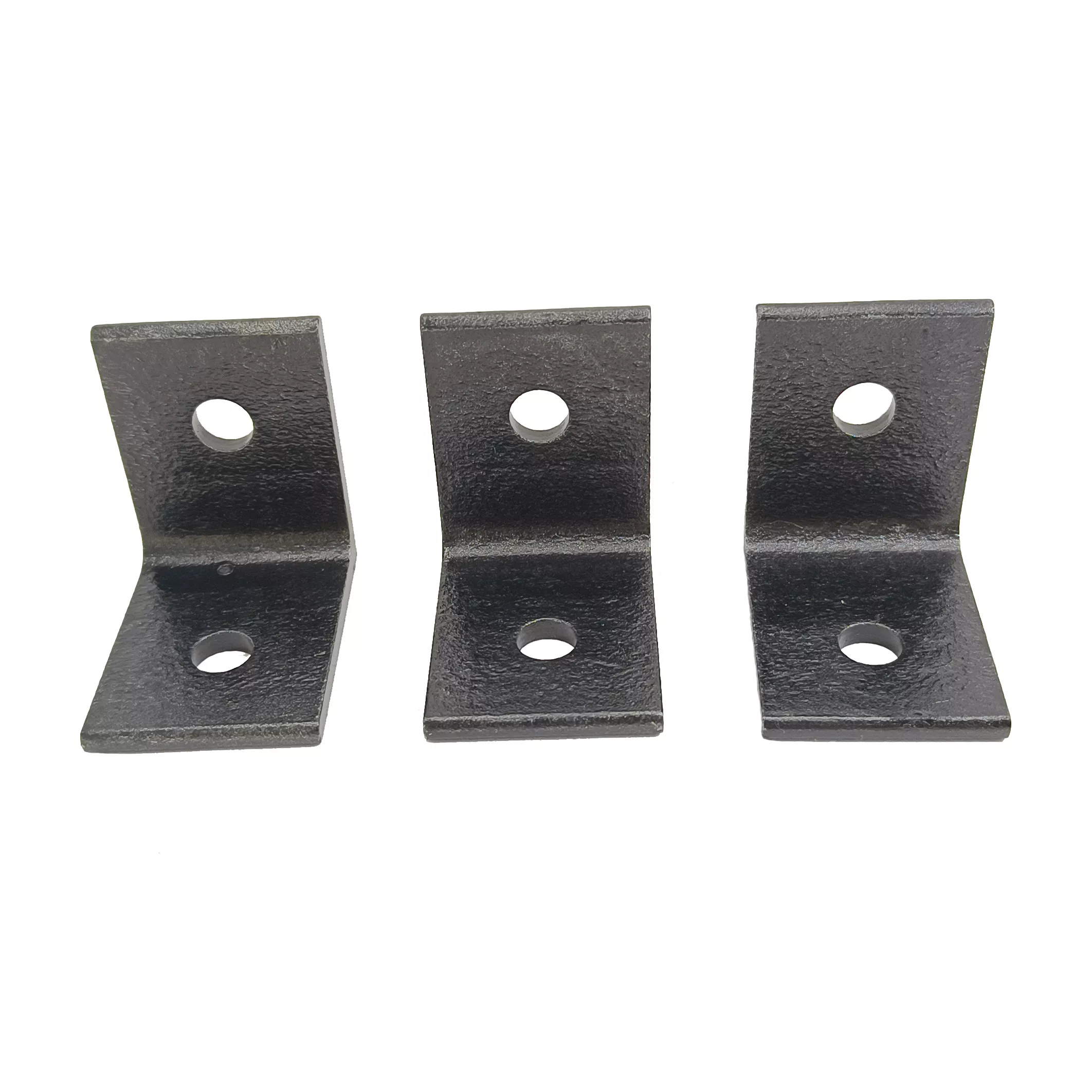

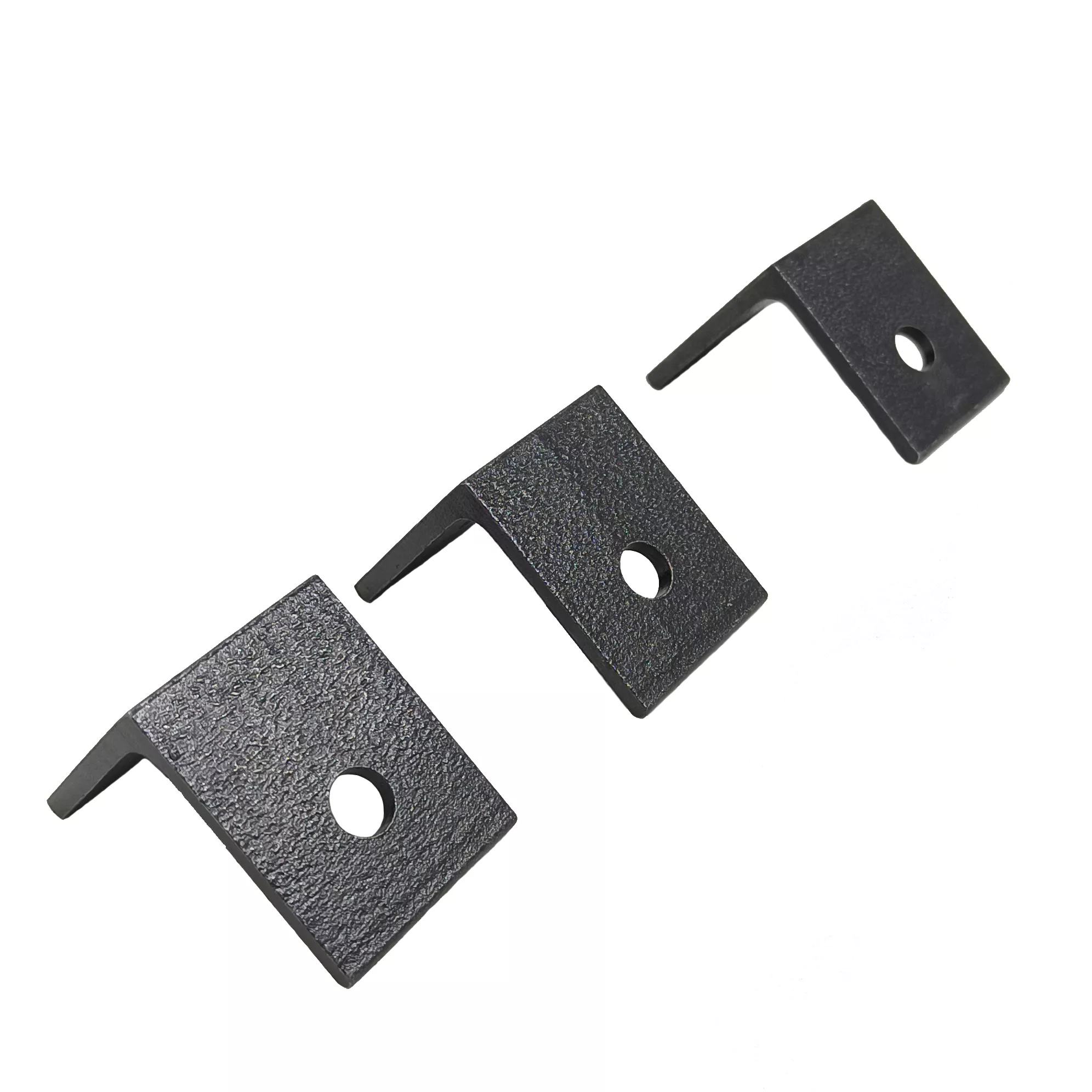

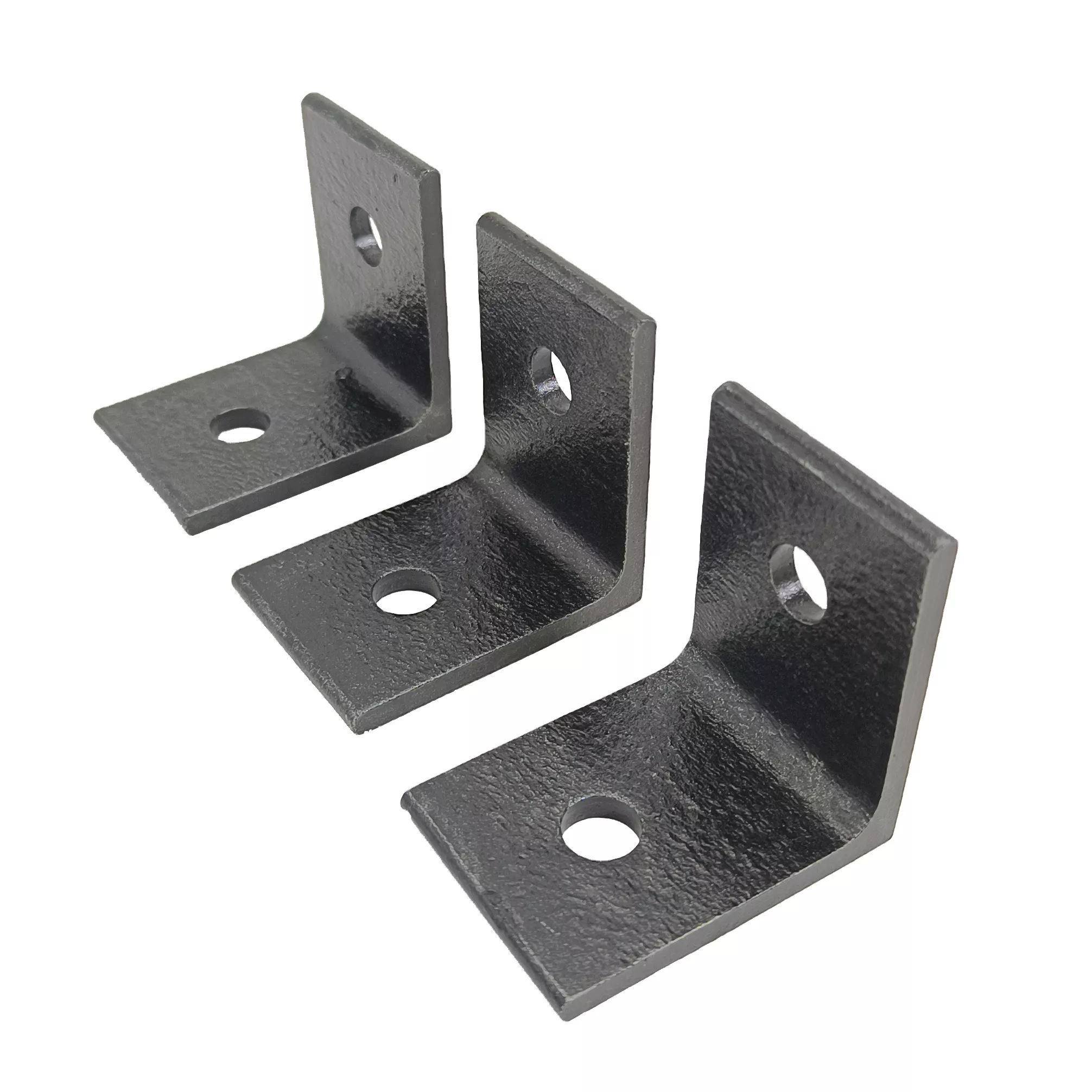

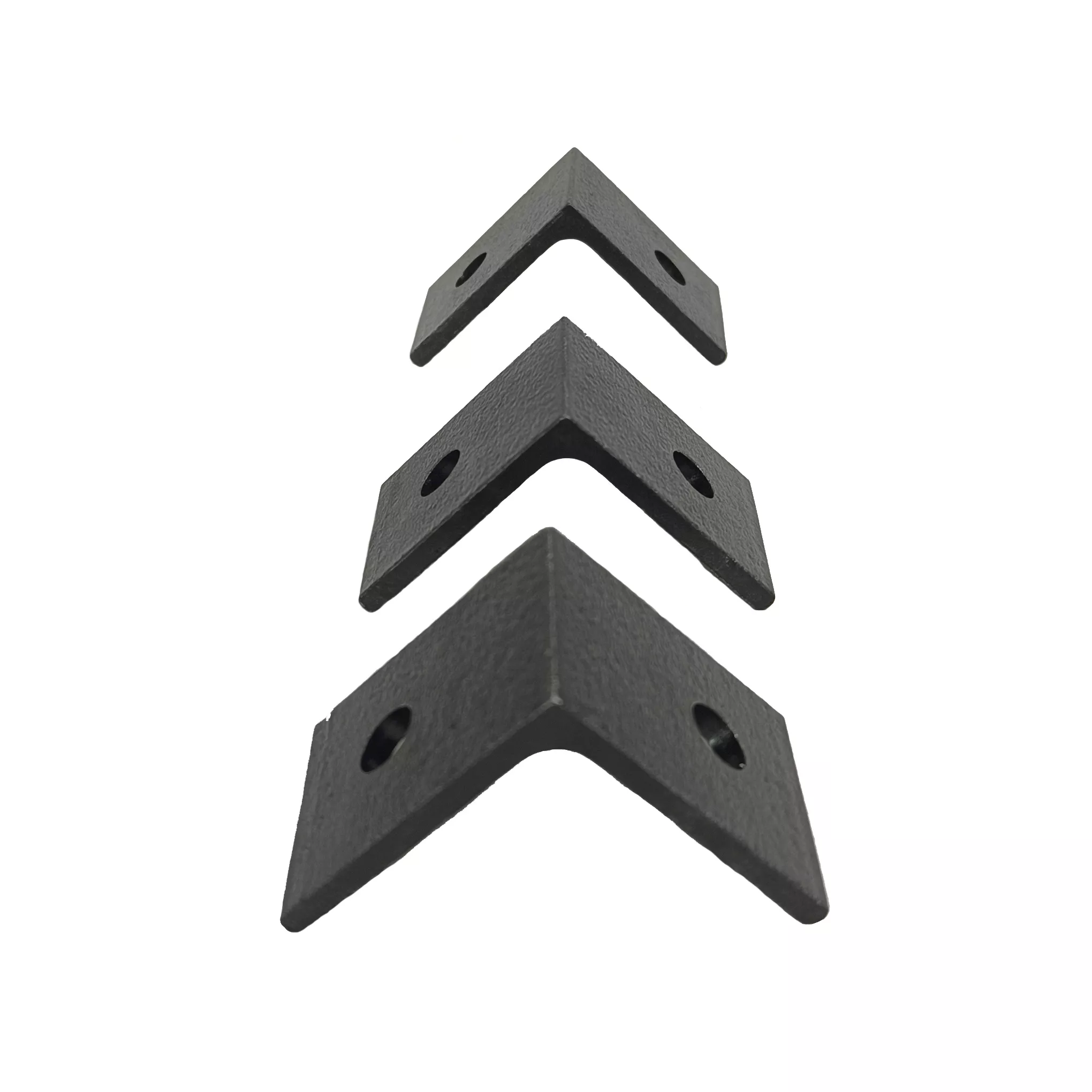

The examples are angle-shaped brackets with a round fixing hole in each leg. Dimension the holes from the mating faces and define both leg lengths, the bracket width and the required angle. Include any corner or edge-clearance constraints.
Aluminum and stainless steel are advertised custom fabrication options; specify the selected grade and thickness for the required bracket. The product information also lists steel, copper and brass capabilities. Mark the required surface treatment separately from the base material.
What controls fit?
Identify the fastener size, clearance at the bend and the surfaces that contact the assembly. Provide CAD/DWG/PDF drawings or STEP/IGS geometry with quantities and a drawing revision. Any load or stiffness requirement should accompany the design so it can be reviewed for the specified mounting arrangement.
