Custom Aluminum Sheet Metal Fabrication and Steel Laser Cutting Punching for Powder Coated Control Face Plates
-
Model NumberDML240901Product nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing
Control face plates with mixed cutouts

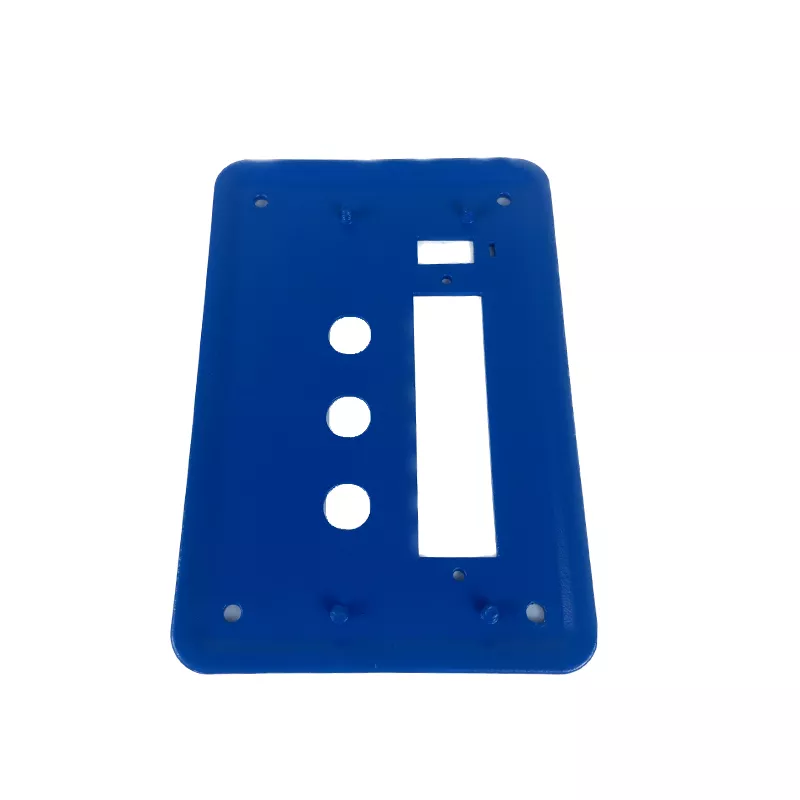

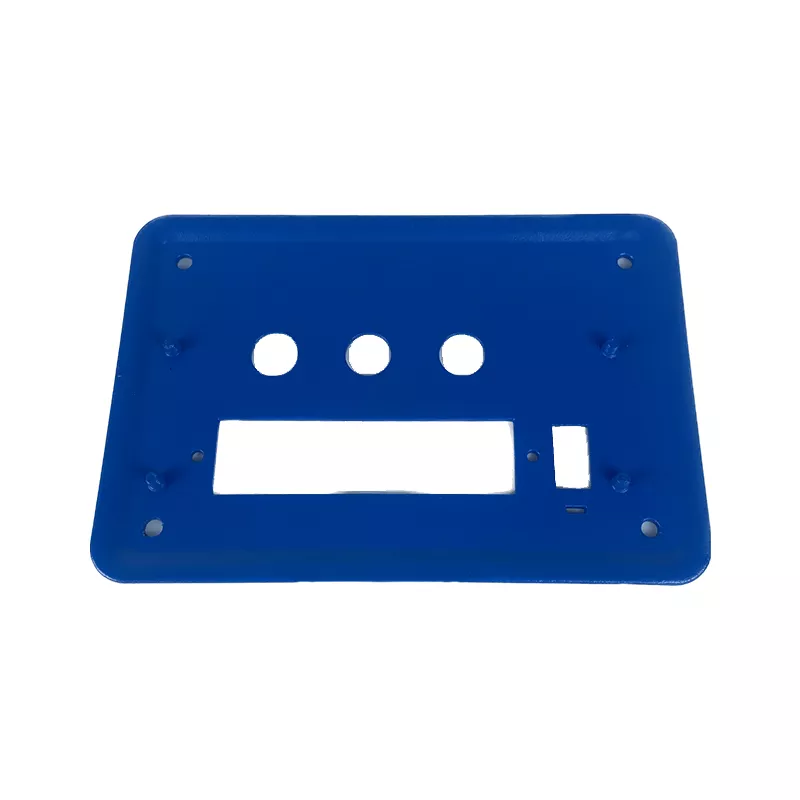

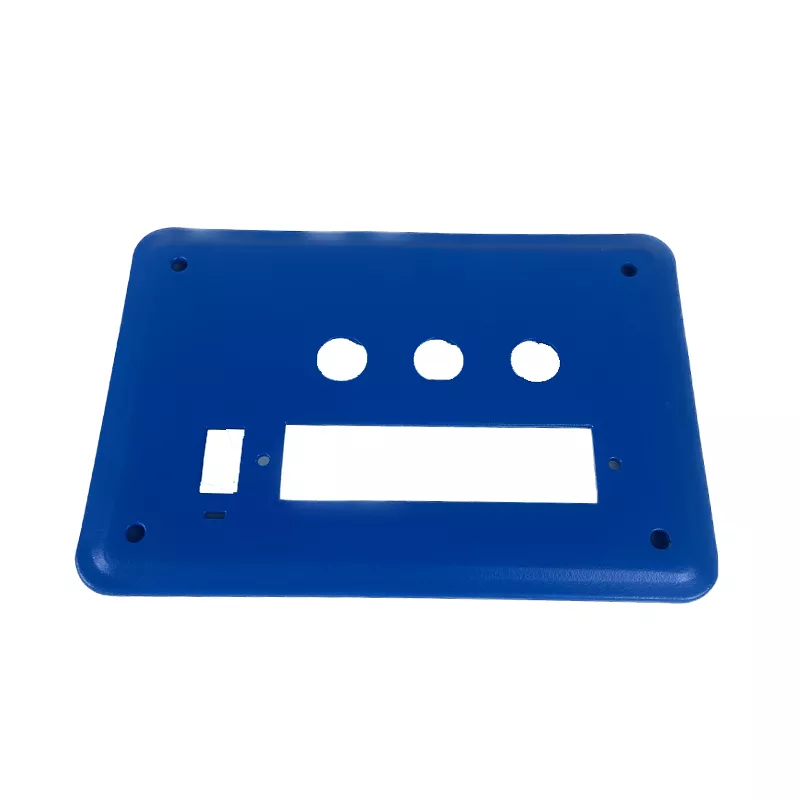

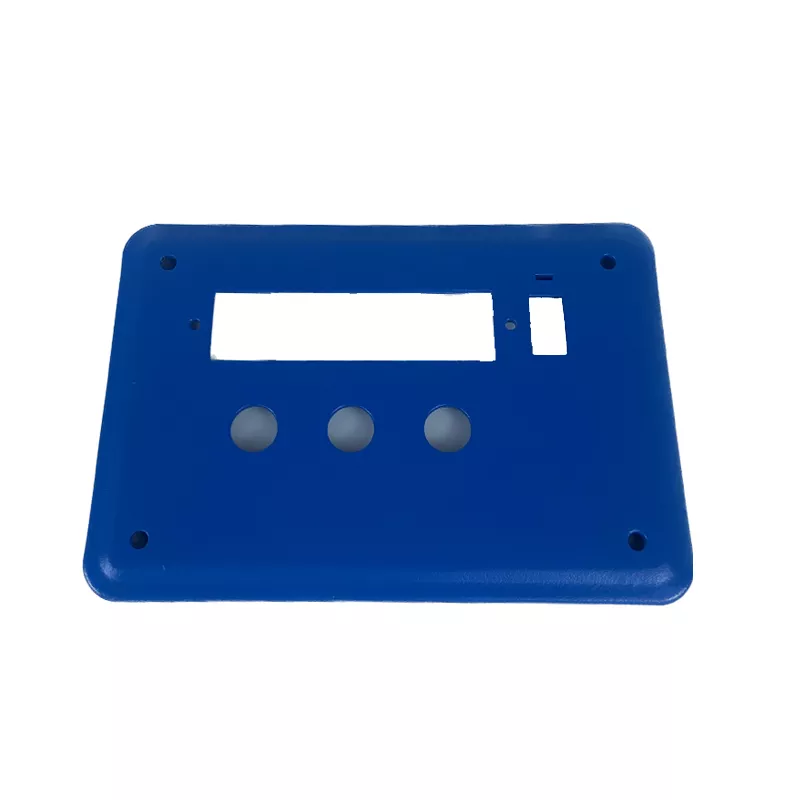

The blue face plate shown has three round openings, a wide rectangular cutout and a narrower rectangular opening near one side. Smaller fixing holes sit around the profile. This DML240901 listing names custom aluminum sheet metal fabrication and steel laser cutting and punching, with powder-coating finishing.
For a corresponding panel, supply the face layout and the dimensions of the components intended for each opening. Show opening centers, corner radii where required, fixing-hole positions and the finished outer profile. Include sheet thickness and any mounting clearance behind the plate.
Finish and drawing requirements
State the selected metal and powder-coating color in the enquiry. Identify areas where coating thickness or masking requirements affect the fit of a component or fastener. Black, white and custom colors can be specified for electronics face plates.
Accepted drawing formats are STEP, STP and PDF. The recorded minimum order quantity is 100 and individual packing is listed. Provide the current drawing revision and quantity, including any artwork or identification requirements that should accompany the fabricated face plate.
