Custom Aluminum and Steel CNC Machining Enquiries for Split Mounting Blocks with Bores and Fixing Holes
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200449Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.02mmToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

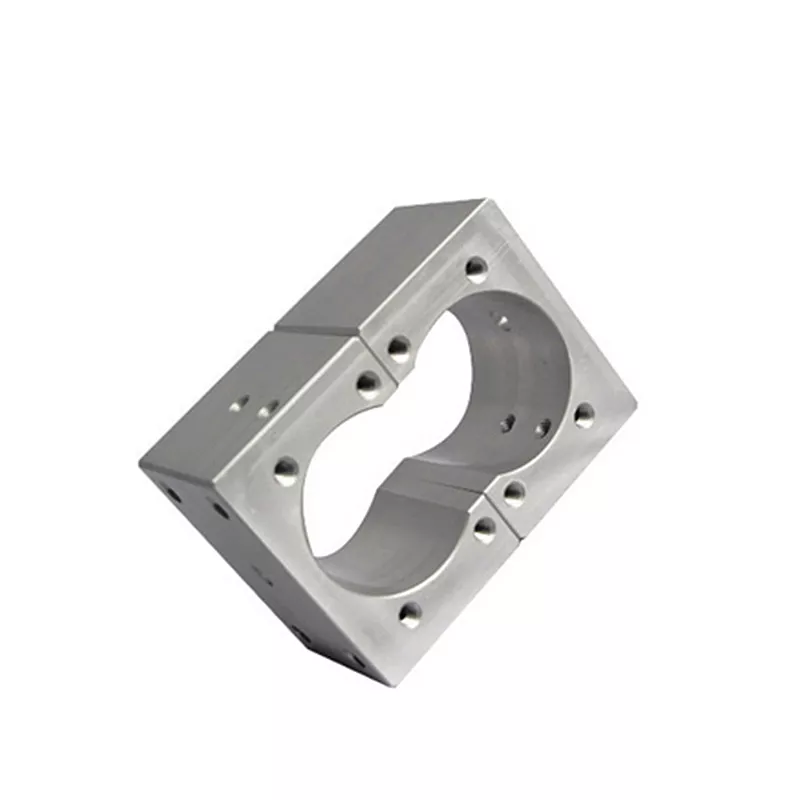

The illustrated block has paired circular openings, split faces and fixing holes around the outline. Define the bore centers, seating faces and fastening arrangement so the pieces can be inspected in the required assembled condition.
Material and machining route
Model Dmetal-200449 names aluminum alloy as the material and includes steel among the available machining materials. Specify the grade required for this block and identify any turning, milling or drilling features in the drawing. PDF, CAD, IGES and STEP formats and MOQ 100 are listed. Include quantities, bore-fit requirements and the finish appropriate to the chosen metal, with datums for inspection after machining.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
