Custom CNC Turning and Machining for Marine Fittings with Eye Ends, Forked Profiles and Cylindrical Bases
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeTurning
-
Material CapabilitiesHardened MetalsMicro Machining or NotMicro Machining
-
Model NumberDML-24MaterialCustomers' Requirement
-
Product nameCnc Maching PartsProcessCnc Machining + Surface Treatment
-
Surface treatmentPainting\Powder Coating\Plating\PolishingServiceCustomized OEM
-
ApplicationMarine fittingsTolerance0.01- +/-0.005mm
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)Quality Control100% Inspection
-
EquipmentCNC Machining Centres
Choose the eye end or forked interface

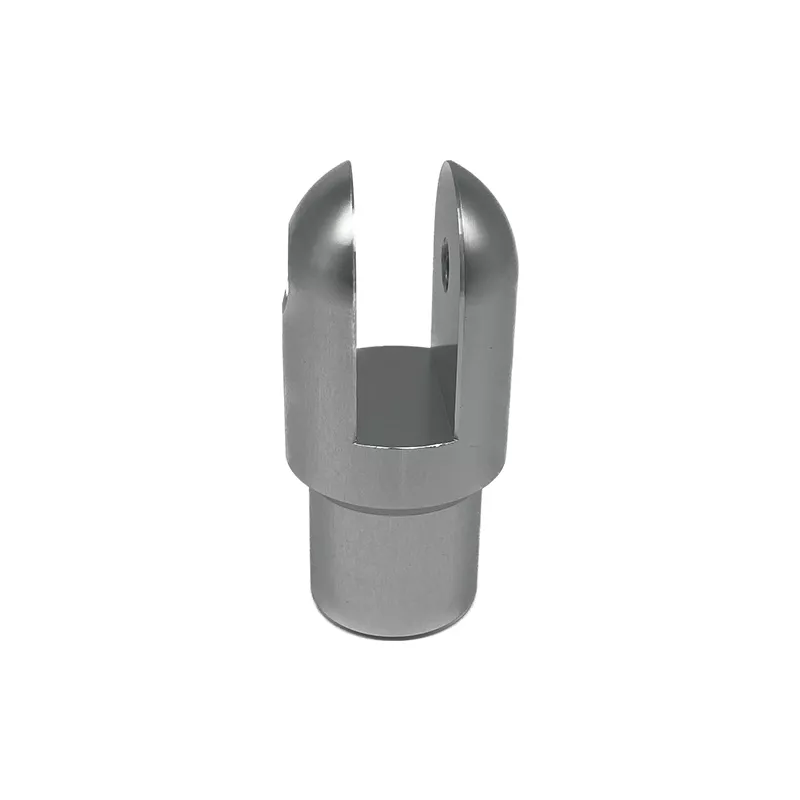

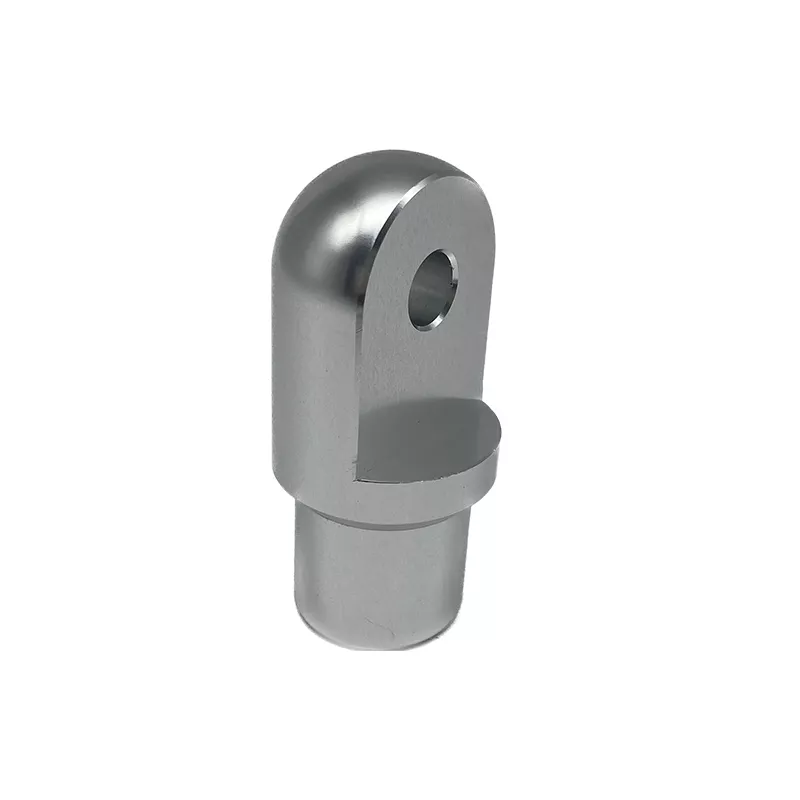

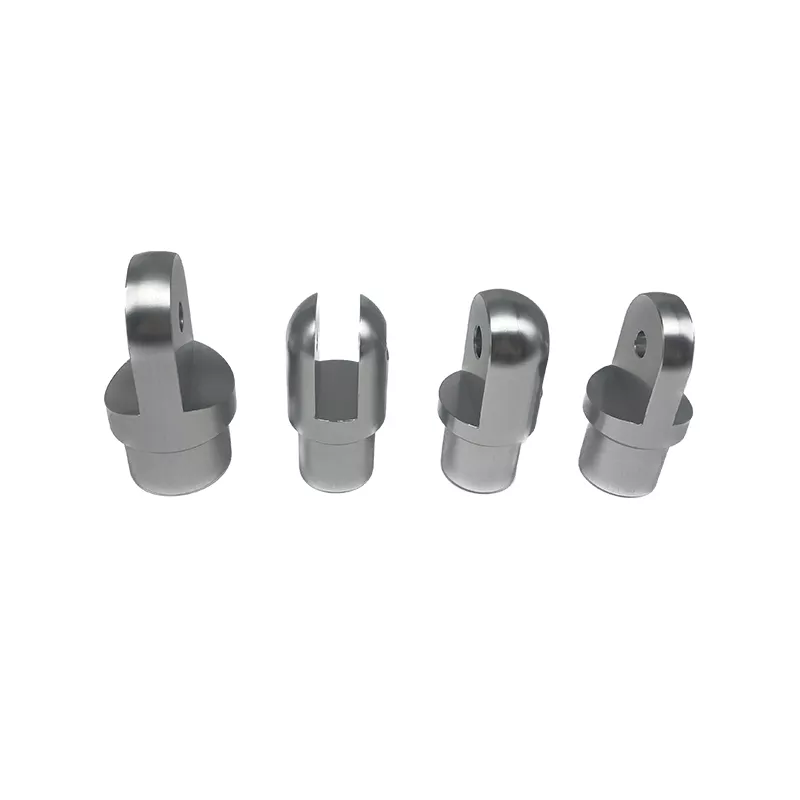

The selection shows rounded eye ends and a forked profile above cylindrical locating sections. Identify the required geometry and provide an assembly section showing the mating pin, contact faces and working clearances. Define the hole axis and fork gap from the lower locating features.
Model DML-24 lists custom CNC machining and surface treatment for marine fittings, with material according to customer requirements. Supply the exact grade for review, quantities and PDF, CAD, IGES or STEP drawings. Agree the surface treatment, service conditions and feature-specific inspection plan. The images do not establish a standard connector size, corrosion test result or rated joint load.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
