Custom Aluminum CNC Turned and Milled Parts with Rounded Eye Ends and Grooved Faces for Rapid Prototype Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200444Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

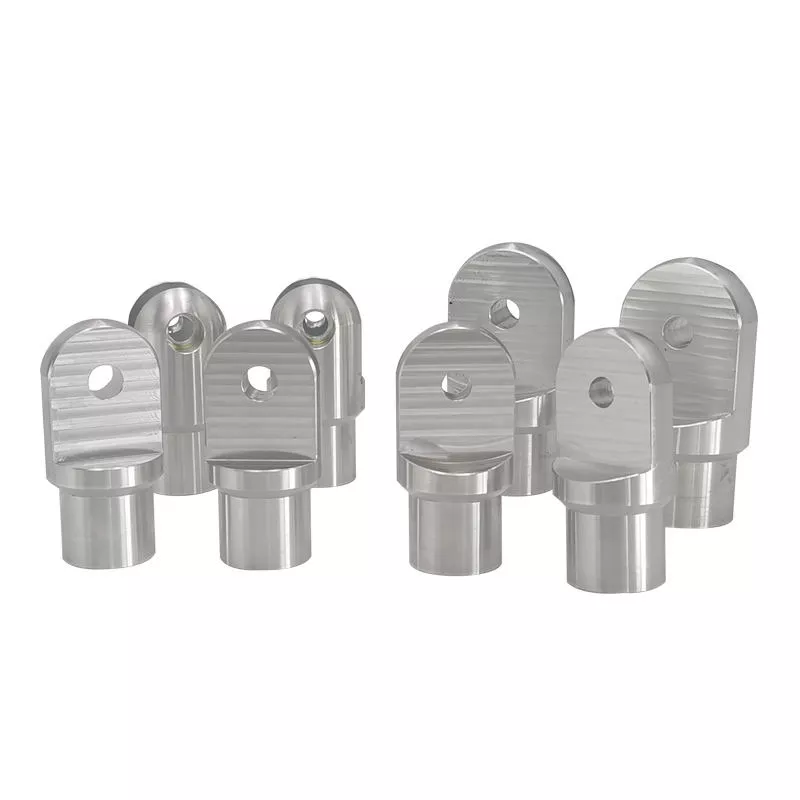

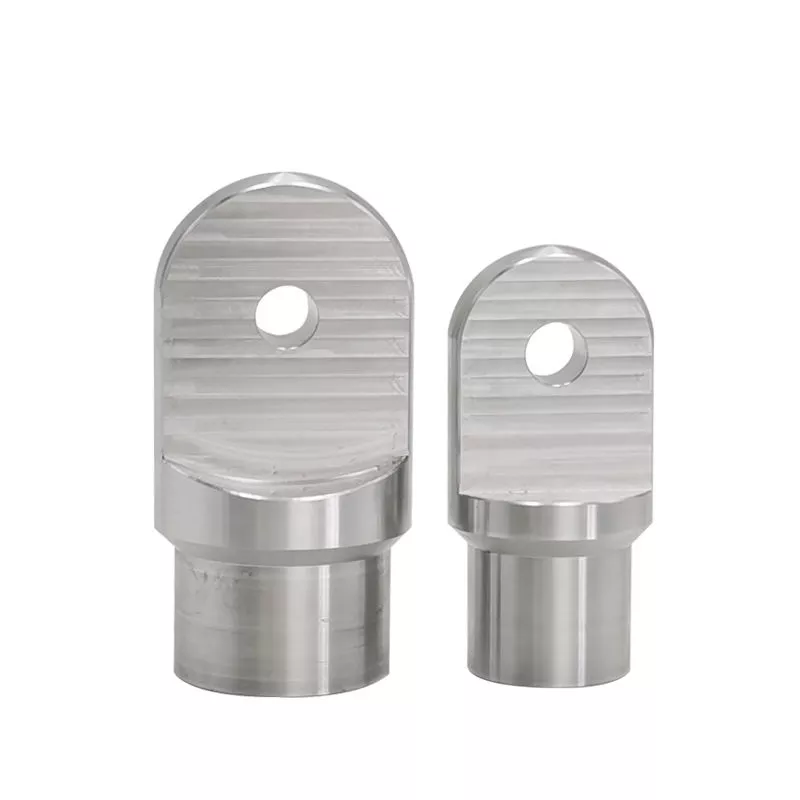

Rounded eye end above a cylindrical base
The examples have cylindrical lower sections, rounded upper faces with transverse holes and parallel grooves across the visible faces. Define the bore axis, base diameter and face geometry in the finished-part drawing.
Model Dmetal-200444 lists aluminum alloy CNC turning, milling and drilling, with rapid prototyping among the services. Supply the alloy, quantities and drawing revision in PDF, CAD, IGES or STEP format. Specify the groove dimensions and any fit surfaces that need inspection. Agree the finish and prototype acceptance requirements before production; the pictured outlines do not establish a rated joint load or a standard connection size.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
