Custom Steel Zinc Plated CNC Lathe Turning and Machining Spare Part Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200428Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc
Thread and recessed-head geometry

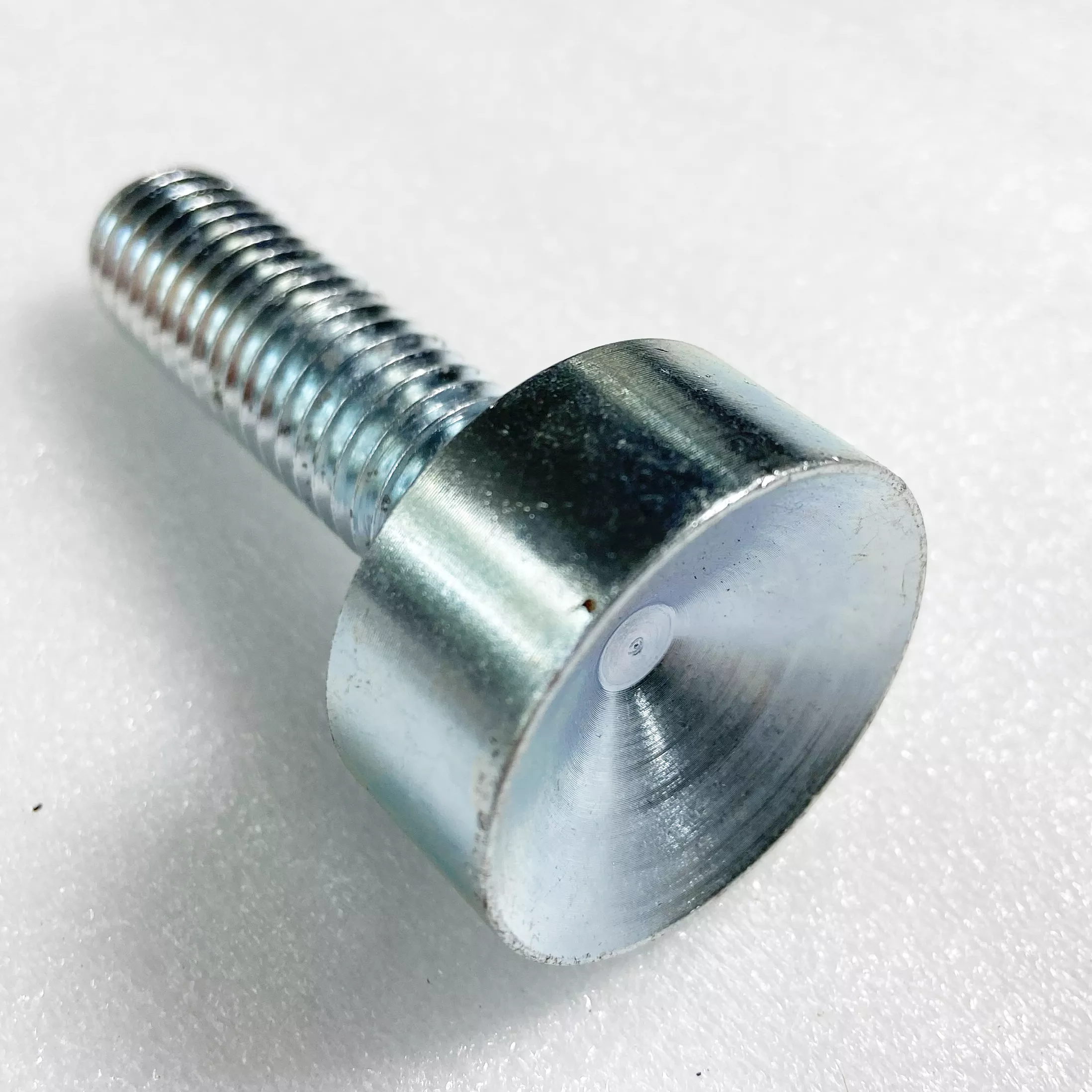

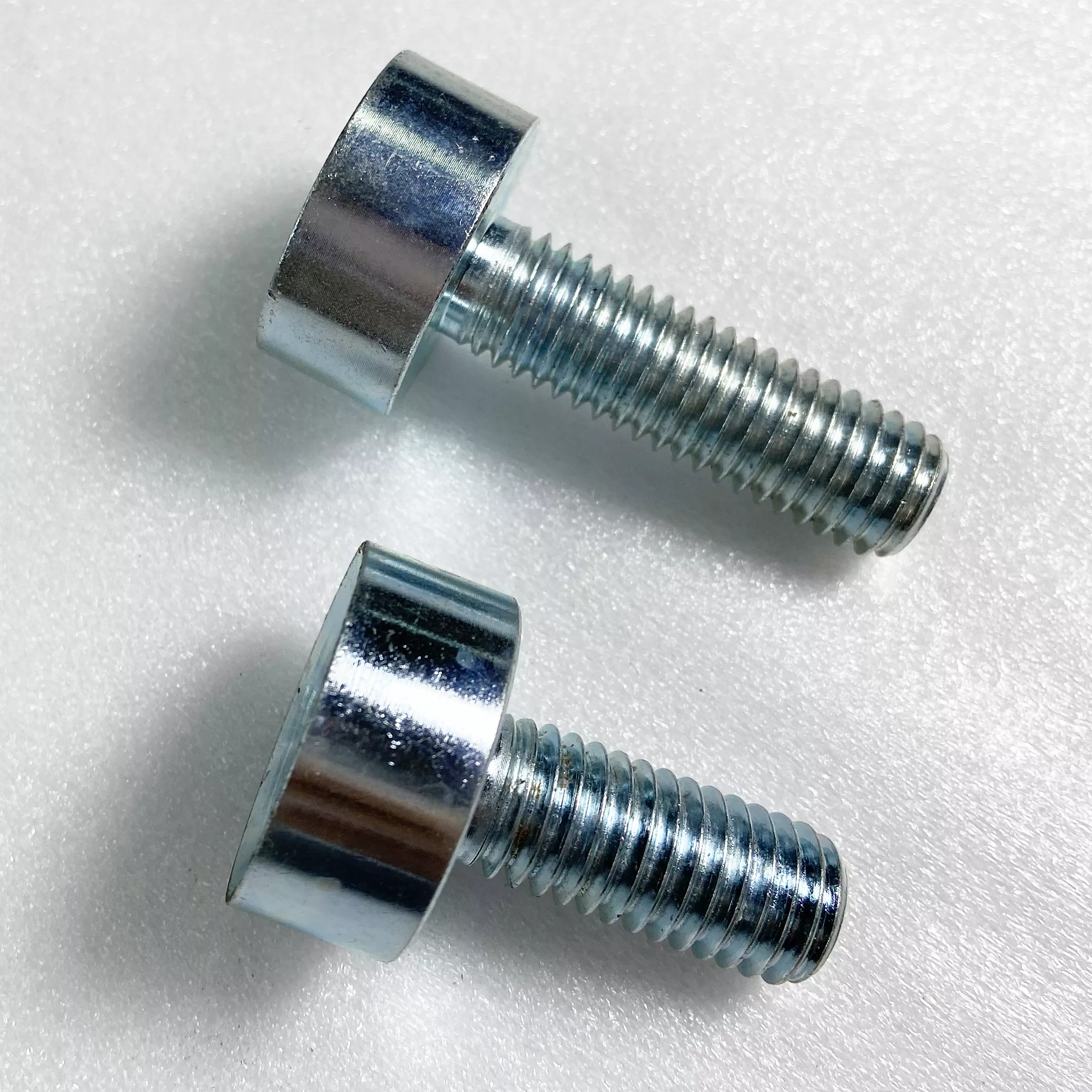

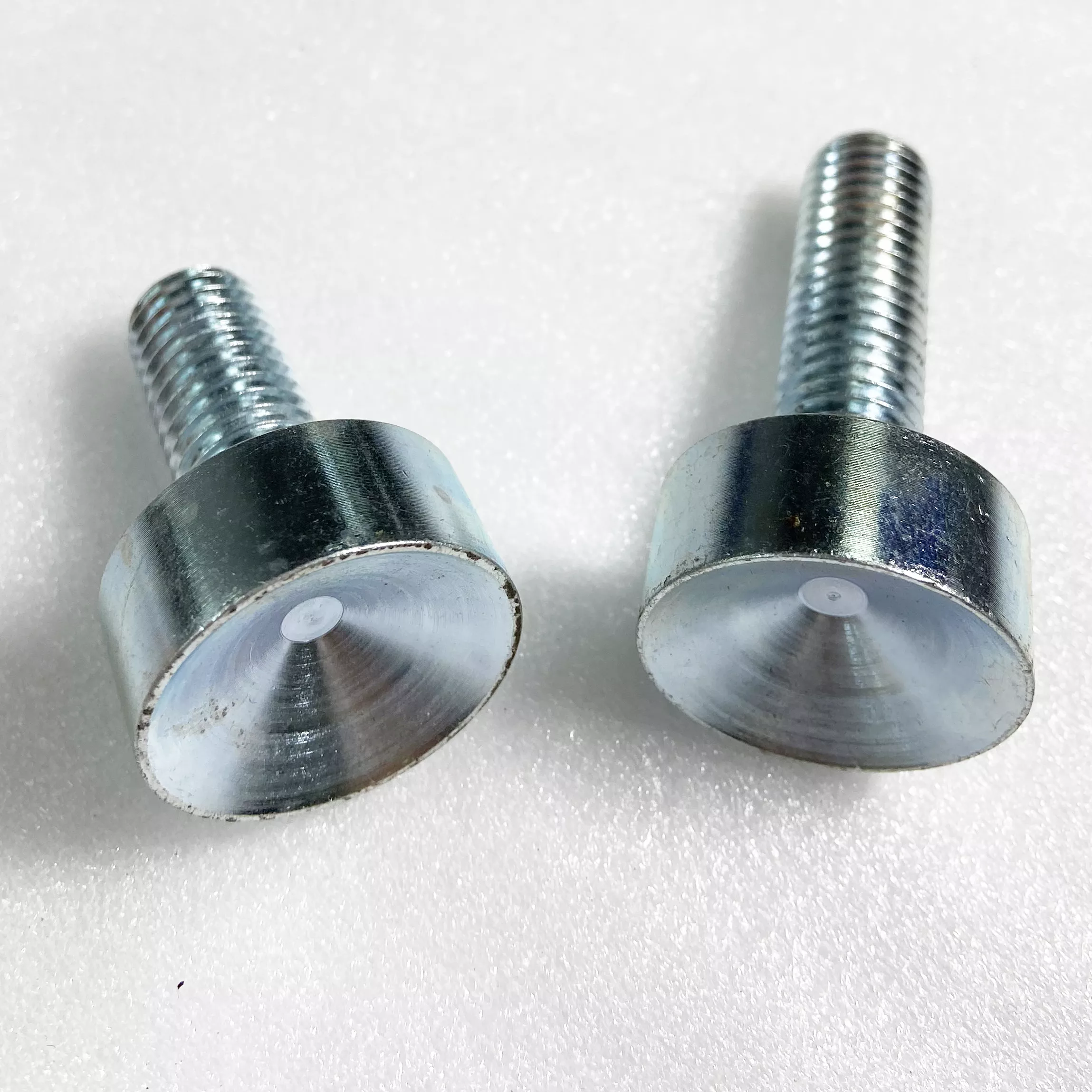

The examples show threaded shanks joined to broad cylindrical heads with recessed faces. Specify the thread form, pitch and engagement length, then dimension the head diameter, recess and transition to the shank from the assembly references.
Define the base metal and finish separately
For a steel component with zinc plating, state the steel grade and coating requirement. If another base metal is required, identify it separately; a material-options list does not specify the photographed component.
Provide the part drawing or CAD geometry, quantities and mating-thread information. Include finish allowances and inspection requirements for the finished threads, head dimensions and locating surfaces.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
