Custom Precision CNC Machining Stainless Steel Casting | Laser Drilling Milling Three-Flange Body Parts

• CNC Machining or Not

  CNC Machining
  Type

  Broaching, Drilling, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, drilling, laser processing, milling, turning
• Material Capabilities

  Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel
  Micro Machining or Not

  Micro Machining
• Is it micro-machined?

  micromachining
  surface treatment

  Anodizing, polishing
• Material

  aluminum/alloy/zinc/brass/copper
  Drawing format

  2D/(PDF/CAD)3D(IGES/STEP)
• filler

  Poly bag + inner box + carton
  Delivery time

  7-15 Davs
• Minimum order quantity

  one item
  OEM/ODM

  Add
• equipment

  Three-axis, four-axis, and five-axis machining center

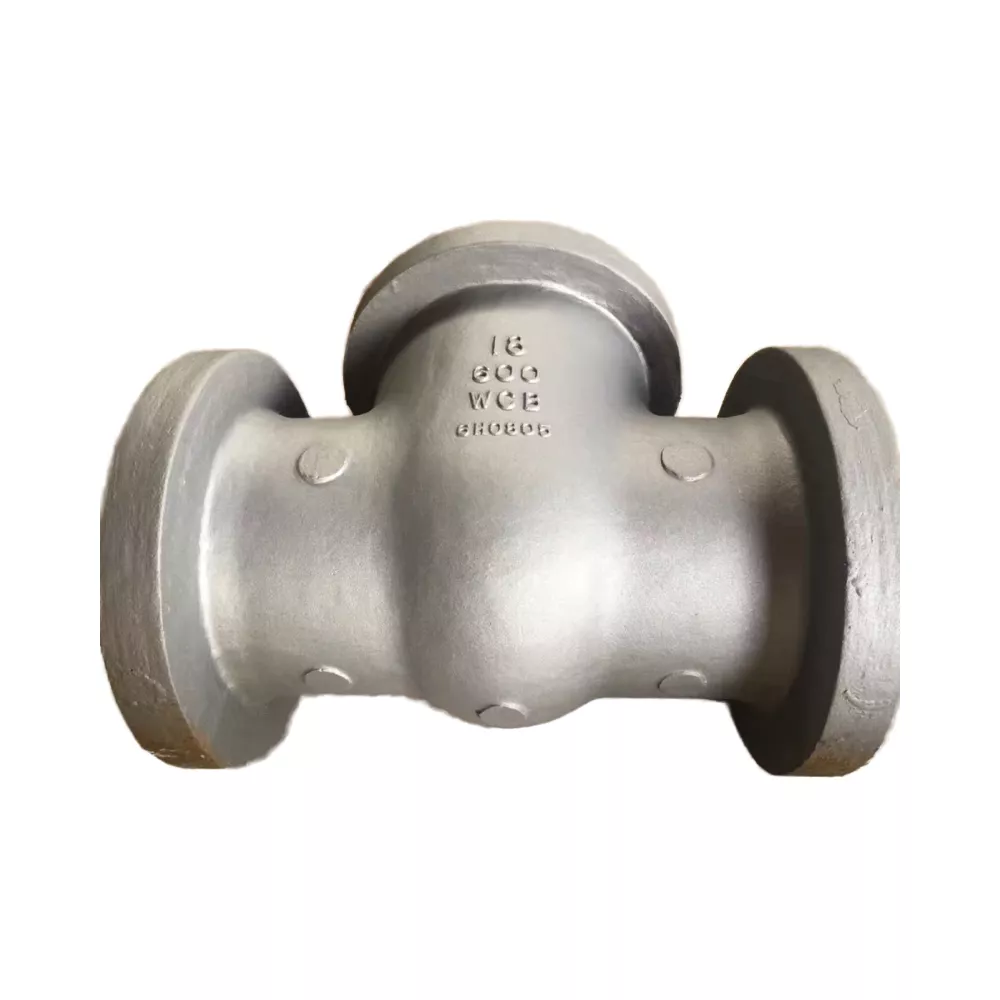

The example shows a T-shaped body with three flanged openings and visible cast markings. The markings do not independently verify alloy, pressure class or the ordered part specification.

Coordinate the three body connections

All three flanges need dimensional relationships to the internal passage. Use inspectable references for their orientation, faces and fixing holes.

• Define bore axes and their intersection geometry.
• Locate flange faces and fixing-hole patterns.
• Select stainless grade and blank-route proposal.
• Identify laser, drilling and milling features.
• Supply PDF/CAD or IGES/STEP drawing revisions.

Set machining and duty acceptance

Specify stock allowance, fitted surfaces and inspection methods. Any pressure or sealing duty needs an application-defined acceptance plan rather than reliance on a visible cast mark.

Agree the actual order quantity

The source combines a one-item reference with no-minimum wording. Confirm quantities, compatible finishing, delivery and documentation for the individual order; do not assume unconditional availability from the general process menu.

Our Custom Precision CNC Machining Stainless Steel Casting Laser Drilling Milling Services offer advanced manufacturing solutions for businesses requiring high-quality, custom metal components. Utilizing three-axis, four-axis, and five-axis machining centers, we precisely machine parts from a variety of materials including aluminum, alloy, zinc, brass, copper, and stainless steel, ensuring optimal performance and reliability.

We provide a wide range of machining services such as broaching, drilling, etching, chemical machining, laser machining, milling, turning, and micro-machining. Our expertise in micromachining allows us to deliver intricate components with exceptional accuracy, ideal for industries that demand tight tolerances and fine detail.

To enhance durability and appearance, we offer surface treatments including anodizing and polishing. We accept both 2D and 3D drawing formats (PDF, CAD, IGES, STEP) to support your design requirements, and all products are securely packaged with poly bag, inner box, and carton for safe delivery.

With fast production times of 7-15 days and no minimum order quantity, our OEM/ODM services are tailored to your specific needs. Choose our custom CNC machining services for professional, reliable, and efficient metal part production.
