Custom Steel Sheet Metal Plate Fabrication and Stamping for Electronics Mounting Trays
-
Model NumberDML240901Product nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing

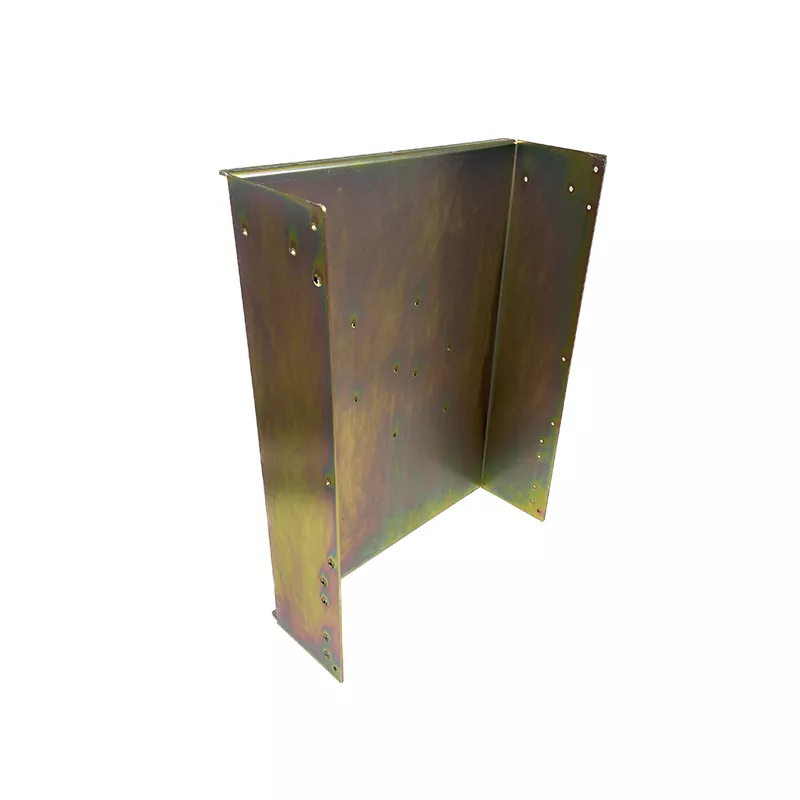

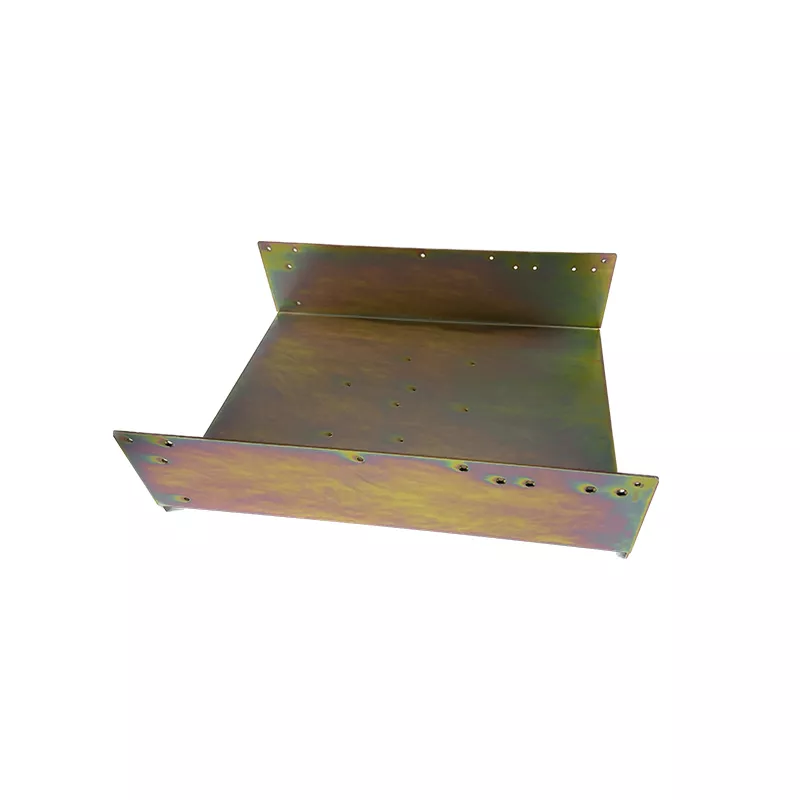

This DML240901 fabrication example is a broad sheet metal tray with folded perimeter sections, holes along the sides and multiple mounting features across the face. The custom steel plate fabrication and stamping service supports drawings for electronic mounting assemblies.
Define the mounting surface
The tray drawing should locate the face features and side holes from consistent reference edges. Show the finished wall heights, any return flanges and the sheet thickness. Where electronic components or subassemblies attach, include their mounting footprint and the space needed around them.
Drawing and order information
- Accepted drawing formats listed for this item are STEP, STP and PDF.
- Powder coating is the listed finishing service; specify the required coating, color and any surfaces that must remain clear.
- The recorded minimum order quantity is 100, with individual packing listed.
Provide the material designation, drawing revision and required quantity when requesting a quotation. Identify the dimensions and attachment features that govern assembly fit so that fabrication and inspection can be reviewed together.
