Custom A380 ADC12 Aluminum Die Casting Enquiries | Open Ribbed Mounting Parts
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS240304Materialaluminum /iron /steel/ zamac/cooper etc
-
ApplicationIndustrySurface treatmentPowder Coating /Painting / CNC /Anodizing etc.
-
ProcessCasting +Machining(if Need)+surface TreatmentCertificationISO9001/TS16949/RoHS
-
Quality Control100% Inspected /ISO9001 SystemDrawing format2D/(PDF/CAD)3D(IGES/STEP)
-
MOQNegotiablePackingPoly Bag + Inner Box + Carton
-
StandardEN124 Standard/EN1433/Customized

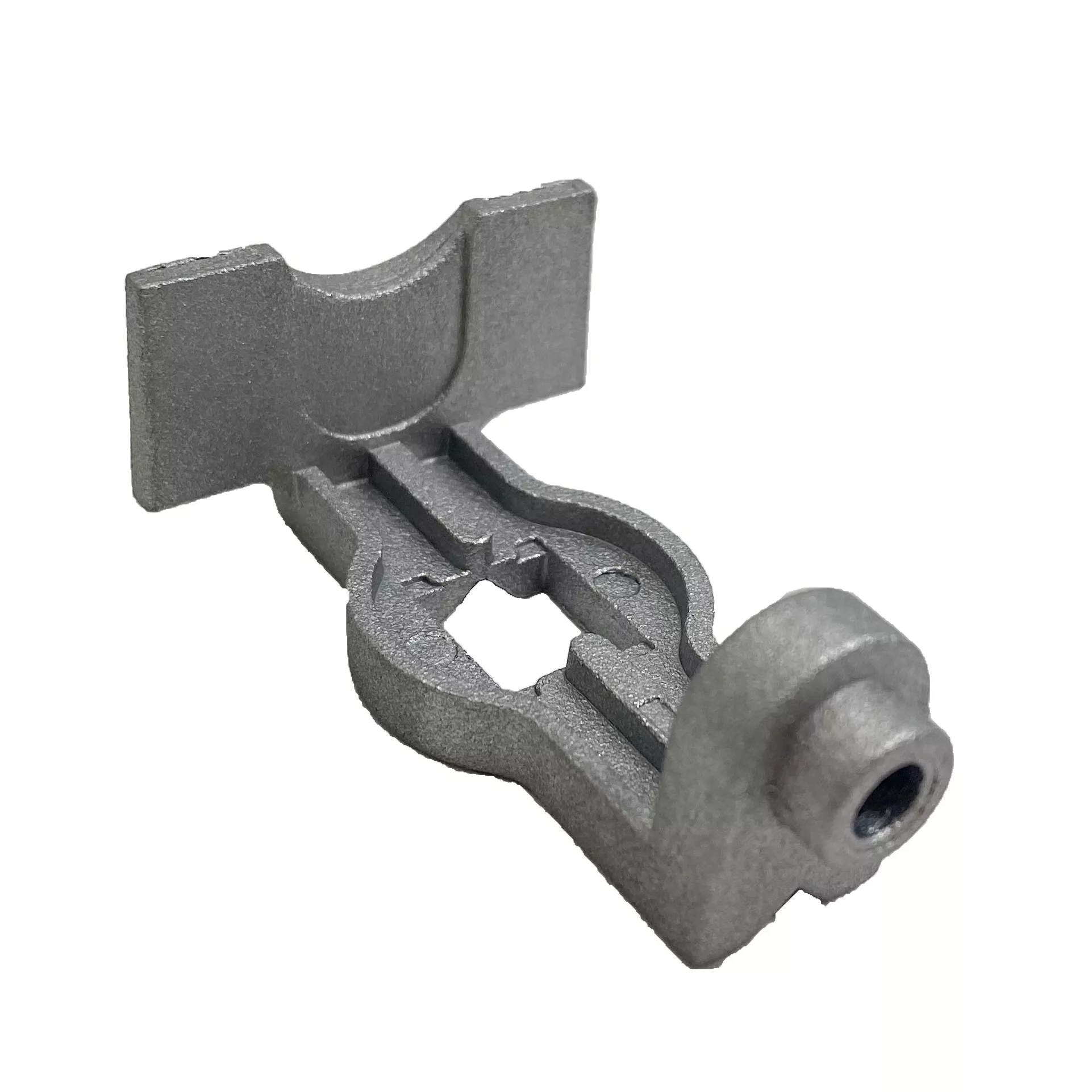

Bored end connected to an open ribbed body
The example has a raised rear section, connecting ribs and a round opening at the opposite end. Define the bore axis and mounting references with the open sections and contact faces.
Specify A380 or ADC12 and the required material records if one is requested. Identify the casting route separately; the broad material and casting entries do not establish a grade or specific process for this body.
Finished mount requirements
Provide quantities, finish and machining details. Mark bore fit and alignment criteria for inspection. General certification listings do not establish a structural or service rating for the component.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
