Custom Industrial Aluminum Alloy Parts | Low Pressure and Die Casting Brackets

• Model Number

  S2407
  Material

  aluminum /iron /steel/ zamac/cooper etc
• Application

  Industry
  Surface treatment

  Powder Coating /Painting / CNC /Anodizing etc.
• Process

  Casting +Machining(if Need)+surface Treatment
  Certification

  ISO9001/TS16949/RoHS
• Quality Control

  100% Inspected /ISO9001 System
  Drawing format

  2D/(PDF/CAD)3D(IGES/STEP)
• MOQ

  Negotiable
  Packing

  Poly Bag + Inner Box + Carton
• Standard

  EN124 Standard/EN1433/Customized

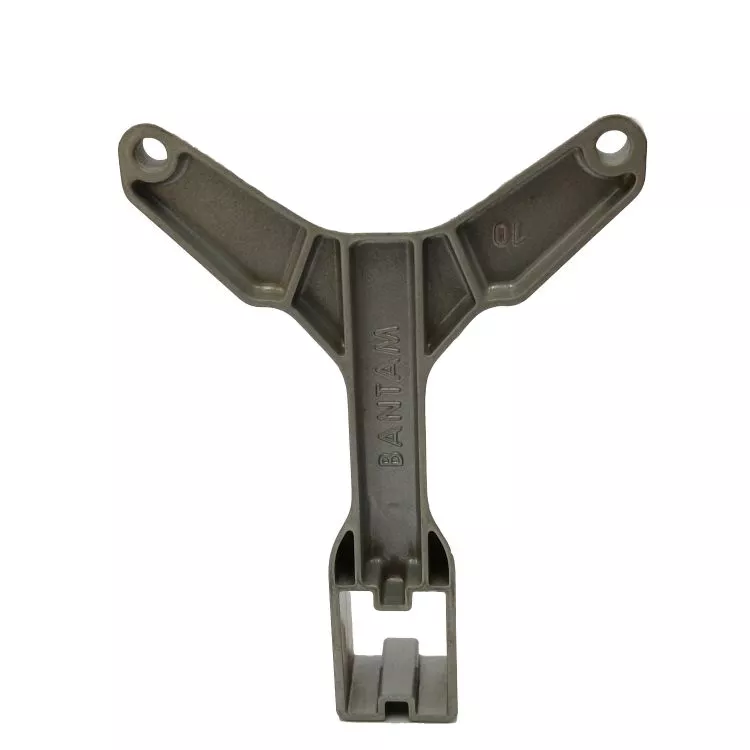

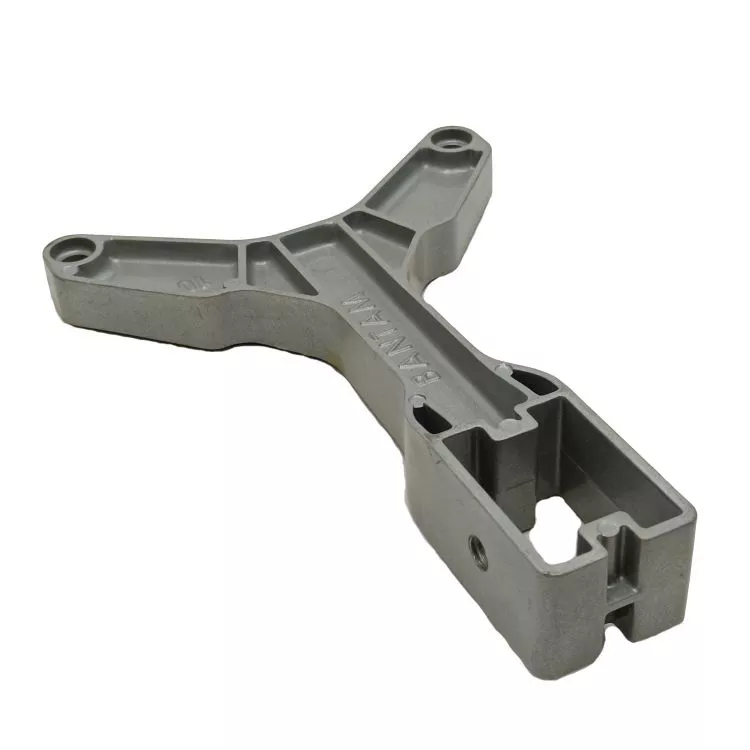

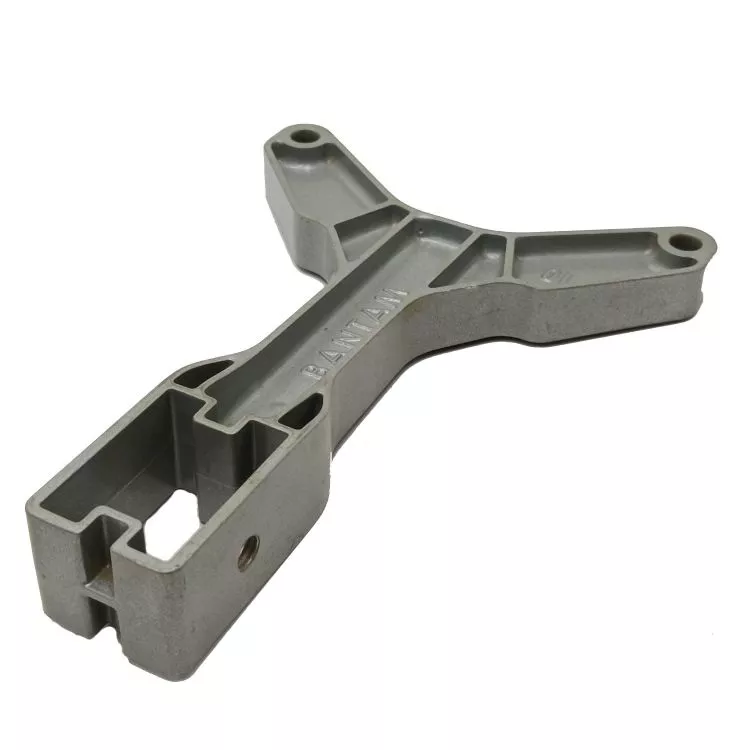

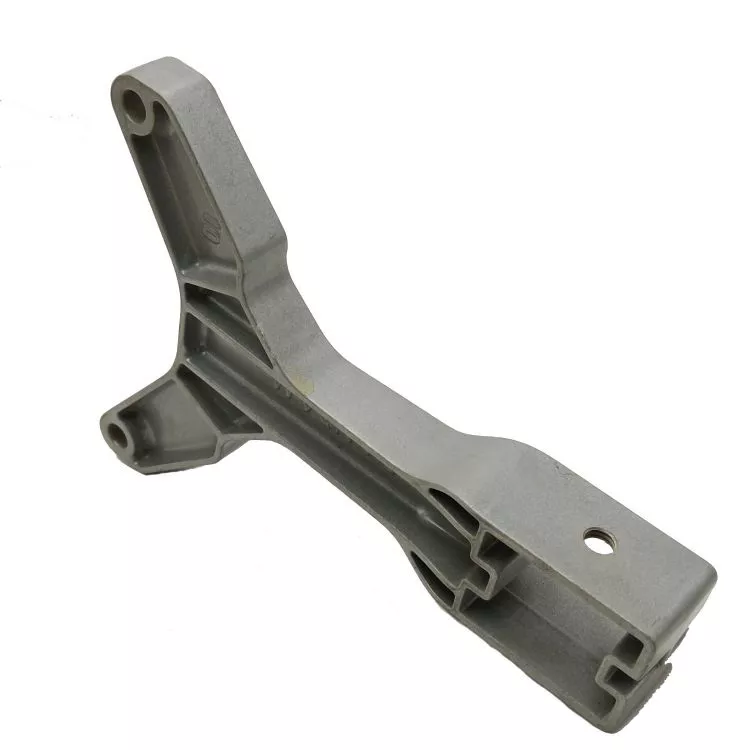

Define the branched bracket through its upper arms and wider lower interface. The example has round openings at the arm ends, intersecting ribs and a side hole in the open-wall lower region. Its appearance does not establish a load rating, actual alloy or compatibility with a particular assembly.

Locate the arm ends from the lower body

Dimension the two upper openings, arm sections and lower mounting geometry from shared datums. Show the internal rib relationships and any hidden regions affecting manufacture or inspection. Provide the actual mating parts where they control alignment, engagement or installation clearance.

• Identify the branched bracket and controlled revision.
• Specify actual aluminum alloy and required condition.
• Locate arm openings and lower-body interfaces.
• Choose the forming and secondary-machining plan.
• Agree finish and final acceptance evidence.

Select the casting and finishing requirements

Review low-pressure or the agreed die-casting direction for the selected component design. Other metal choices are separate material requests. Identify CNC machining at the interfaces needing dimensional work, then specify any compatible coating, painting or other treatment with masking boundaries defined.

Accept the bracket for its actual service

Provide PDF/CAD or IGES/STEP geometry with units, tolerances and final measurement conditions. If a standard, certification or inspection-coverage requirement applies, identify its actual scope and supporting evidence. A general catalogue reference is insufficient to establish the bracket's qualification.

Include quantities, intended use and any required functional tests. Loads or movement limits must follow the approved design and defined acceptance methods rather than an assumption based on the two-arm form.

The Dmetal Aluminum Casting Industrial Die Cast Aluminum Alloy Parts are expertly crafted to meet the demanding requirements of various industrial applications. With a model number S2407, these components are constructed from high-quality aluminum, although options for iron, steel, zamac, and copper are also available. Each piece is meticulously designed to ensure maximum durability and performance in industrial environments.

These aluminum parts undergo a comprehensive manufacturing process that includes casting, machining (if needed), and surface treatment. The surface treatment options such as powder coating, painting, CNC machining, and anodizing allow for customization to suit specific aesthetic or functional requirements. This flexibility ensures that your components not only perform excellently but also align with your project specifications.

Adhering to international standards, our products are certified under ISO9001, TS16949, and RoHS, ensuring reliable quality and compliance. Each part undergoes a stringent quality control process, with 100% inspection conducted under the ISO9001 system to guarantee that only the best products reach our customers.

We accommodate custom designs and can work with various drawing formats, including 2D (PDF/CAD) and 3D (IGES/STEP), allowing for easy integration into your existing projects. With a negotiable minimum order quantity, we cater to both small-scale and large-scale production needs.

Packing is done securely using poly bags, inner boxes, and cartons to protect the integrity of each item during transit. Our products meet standard specifications such as EN124 and EN1433, and customized solutions are available upon request.
