• Model Number

  S240304
  Material

  Aluminum/Stainless Steel/Iron/Cooper/Brass/Zinc etc...
• Application

  Industry
  Surface treatment

  Paint/Powder coating/oxidation etc
• Process

  Die Casting-deburring- Machinery
  Mold making

  On-site
• Service

  OEM ODM
  Feature

  Eco Friendly
• Quality Control

  Professional Inspection
  Drawing format

  2D/(PDF/CAD)3D(IGES/STEP)
• Certification

  ISO9001/ISO14001/IATF16949

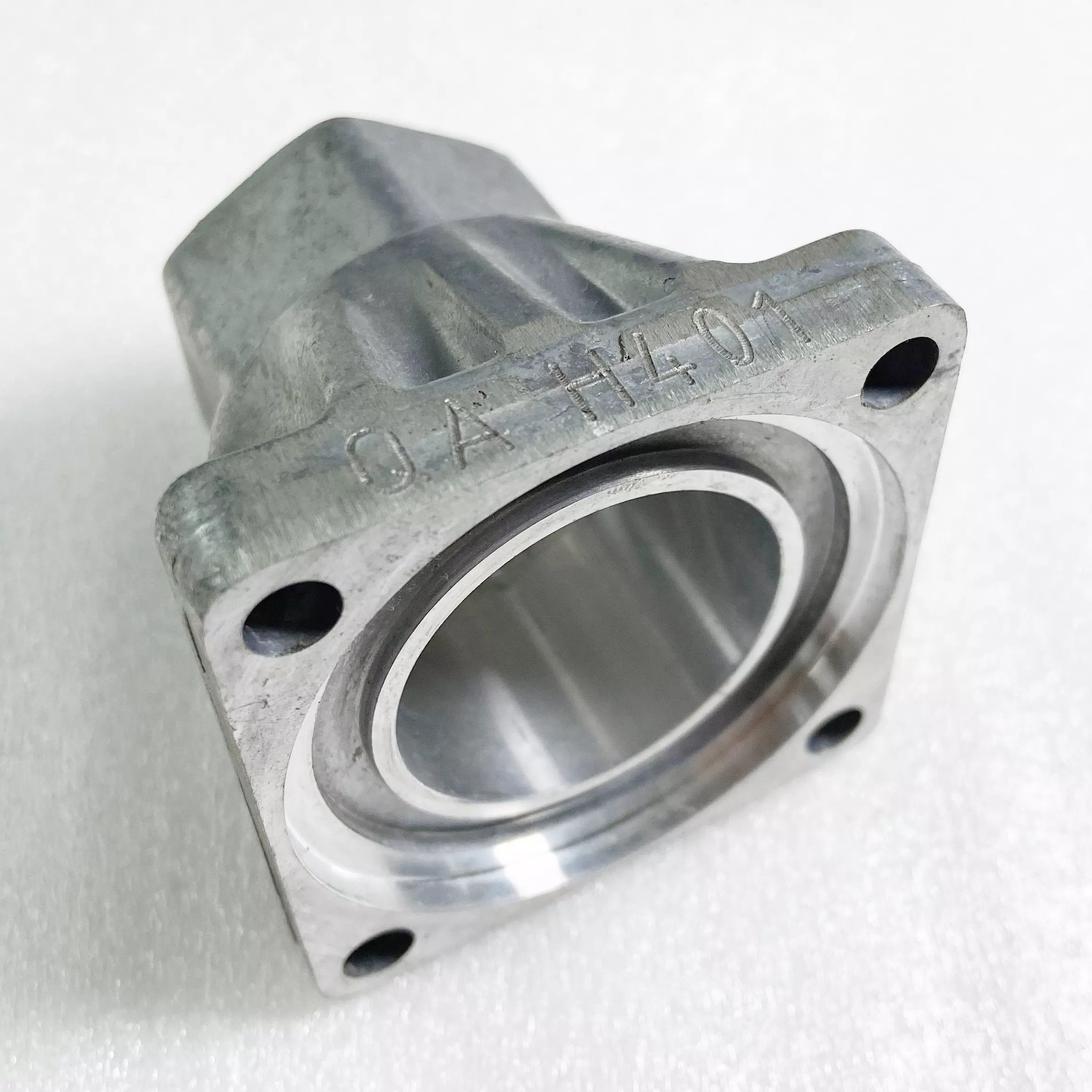

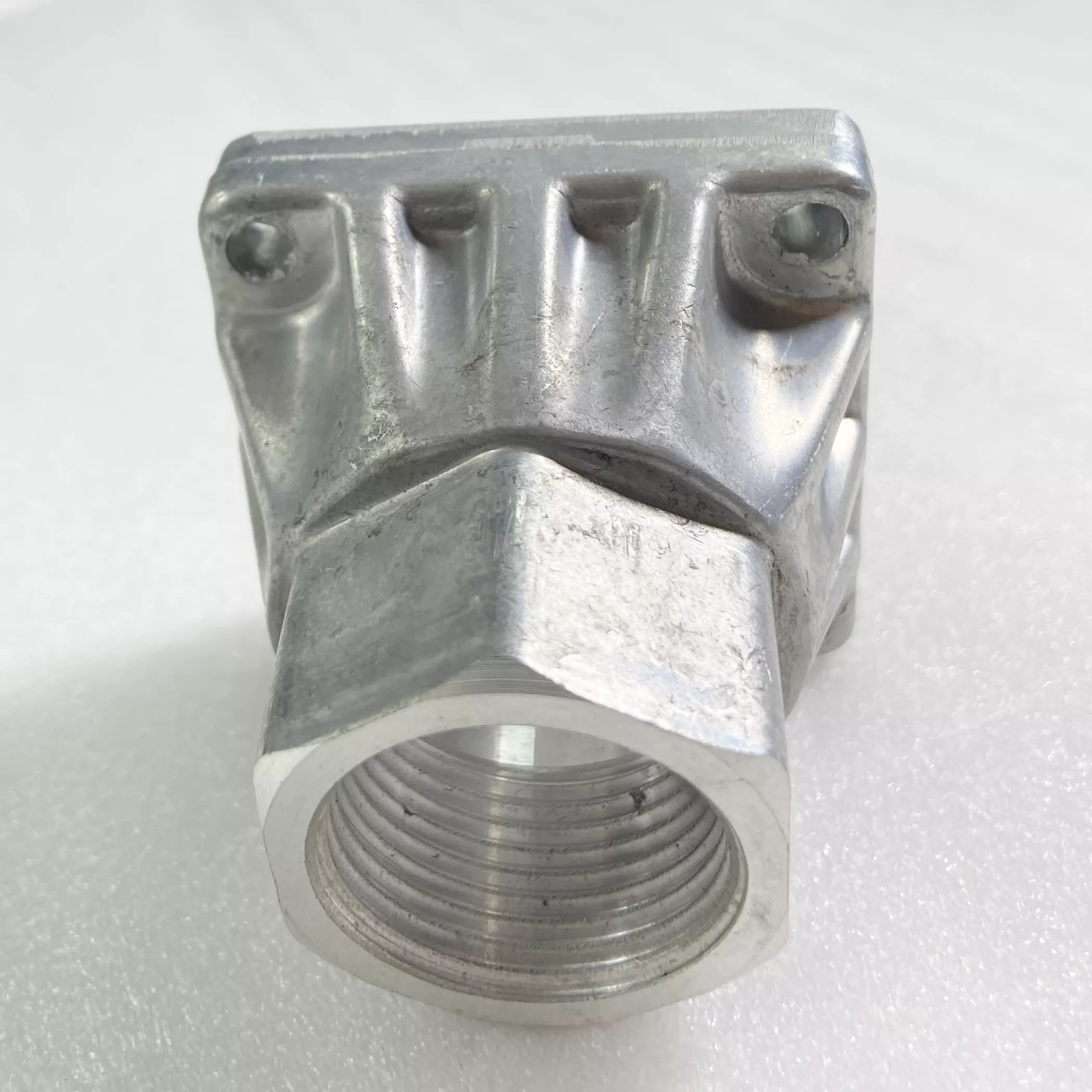

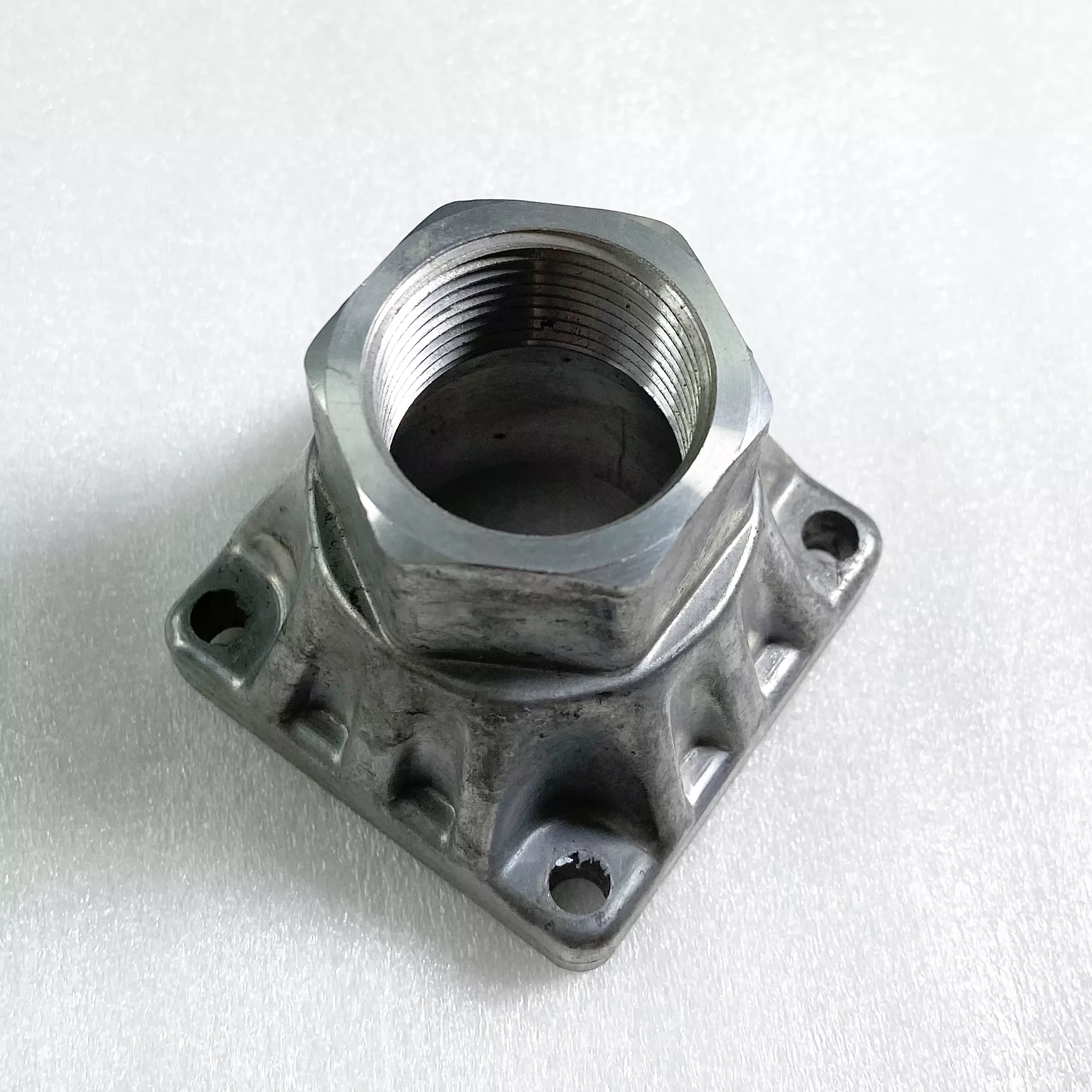

Locate the threaded neck relative to the square mounting flange when defining this housing component. The example has four corner fixing holes, reinforcing ribs and a raised hexagonal neck around a large internally threaded-looking opening. Its appearance does not establish a thread standard or an actual material grade.

Define the flange and raised neck relationship

Provide the mounting pattern, flange section and neck position from assembly datums. Specify the actual internal connection with its checking requirements. Show any hidden geometry needed to understand the housing and supply mating details where they control alignment, engagement or clearance.

• Identify the flange-housing drawing and revision.
• Select actual iron or aluminum and required condition.
• Locate neck, mounting holes and contact faces.
• Define casting, thread machining and compatible finish.
• Agree supplied scope and final inspection records.

Select one material and manufacturing plan

Cast iron and aluminum housing castings are separate project directions. Other metal options likewise require explicit specification. Provide controlled PDF/CAD or IGES/STEP geometry and select the forming route for the actual design, rather than assuming one general die-casting plan applies to every material.

Accept the finished mounting and connection surfaces

Mark the interfaces requiring machining and state units, tolerances and final measurement conditions. Choose any compatible surface treatment with masking and appearance requirements identified. Required certifications must be supported by current evidence applicable to the actual project rather than by a generic parameter label.

Include quantities, intended service and any functional tests. The threaded-looking form proves neither fluid compatibility nor pressure capability; define the actual conditions, methods and limits that determine acceptance of the supplied housing.

Elevate your manufacturing process with our Dmetal Cast Iron Parts Aluminum Housing Precision Casting Parts. Crafted from high-quality materials including aluminum, stainless steel, iron, copper, brass, and zinc, these precision casting parts are engineered to meet the rigorous demands of various industrial applications.

Our advanced die casting process ensures that every part is meticulously shaped and deburred to perfection. The addition of surface treatments such as paint, powder coating, and oxidation enhances durability and aesthetic appeal, making these parts suitable for a wide range of environments.

With a focus on quality, our parts undergo professional inspection, adhering to stringent quality control standards. Certifications such as ISO9001, ISO14001, and IATF16949 guarantee that you receive products that meet international benchmarks.

We understand the importance of customization in today’s market. Our OEM and ODM services allow you to tailor parts to your specific requirements, ensuring a perfect fit for your projects. Drawings can be provided in various formats including 2D (PDF/CAD) and 3D (IGES/STEP) for your convenience.

Choose Dmetal for eco-friendly solutions without compromising on quality. Invest in our precision casting parts and experience the difference that expertly crafted components can make in your operations.
