Custom Anodized Aluminum CNC Machining Parts with Rounded Ends Stepped Diameters and Cross Holes
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2406Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm
Rounded end and cross-hole machining

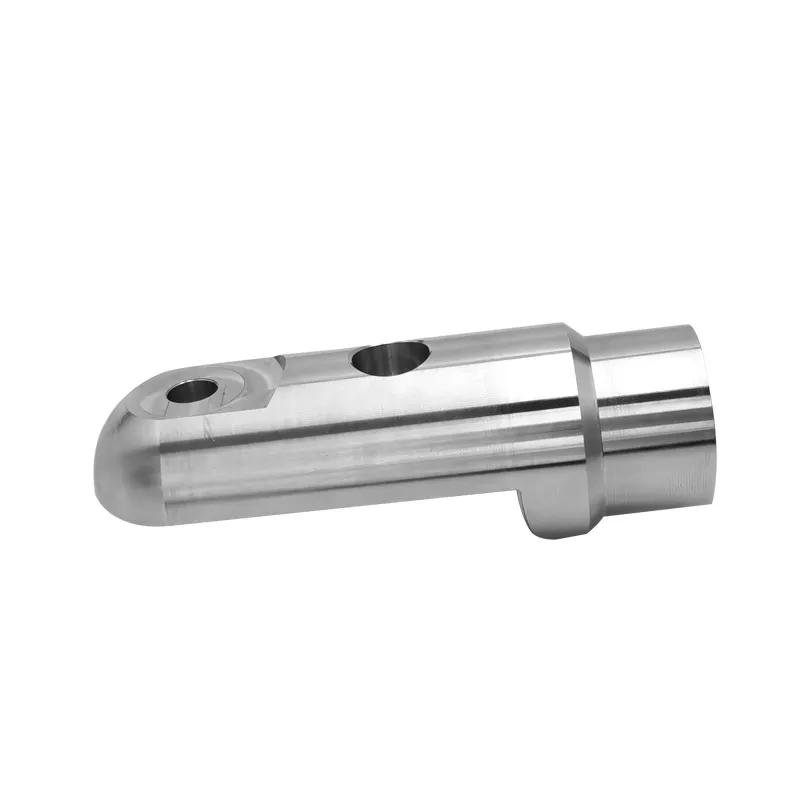

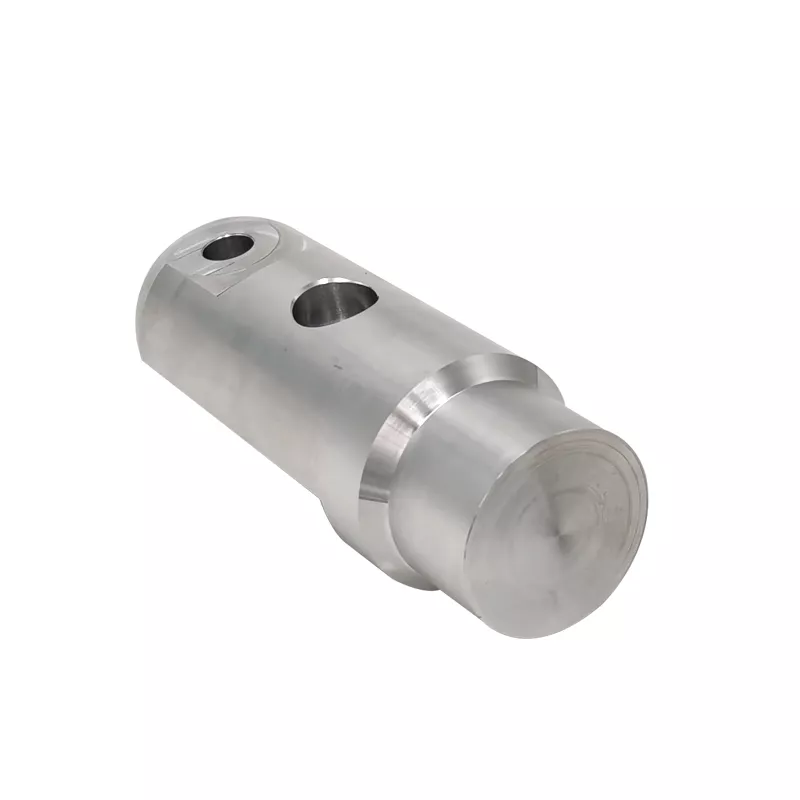

The illustrated component combines stepped cylindrical sections with a rounded end, a relieved flat area and transverse holes. Dimension these features from the main axis and shoulder faces so the hole locations and fitted lengths can be reviewed together.
S2406 lists aluminum alloy, CNC machining, deburring and surface treatment. Specify anodizing or another listed finish and identify the mating surfaces where coating allowance matters. Provide PDF, CAD, IGES or STEP drawings, alloy selection and quantities. The minimum order shown for this enquiry is 100 pieces.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
