Custom Sheet Metal Fabrication and Stamping Parts with Bent Channel Brackets and Mounting Holes
-
Model NumberS2402 2407RDrawing Format2D/(PDF/CAD) / 3D(IGES/STEP/STP)
-
MaterialGalvanized Plate / Steel /Aluminum /Stainless Steel Sheet PlateFinishPainting/ Anodizing/ Powder Coating/Nickel Chrome Plating
-
ColorPanton Color and Ral Color SupportedCertificateISO9001/ROHS/IATF16949
-
ProcessSheet Metal Fabricating + CNC + Surface TreatmentLogoAccept Customized Logo
-
PackingPlastic Bag + Carton + Plywood Pallet

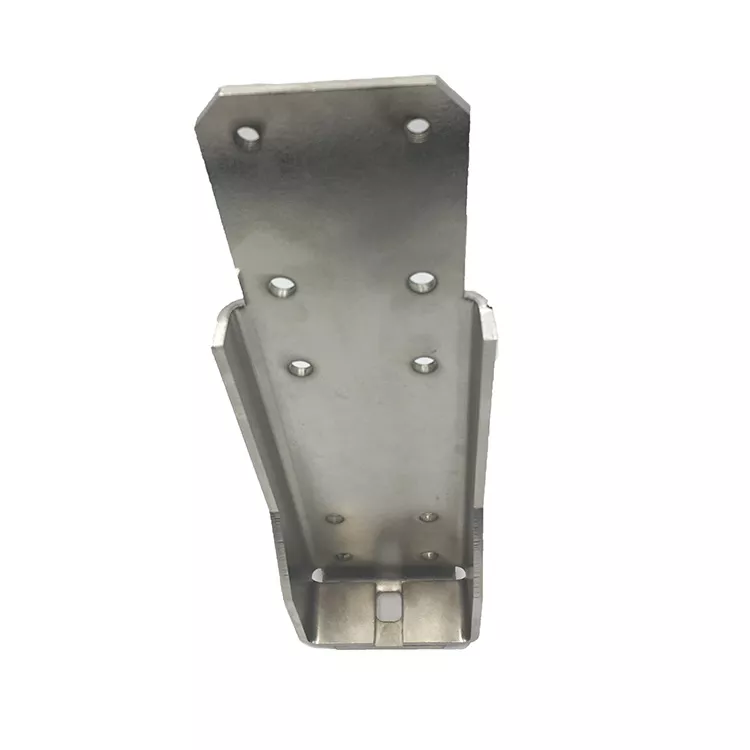

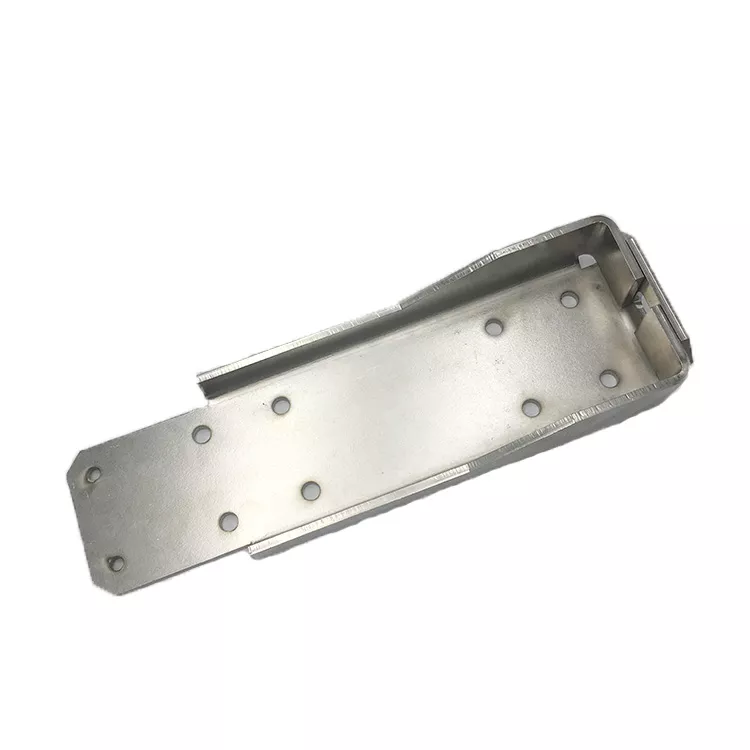

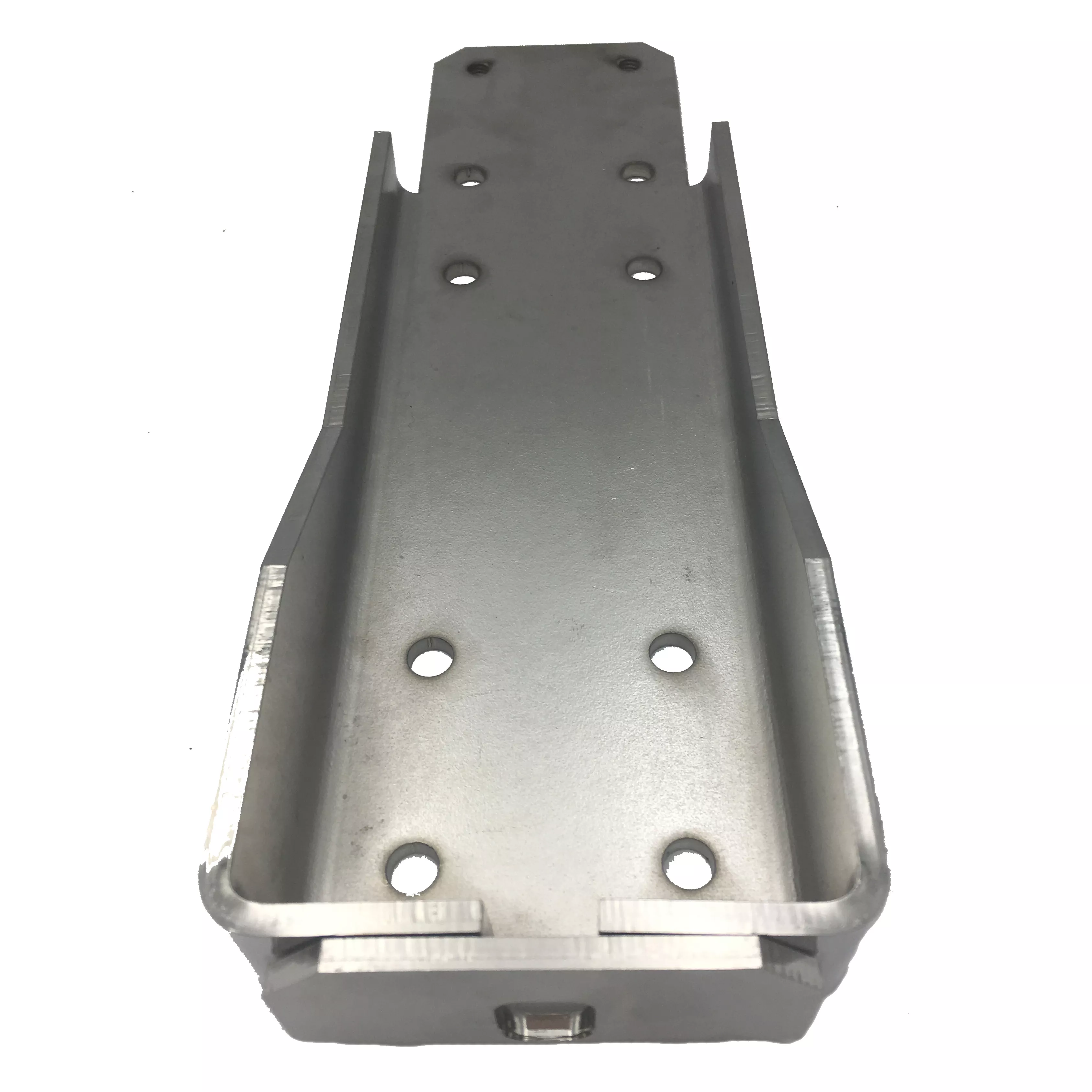

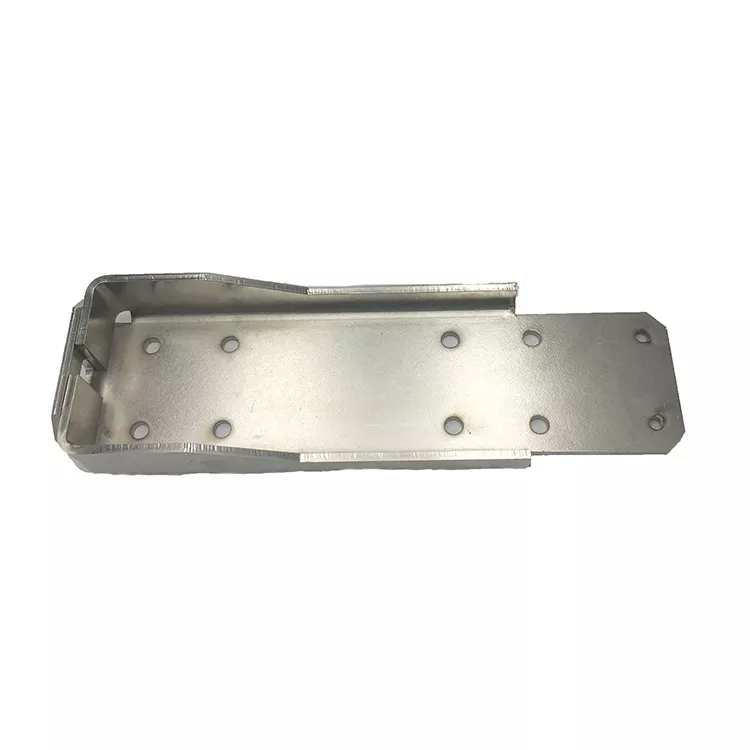

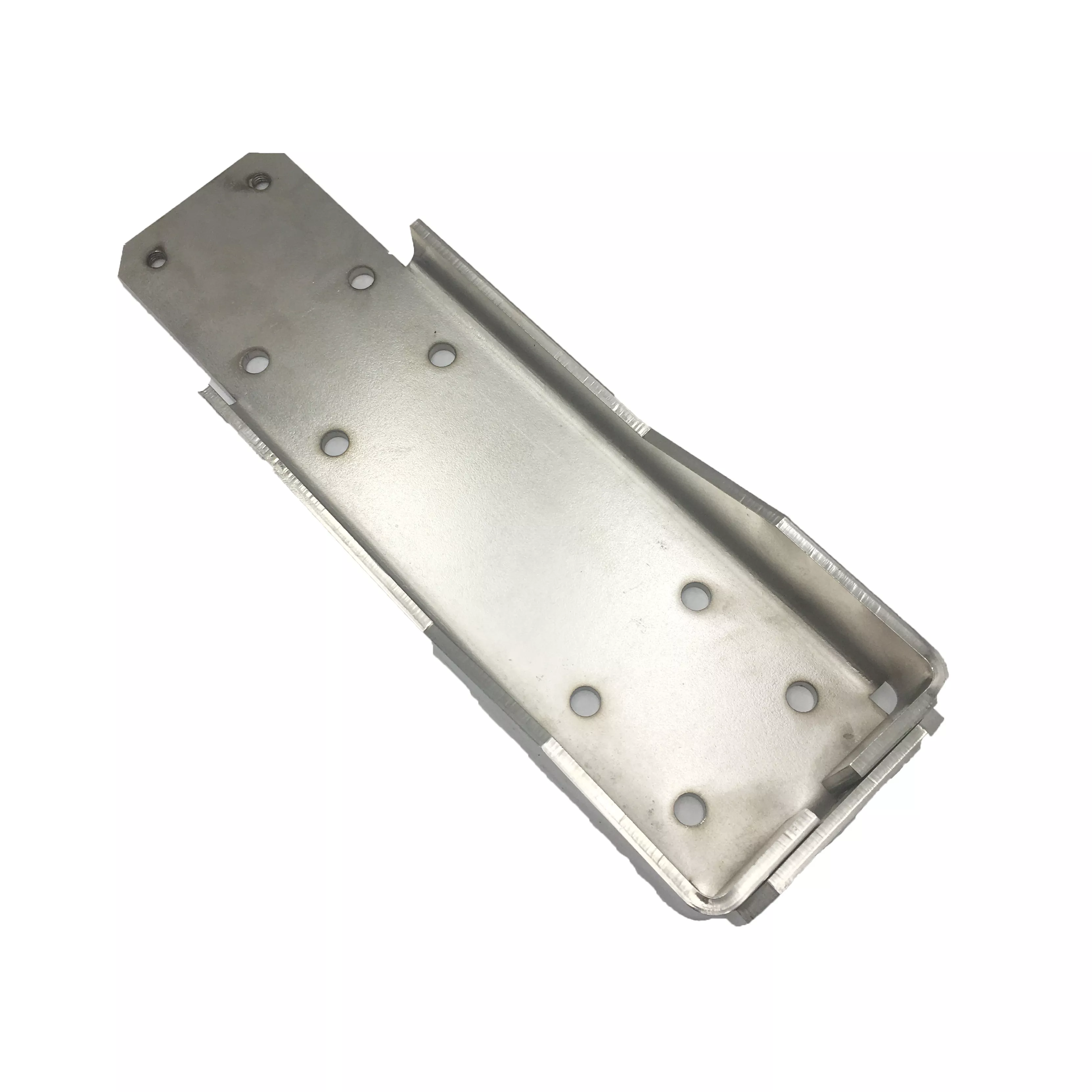

S2402 2407R custom metal fabrication enquiries include the pictured channel bracket with raised sides, a formed end and a series of mounting holes. The extended flat section and formed region should be shown together in the part drawing. The listing covers sheet metal fabrication, CNC work and surface treatment.
Bracket references and hole pattern
Specify the length and width, side height and the relationship between the holes and formed edges. Identify the mating surfaces and any threaded features required by the actual design. The photograph does not establish a standard hole spacing or fastener size.
Galvanized plate, steel, aluminum and stainless steel sheet are listed materials. Select the exact grade and thickness, then define the required finish. Painting, anodizing, powder coating and nickel/chrome plating are options to review against material compatibility and the ordered surfaces.
Quotation files
Send 2D and 3D files where available with revision and quantity. Include the dimensional acceptance points and the required color reference. Confirm the component's supply scope and any material or inspection records needed before approving the manufacturing proposal.
