Custom Aluminum and Stainless Steel Laser Cutting Sheet Metal Bending and Stamping Tray Panels
-
Model NumberLZXMaterialsteel, stainless steel, aluminum, galvanized steel,
-
SizeCustomized sizeApplicationMachinery/Industry/Home/Automotive
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
TypeOEM PartsEquipmentCNC Bending/Stamping Machine/Laser Marking

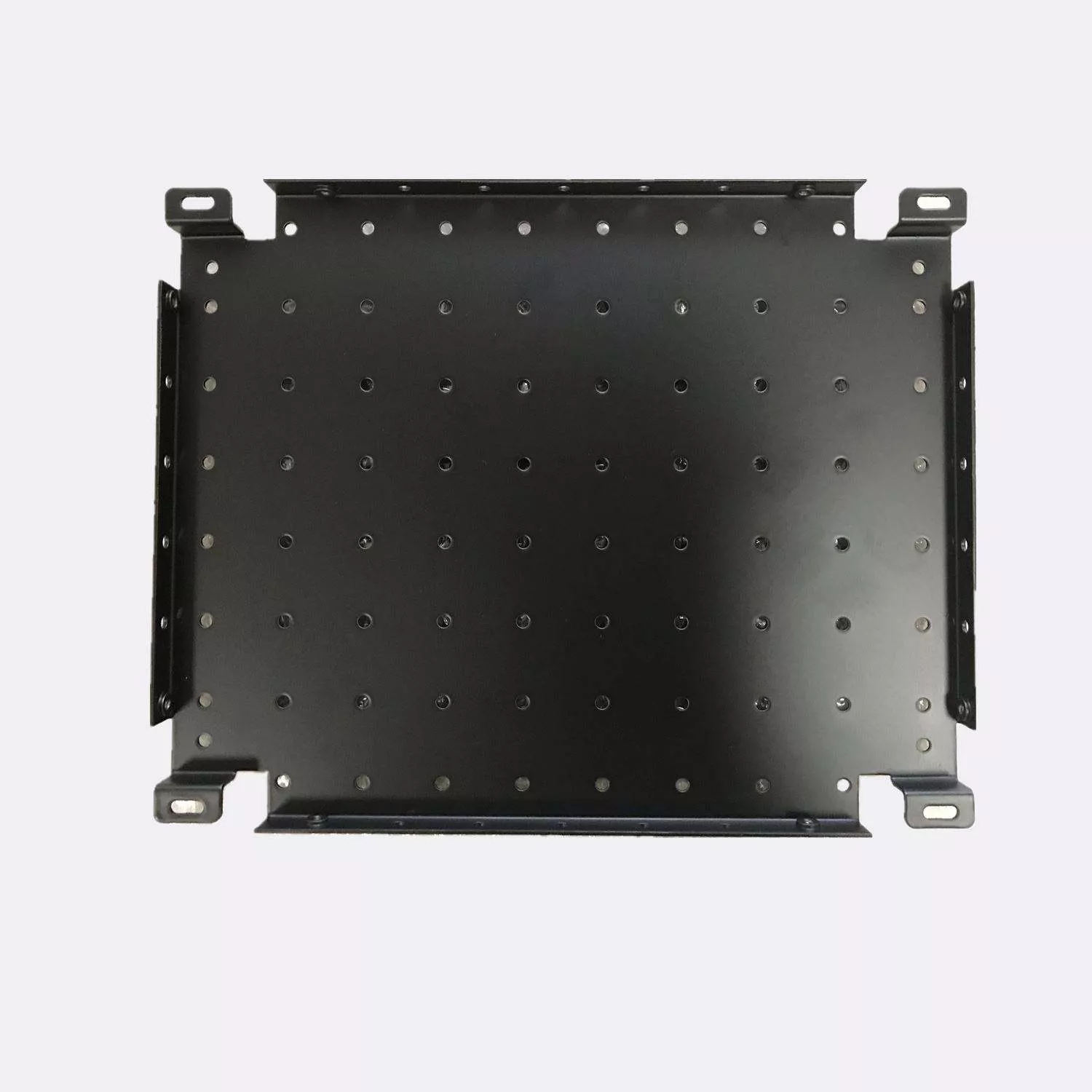

Tray panels with notched corners and formed sides
This sheet metal example has a broad flat face, folded perimeter sections and an offset corner profile. Round openings and raised fastening features appear across the face, with additional holes in a folded edge. The listing covers custom laser cutting, bending and stamping fabrication for model LZX.
Use the drawing to define the outer profile, corner notch and finished wall heights. Locate the face holes and flange holes from clear datum references. Where a fastening feature is needed, provide its thread or fitting specification and explain how the mating component attaches; these details cannot be established from surface appearance alone.
Material and finished dimensions
Aluminum, stainless steel, steel and galvanized steel are listed choices, with custom dimensions and color. Select the required metal and surface treatment for the intended part. The CNC bending and stamping equipment named in the source information describes the fabrication service, while the final drawing determines which operations are needed.
Provide sheet thickness, required quantity and drawing revision with the enquiry. Mark any flatness, wall-position or hole-location requirements relevant to the installation so they can be reviewed with the finished part geometry.
