Product description
Project & Delivery Requirements
-
Model Number2306Materialsteel, stainless steel, aluminum
-
SizeCustomized sizeApplicationMachinery/Industry/car
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
PackingCartonTypeOEM Parts
-
EquipmentCNC Bending/Stamping Machine
Separate drawings for the fabricated components

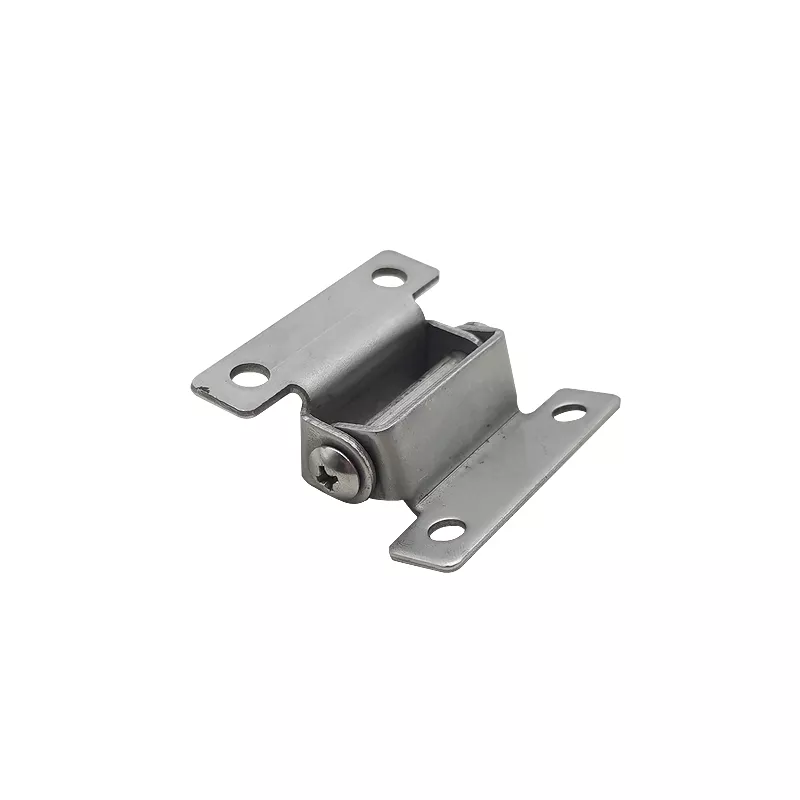

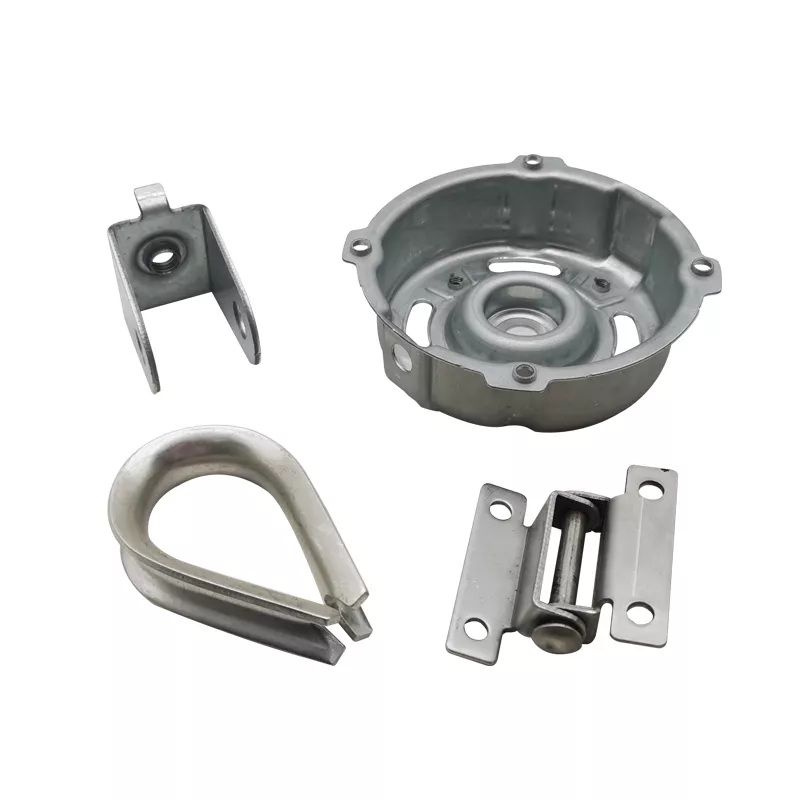

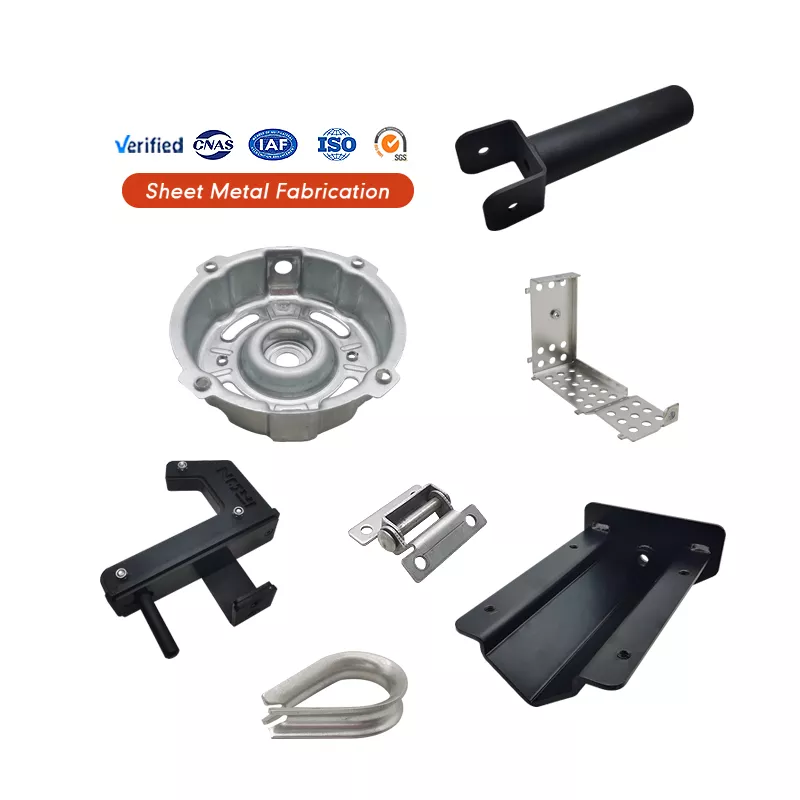

The example range includes open brackets, enclosure panels, a small box, clamps and a formed strip. Select the required component and identify its mounting faces, holes, folds and any joining details on its own drawing.
Specify steel, stainless steel or aluminum with the grade and sheet thickness. State which features require cutting, stamping, bending or subsequent CNC work; the image group does not establish that every part uses every operation.
Assembly and finish information
Include quantities, finish and drawing revision, with any mating-component clearances. Mark bend dimensions and fastening interfaces for inspection. Repeated views of the same assortment do not independently verify different sizes, material selections or supplied kits.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
