Custom Aluminum CNC Machining Prototype Milled and Turned Parts with Recessed Pockets
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2307Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

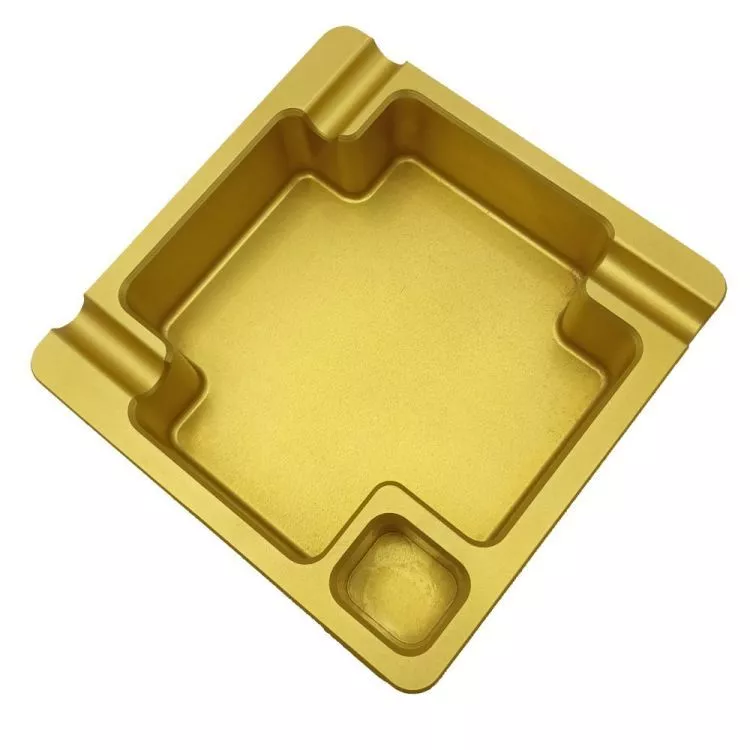

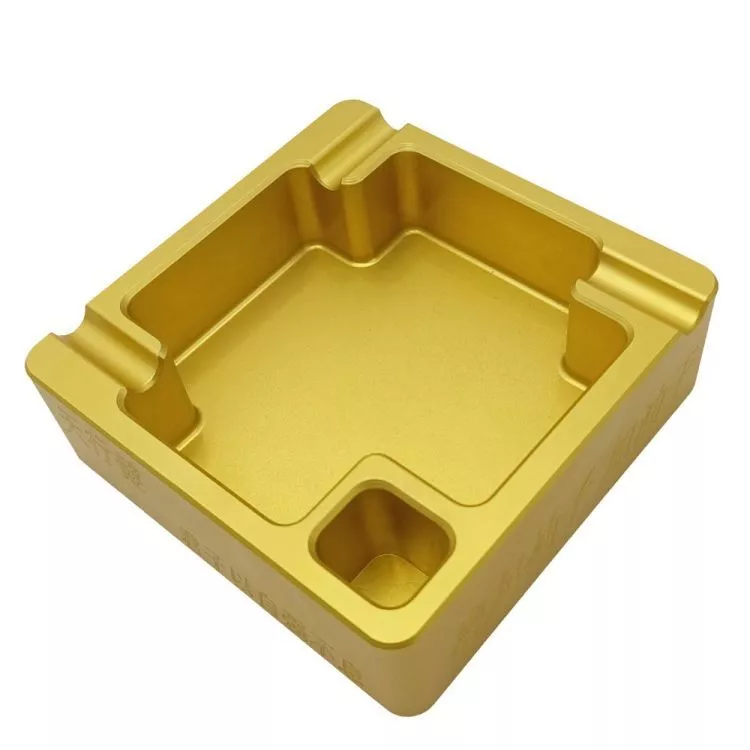

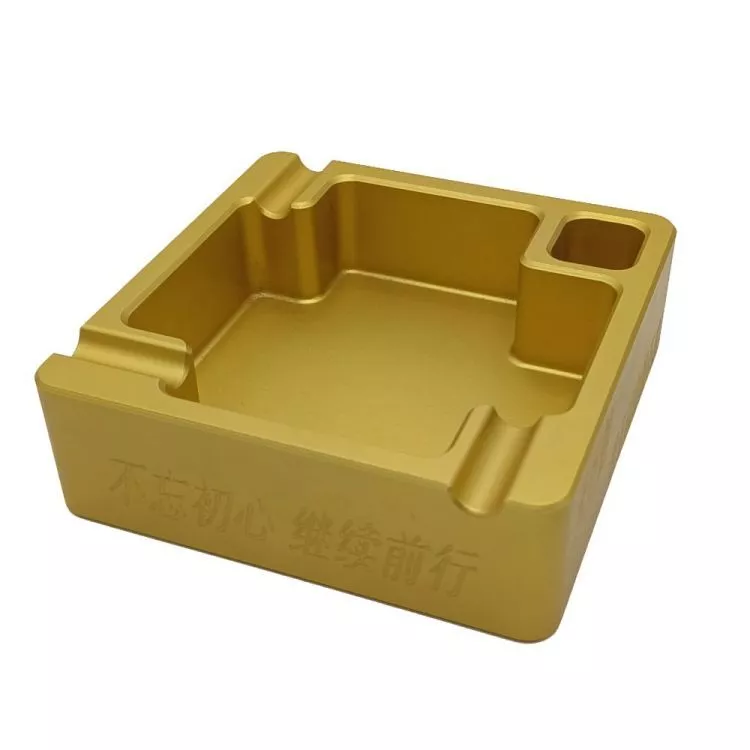

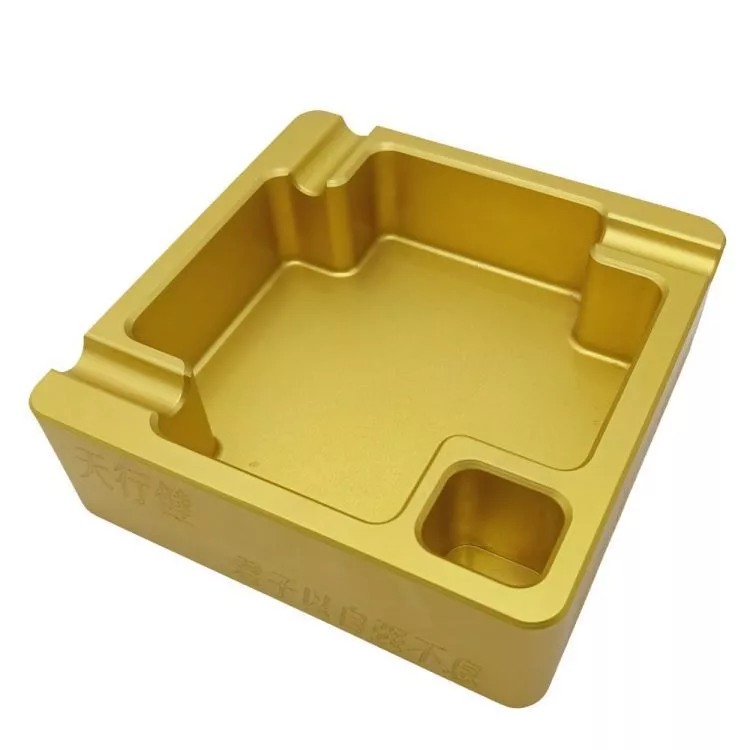

The machining example has a broad recessed pocket, a smaller corner recess and curved channels across its outer edges. The custom drawing should define each pocket and its relationship to the surrounding rim, including the required floor and wall thicknesses.
Prototype and manufacturing review
Specify the pocket depths, corner radii, overall outline and any fitted or cosmetic surfaces. Identify the features requiring milling, turning or other secondary machining. For prototype enquiries, provide the intended evaluation quantity and the later production quantity separately.
S2307 lists aluminum alloy, customized sizes and anodized, oxide or powder-coated finishes. The listed minimum order is 100 pieces; confirm a separate prototype arrangement where required. PDF, CAD, IGES and STEP formats are listed. Include revision and final acceptance requirements with the quotation request.
