Custom Drawing A380 ADC12 Aluminum Pressure Die Casting Parts with CNC Machining

• Model Number

  DM2103
  Material

  Aluminum
• Application

  Industry
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder coating/oxidation etc
  Mold making

  By ourself
• Process

  Die Casting-deburring- Machinery
  Service

  OEM ODM
• Feature

  Eco Friendly
  Quality Control

  Professional Inspection
• Packing

  Carton

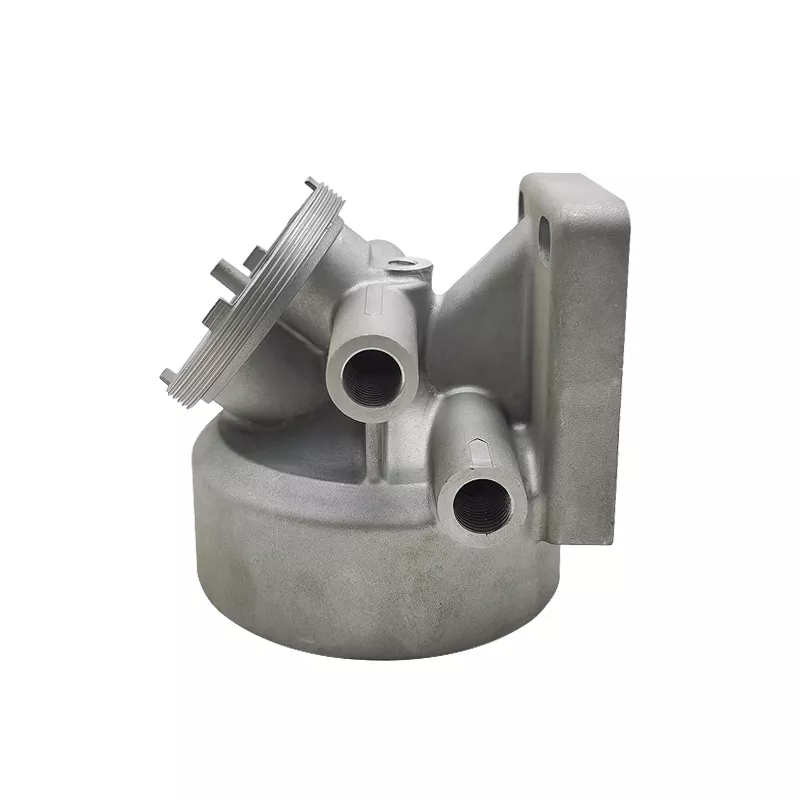

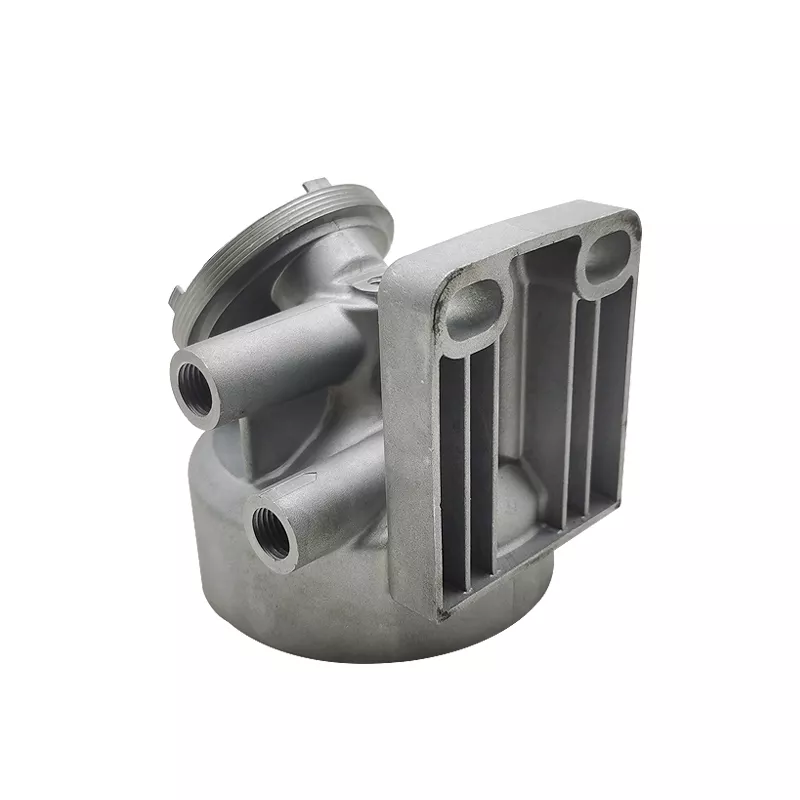

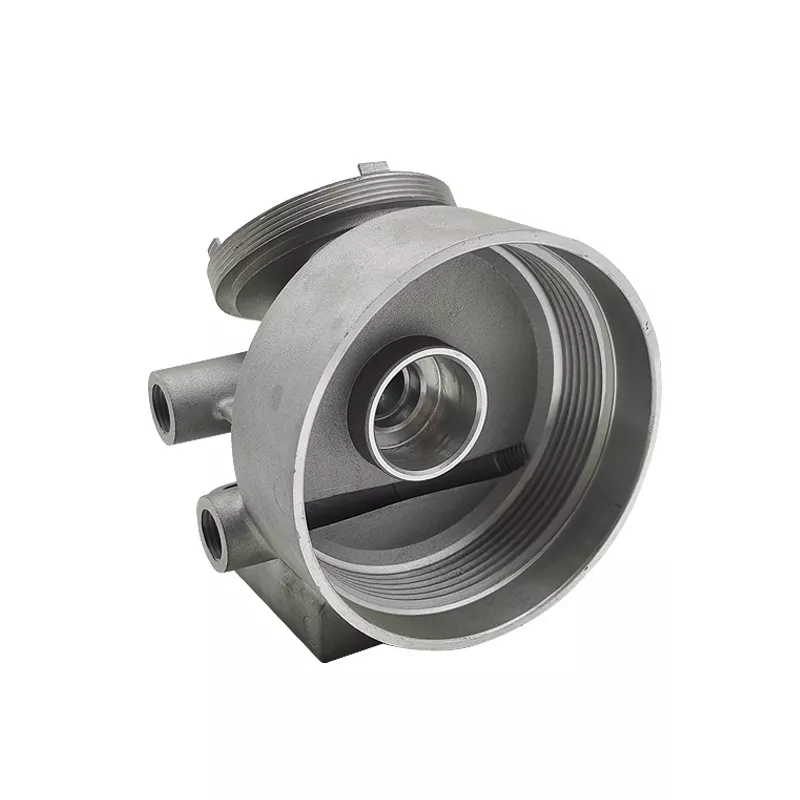

Define the round housing by its stepped bore and surrounding connections before choosing the supplied scope. The example has concentric thread-like grooves around a large open face, a smaller projecting connection and two side tubular openings. Its appearance does not establish an internal mechanism or a standard thread.

Locate the central bore and surrounding openings

Provide sections that relate the stepped central interface to the open face and side projections. State actual thread or connection specifications where required. Identify which spaces connect internally and include mating dimensions wherever they determine engagement, alignment or clearance in the finished assembly.

Choose alloy and the CNC interface scope

A380 and ADC12 are aluminum grade directions for the pressure die-casting enquiry. Specify the selected grade, condition and required material evidence. Define the casting blank separately from bores, faces or connections needing CNC work, with units and tolerances tied to the actual drawing.

• Provide the round-housing drawing and component revision.
• Choose actual A380 or ADC12 aluminum requirements.
• Locate stepped bore, face and side connections.
• Define CNC work and any separately supplied fittings.
• Agree finish and final inspection documentation.

Inspect the finished housing connections

Select a compatible treatment and identify masking or checks needed at threads, seats and contact faces after finishing. State the condition in which dimensions are accepted and which additional pieces, if any, are included with the housing.

Provide quantities, intended service and functional-test requirements. Concentric grooves and tubular openings prove no sealing, pressure or fluid-service rating. Those conditions require actual acceptance criteria and evidence for the selected housing design and supplied assembly.

Discover the precision and quality of our Metal Casting Foundry Custom Drawing CNC Machining Casting Parts, crafted from high-grade A380 and ADC12 aluminum. These pressure die casting parts are tailored to meet the specific dimensions requested by our customers, ensuring a perfect fit for your industrial applications.

Each component undergoes a rigorous process that includes die casting, deburring, and precise machinery operations, resulting in products that not only meet but exceed industry standards. Our in-house mold making capabilities empower us to bring your unique designs to life with exceptional accuracy.

We prioritize environmental sustainability in our manufacturing processes, producing eco-friendly casting parts that contribute to a greener future. Quality control is paramount; hence, we implement professional inspections at every stage of production to guarantee reliability and performance.

The surface treatment options available—including paint, powder coating, and oxidation—allow for further customization, ensuring that our products not only perform well but also look great. For added convenience, all items are securely packed in cartons for safe transportation.

With OEM and ODM services available, we are committed to providing you with the best casting solutions tailored to your business needs. Choose our Metal Casting Foundry products for unmatched quality and service.
