OEM CNC Machined Blocks with Central Bores and Side Threads for Aluminum, Steel and Stainless Steel Part Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

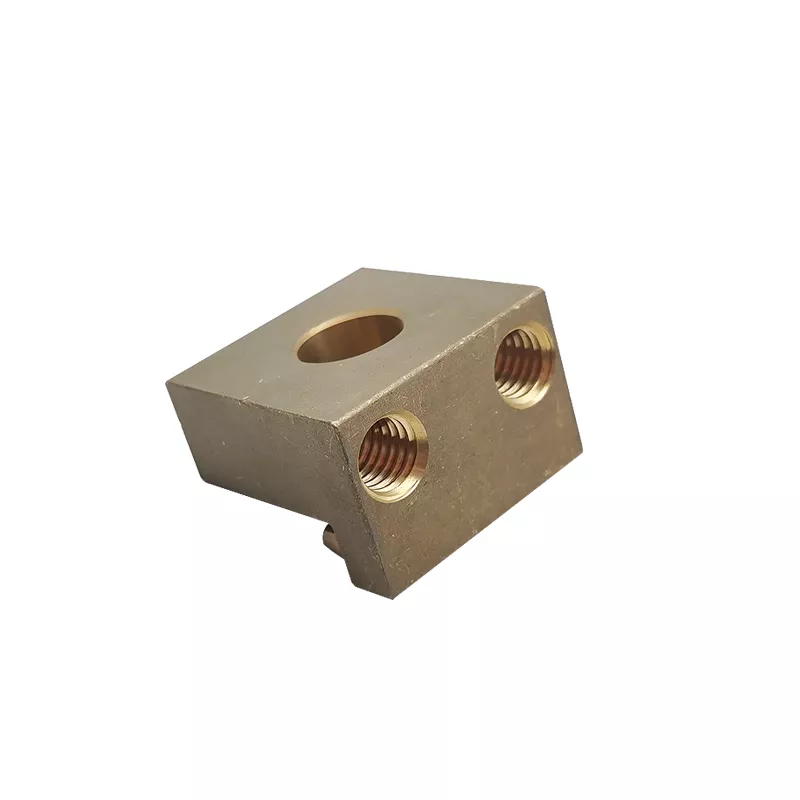

The example is a rectangular block with a large top opening, two threaded side holes and a relieved lower edge. Dimension the bores from the locating faces and show any intended intersections in section.
Material and hole requirements
For model 2012, aluminum alloy is named as the material, with steel and stainless steel among available machining choices. Specify the actual grade, quantities and turning, milling or drilling requirements. PDF, CAD, IGES and STEP drawing formats and MOQ 100 are listed. Define the thread standards, engagement depths and inspection datums. Select a finish suitable for the chosen metal; the photographed gold color does not identify its alloy or establish a pressure rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
