Custom Stainless Steel Aluminum Titanium CNC Milling Turning Parts with Hollow Fluted Geometry
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes
Relate the outside flutes to the central bore

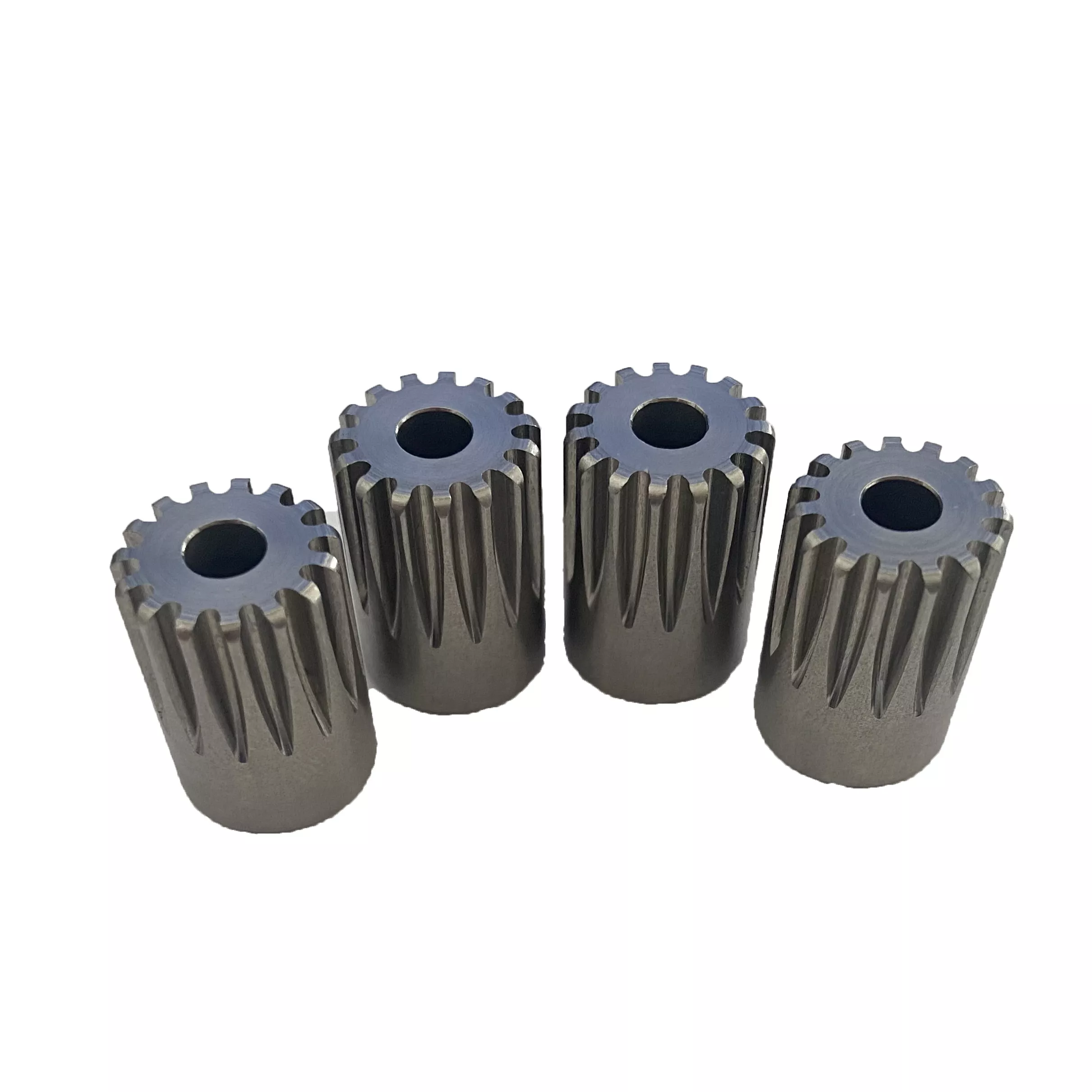

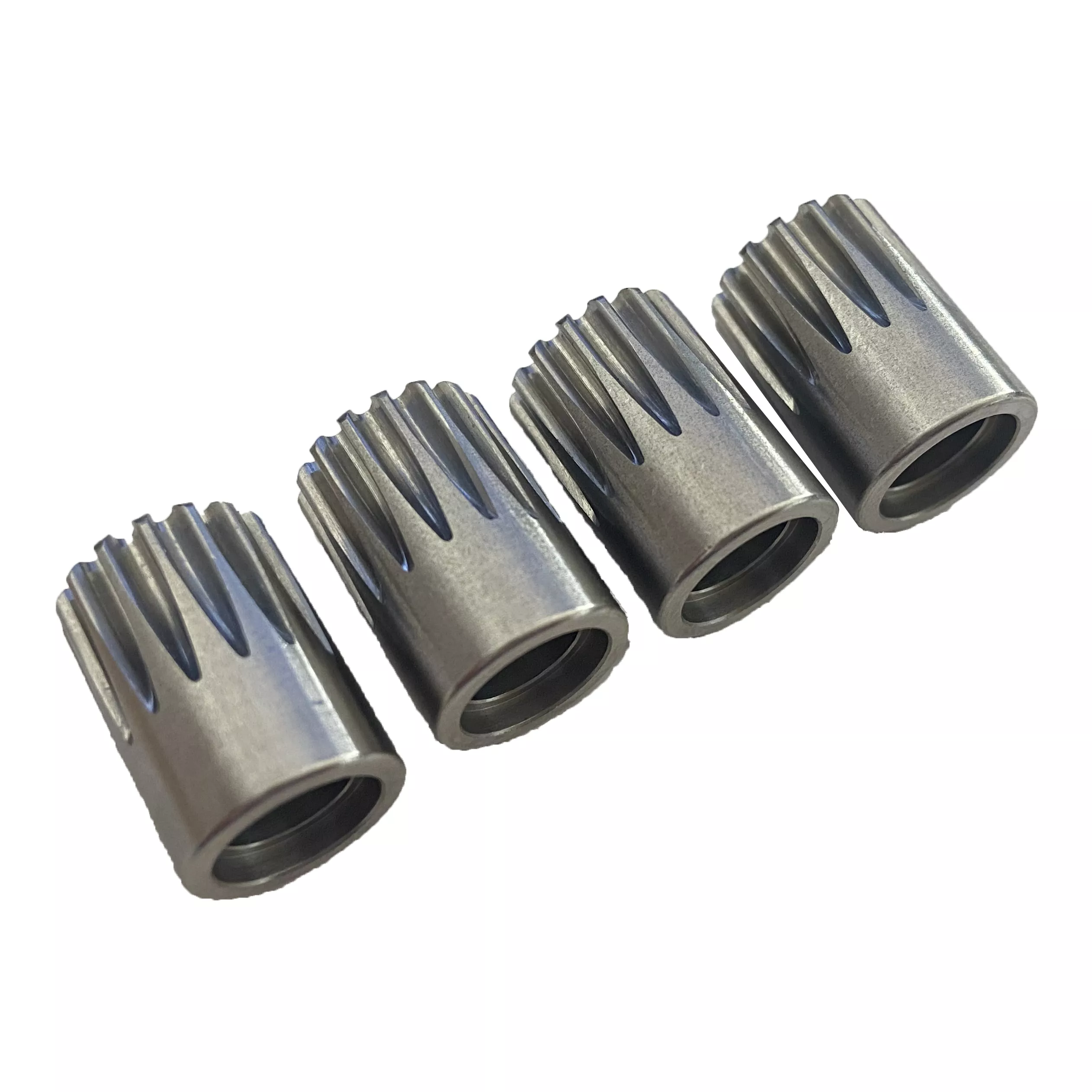

The example range shows hollow cylindrical parts with longitudinal grooves around their outer surfaces. Define the bore and end faces from the same axis used for the flute pattern, with the groove profile and outer diameter fully dimensioned.
Material and machining information
For stainless steel, aluminum or titanium CNC machining enquiries, specify the alloy and material condition. Identify the turned surfaces and the grooves or other details requiring milling, with tolerances for the actual mating interfaces.
Provide quantities, surface-treatment requirements and the current drawing revision. Include the mating component geometry and inspection criteria for the bore, end-face relationship and external profile.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
