OEM Custom Aluminum CNC Lathe Turning and Milling Parts with Cross Holes, Threaded Bores and Mounting Features
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)
Coordinate cylindrical bores and mounting interfaces

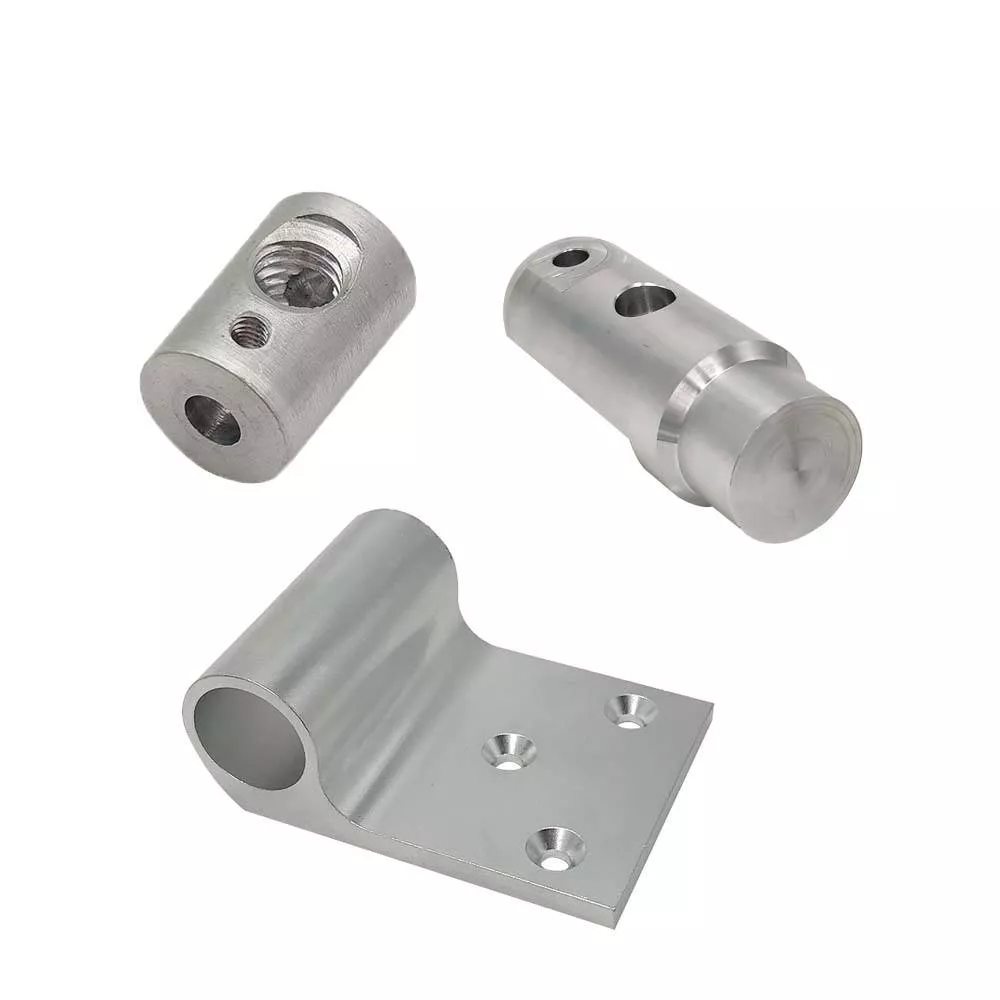

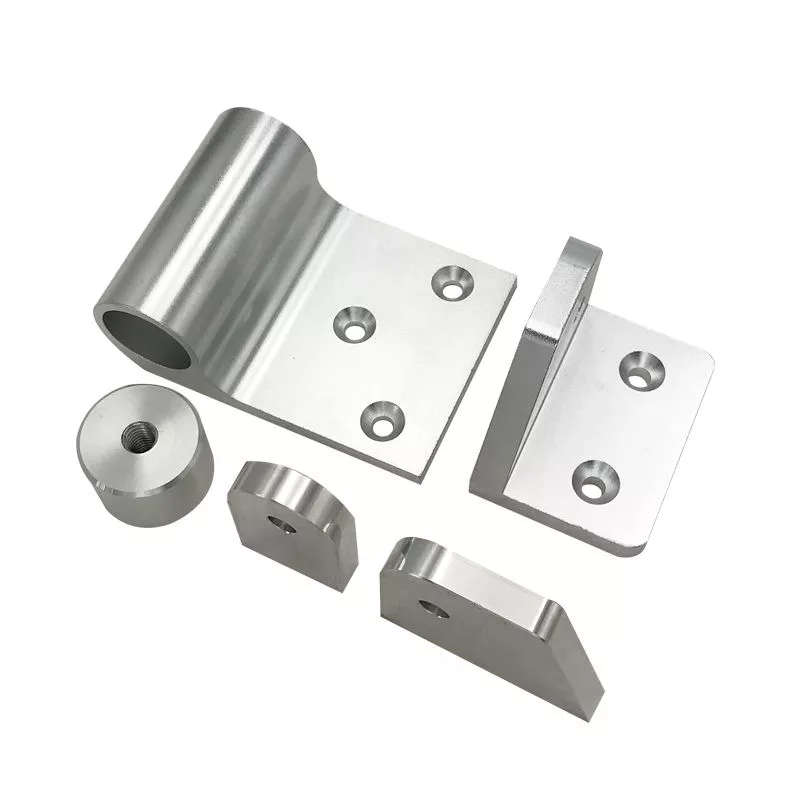

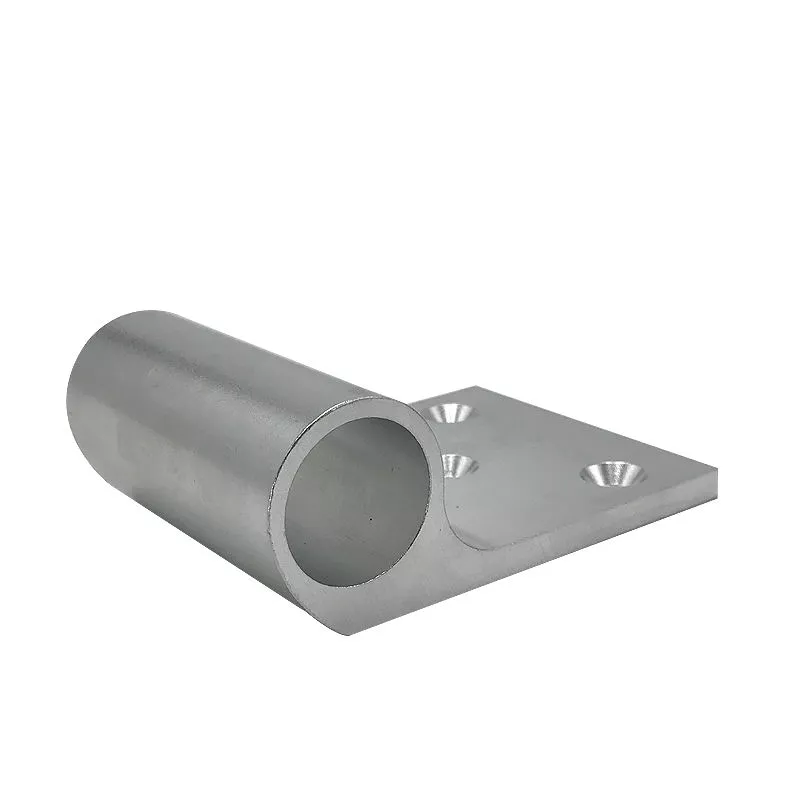

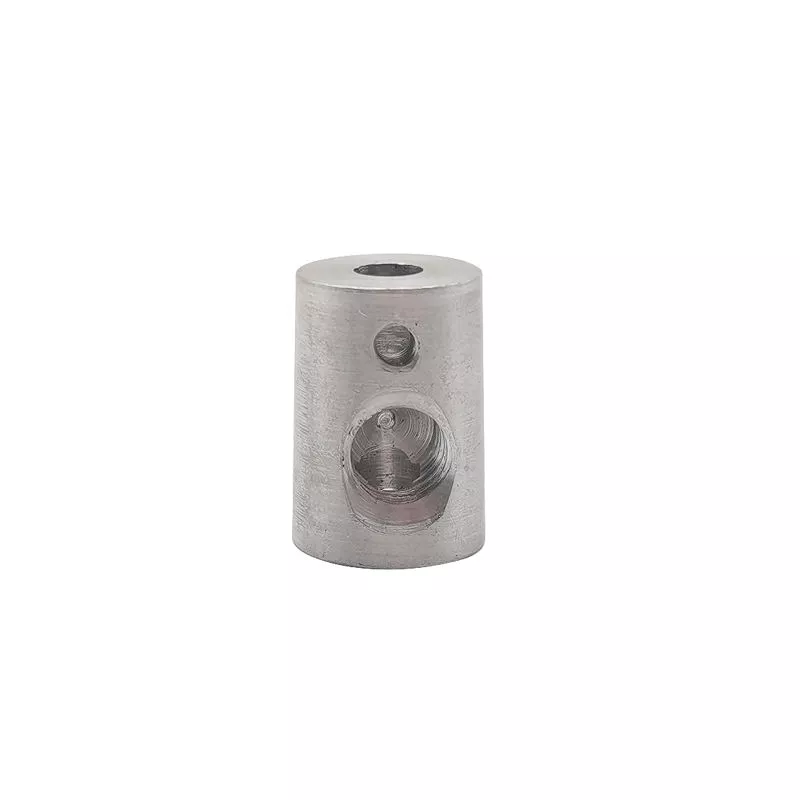

The selection includes short cylindrical pieces with side openings and a mounting bracket with a broad plate, cylindrical opening and recessed fixing holes. Identify the required component and its relationship to the mating assembly.
Model Dmetal-200389 lists aluminum alloy CNC turning, milling and drilling with customized sizes. Provide the alloy, quantities and drawing in PDF, CAD, IGES or STEP format. Dimension any cross holes, internal threads and seating shoulders from shared references. For the bracket, include the mounting pattern and bore axis. Define the finish and inspection requirements for each part; the selection does not establish a common size or complete assembly.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
