Custom CNC Milled Mounting Plates with Counterbores and Threaded Holes for Aluminum and Brass Rapid Prototype Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

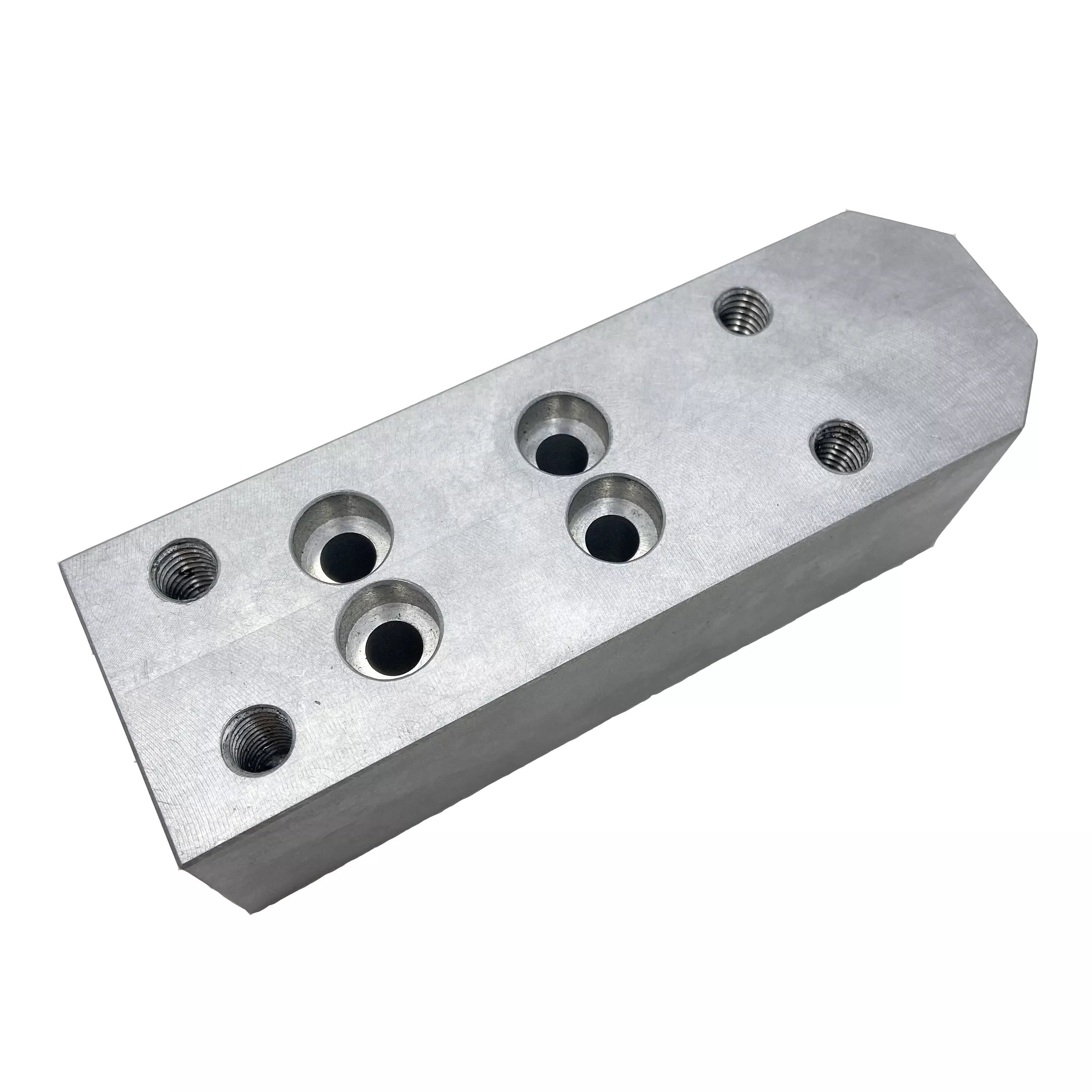

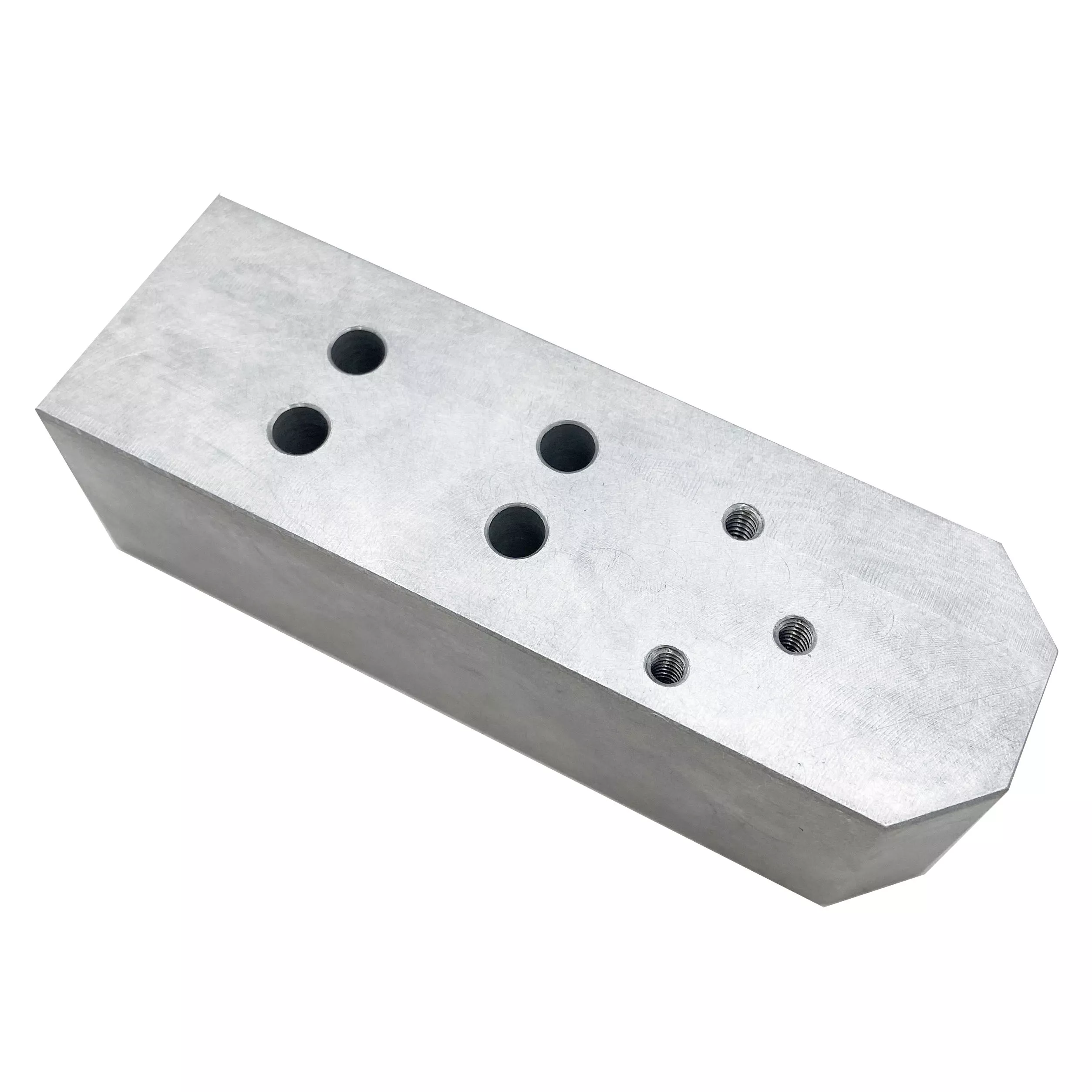

The main example is an elongated plate with recessed through holes and a separate pattern of threaded holes. Establish the locating faces and hole centers together so the mounting pattern can be checked against the mating assembly.
Drawing revision for prototype and machining review
Model Dmetal-200389 lists aluminum alloy, with brass among the machining capabilities, and includes rapid prototyping, turning, milling and drilling services. Specify the actual grade, quantities and prototype stage in PDF, CAD, IGES or STEP drawings. Identify any turned features separately from the milled plate. Include counterbore depths, thread requirements and inspection dimensions, then agree the required finish for the selected metal.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
