Custom SS303 SS304 SS316 CNC Turning Parts | Threaded Fitting Machining Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2307Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc
End threads and radial openings on turned bodies

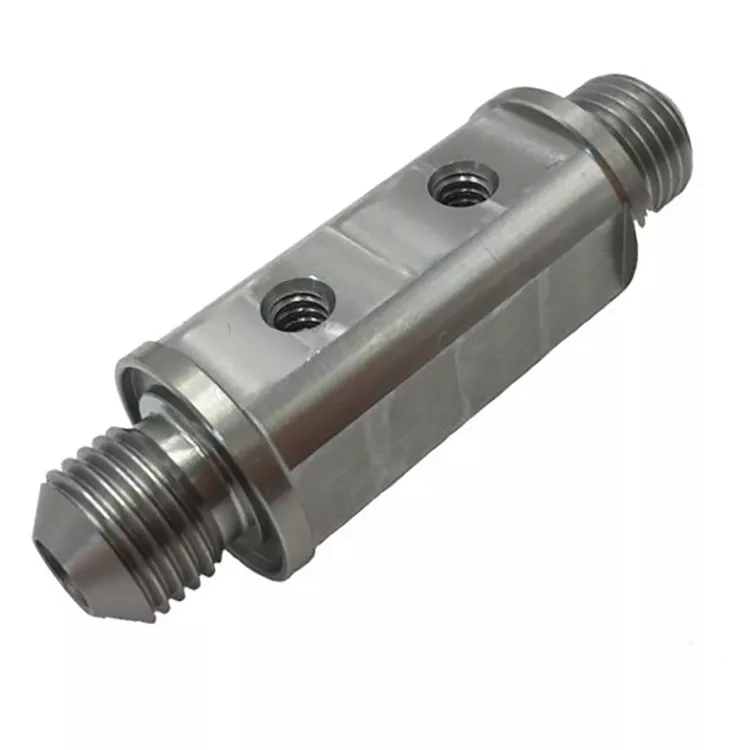

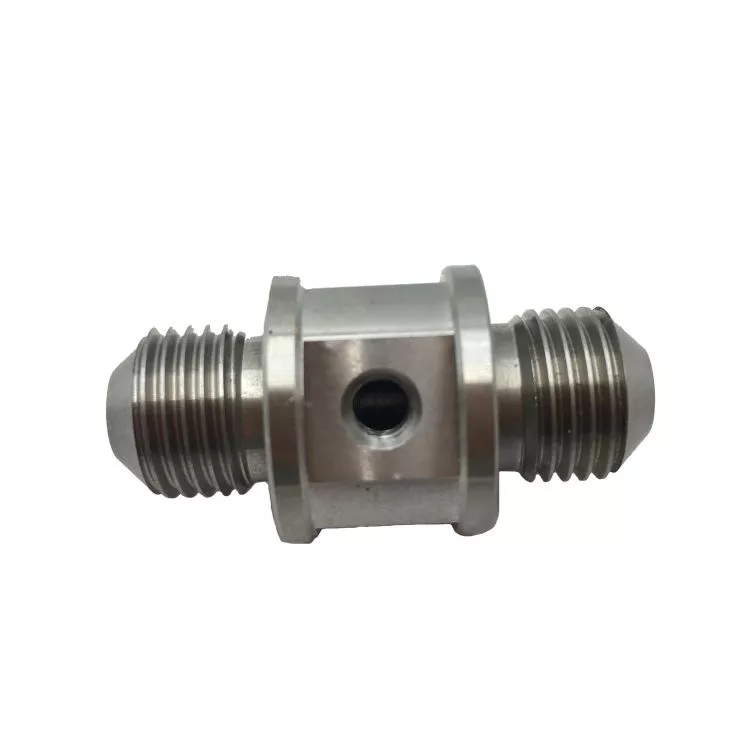

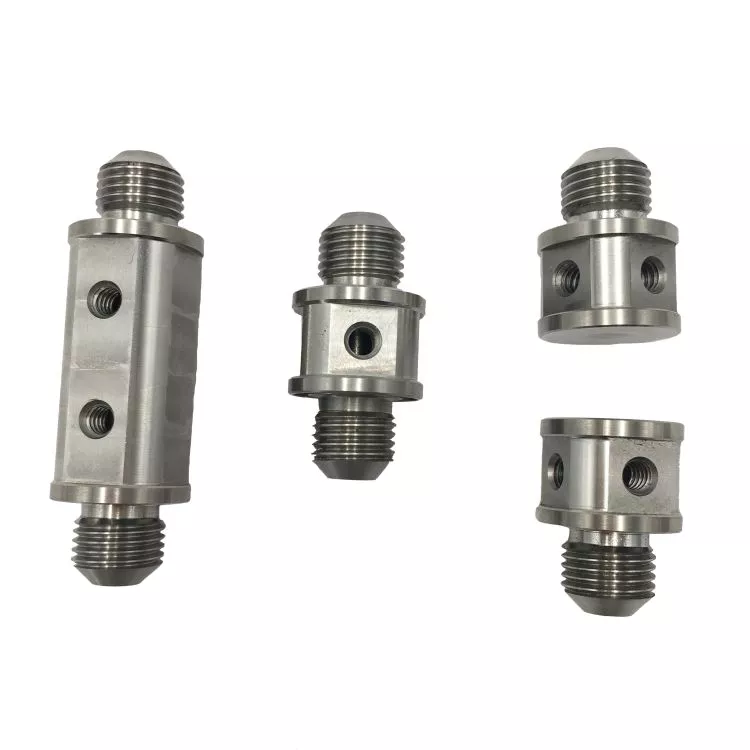

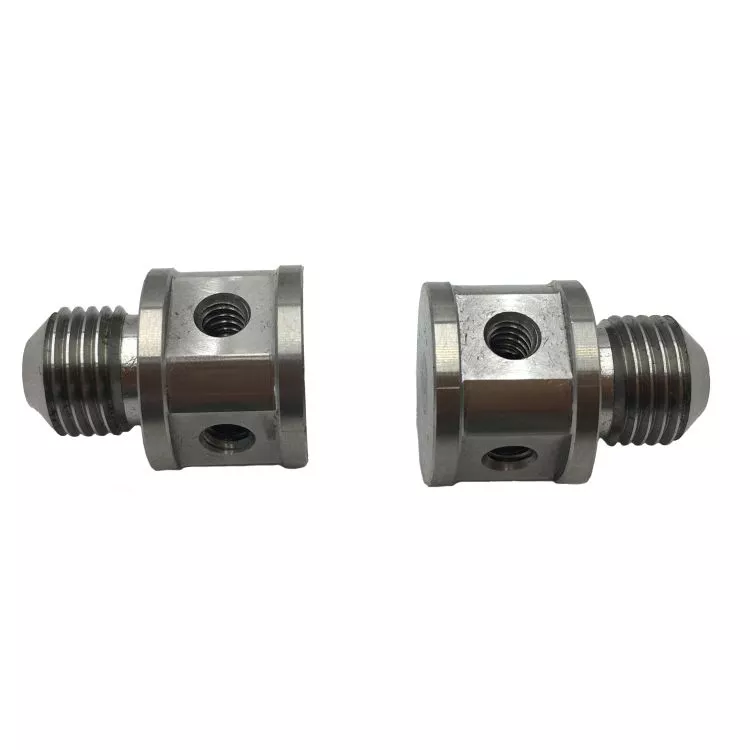

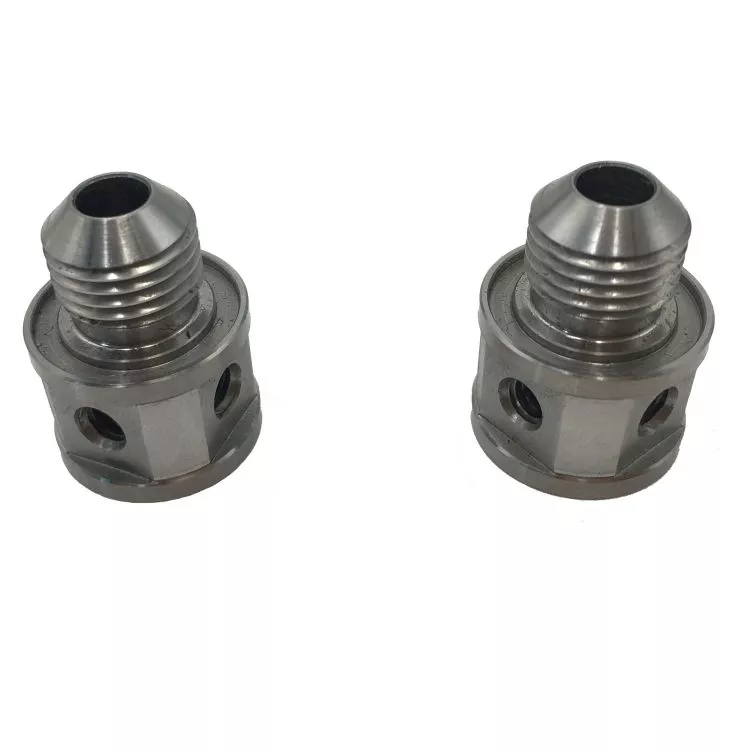

The examples have cylindrical sections, projecting threaded ends and holes through their sides. Define each thread and bore from the part axis, with the finished lengths and wrenching or contact features.
For SS303, SS304 or SS316, specify the actual grade and acceptance documents. The broad stainless capability list and dedicated aluminum-alloy entry do not verify one of those grades for the pictured fitting.
Inspection at the connecting features
Include quantities, finish and drawing revision, with thread and hole inspection criteria. State the mating components and service requirements; the image does not establish sealing, pressure capacity or a standard fitting size.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
