Custom Stainless Steel Aluminum CNC Milling Machining Parts with Pockets Ribs and Bores
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200444Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)
Pockets and bores share a common reference system

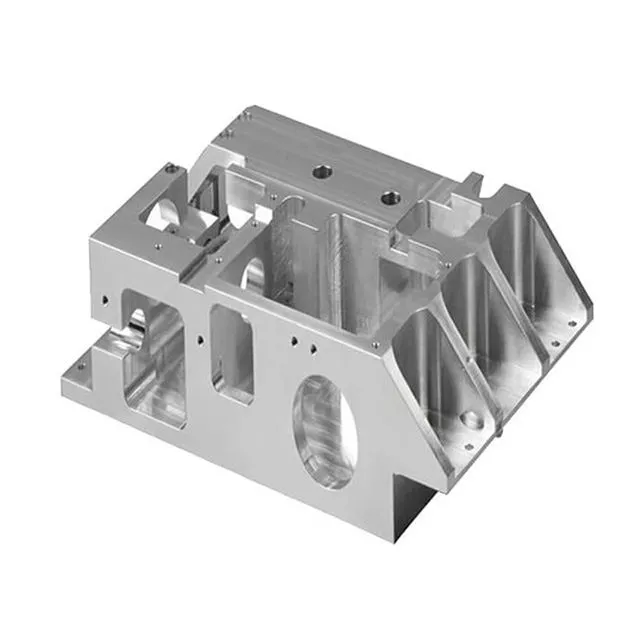

The illustrated component has open pockets, upright webs, circular openings and mounting features on several faces. Define the reference surfaces and bore axes before locating the surrounding pockets and fixing details.
Specify the aluminum or stainless steel grade and the required CNC milling operations. Where wire EDM is required, identify the exact features and inspection needs separately from the milled geometry.
Drawing information for review
Include the CAD model, critical dimensions, surface finish and quantities. Mark the relationships controlling assembly, with the drawing revision and any inspection records required for the finished component.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
