Custom 5 Axis CNC Milling Aluminum Parts with Threaded Bores Pockets and Round Components
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2415501Product nameOEM CNC Milling/Turning/Machining Parts
-
Surface treatmentSandblasting/Anodizing/Powder Coating/Paiting/ Chrome PlatingCertificationISO9001:2008
-
MaterialAluminum/ Stainless Steel/Iron/ Brass/ Cooper/ ZamakSizeCustomized Size as the Drawing
-
ToolingMade by ourselfDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
ProcessCnc Machining + Surface Treatment
Different geometries need individual part drawings

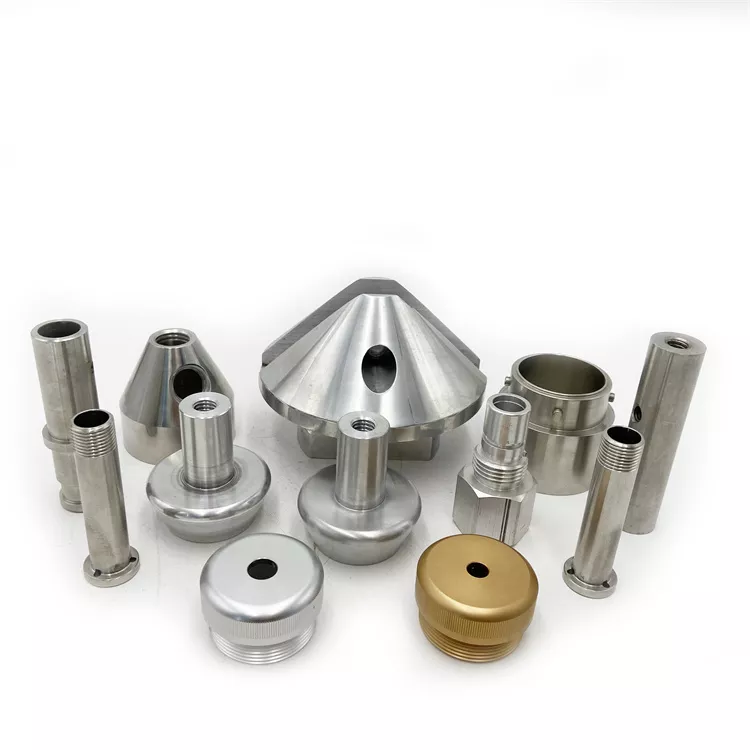

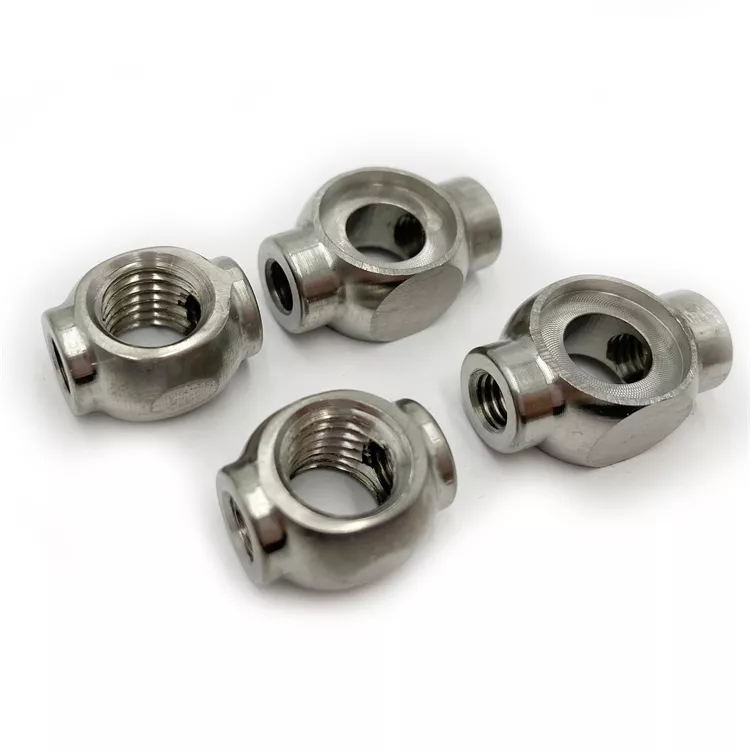

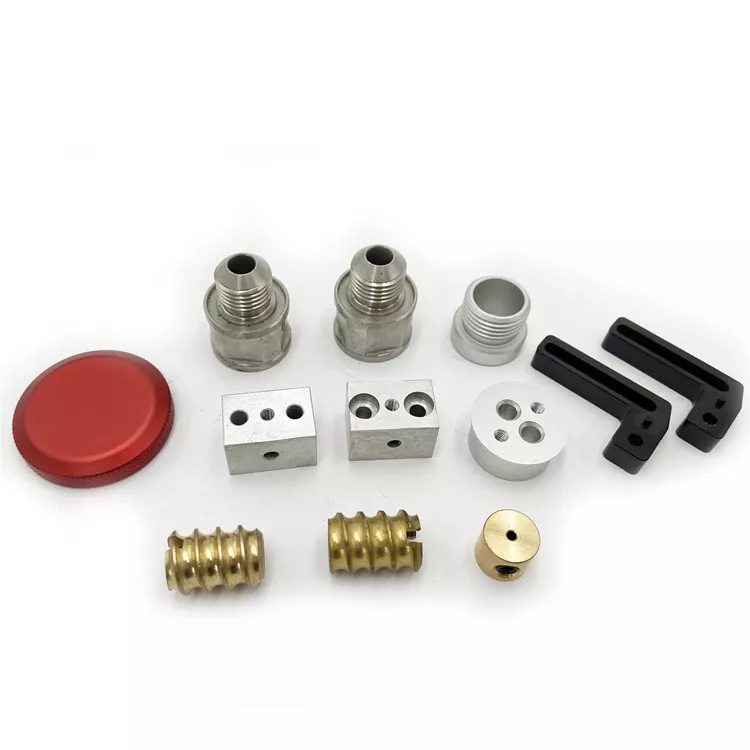

The range includes blocks with holes, threaded round forms, a disk and short cylindrical components. Identify each requested item and define its bores, pockets, threads and mating faces on a separate drawing.
Multi-face machining requirements
For a 5-axis CNC milling enquiry, provide the aluminum alloy and features requiring access from different directions. Distinguish turned surfaces from drilled or milled geometry and specify the required finish.
Include quantities and drawing revisions, with critical fit dimensions and inspection requirements per component. Identify any coating allowances at threads or locating interfaces.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
