Product description
Project & Delivery Requirements
-
Model NumberS2406Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingCertificationISO9001 CE
-
MaterialPA66/PP/ABS /PC, EtcFeatureHigh Precision Injection Parts
-
Product namePlastic Injection PartsDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Surface treatmentPolish. Etched. Texture.electroplating.paintingColorCustomer's Request
-
ProcessInjection Mould Plastic PartApplicationIndustrial Plastic Parts
-
KeywordPlastic injection
Define the bore, outer contact and material interface

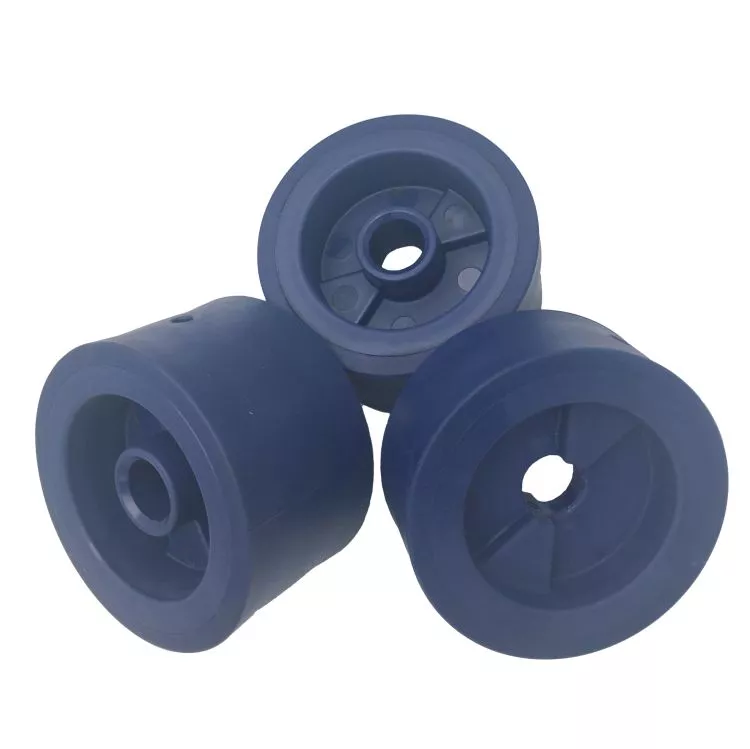

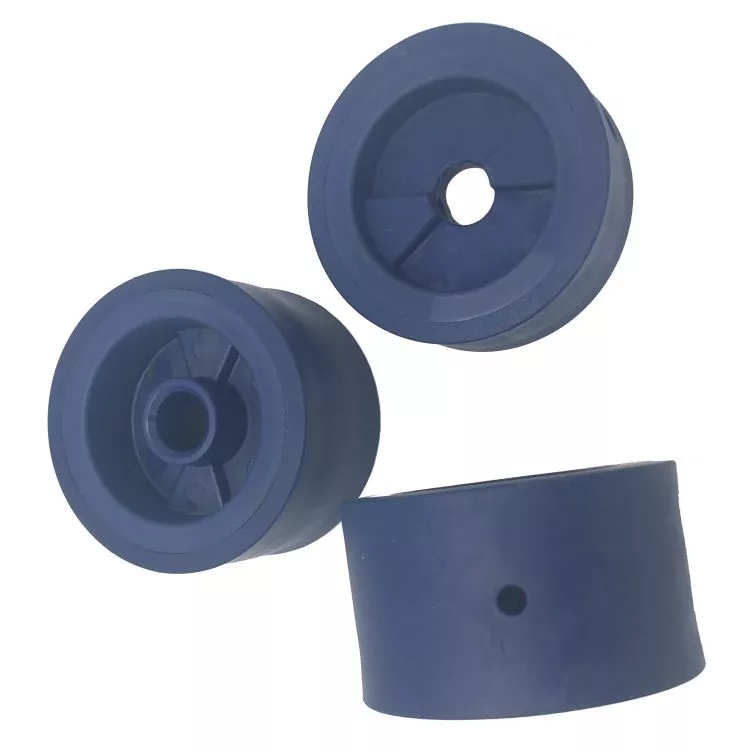

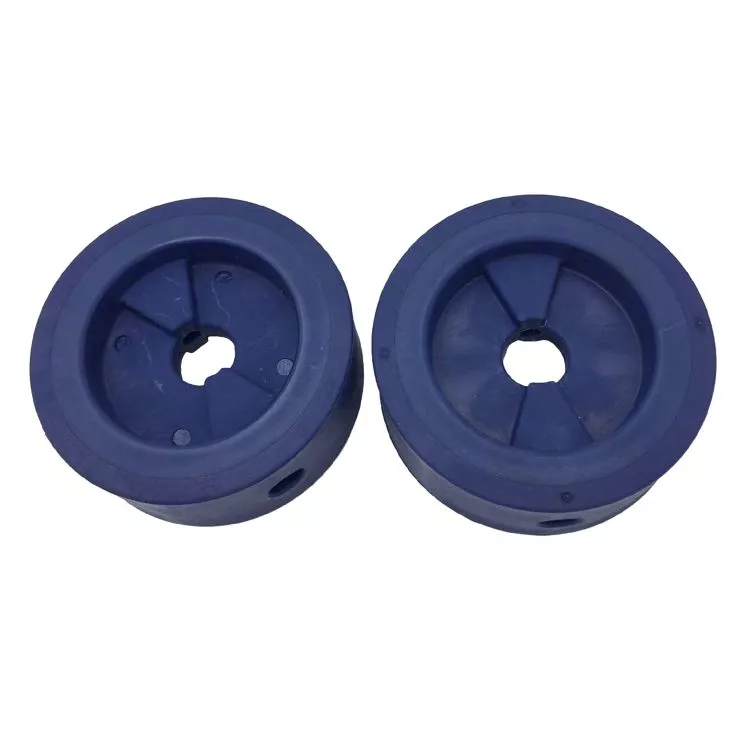

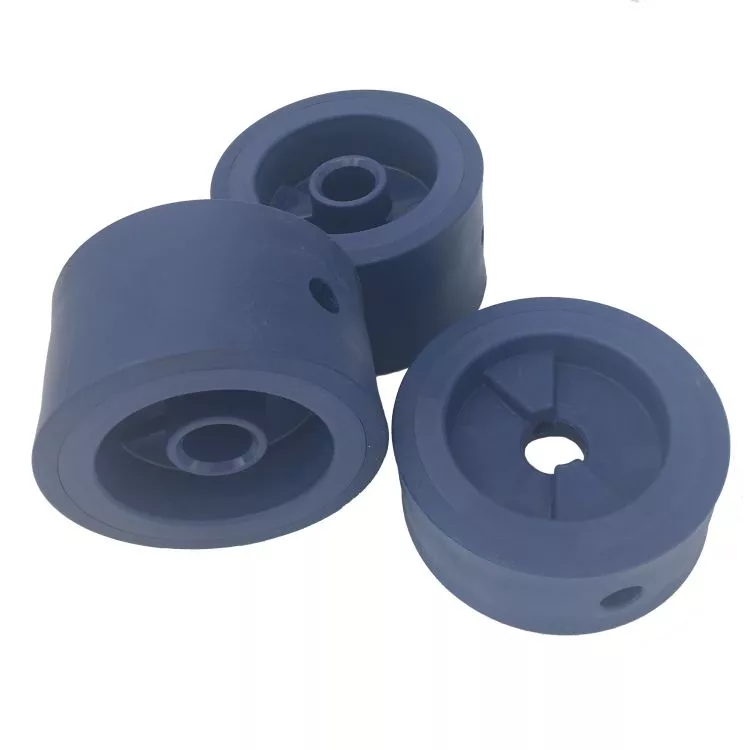

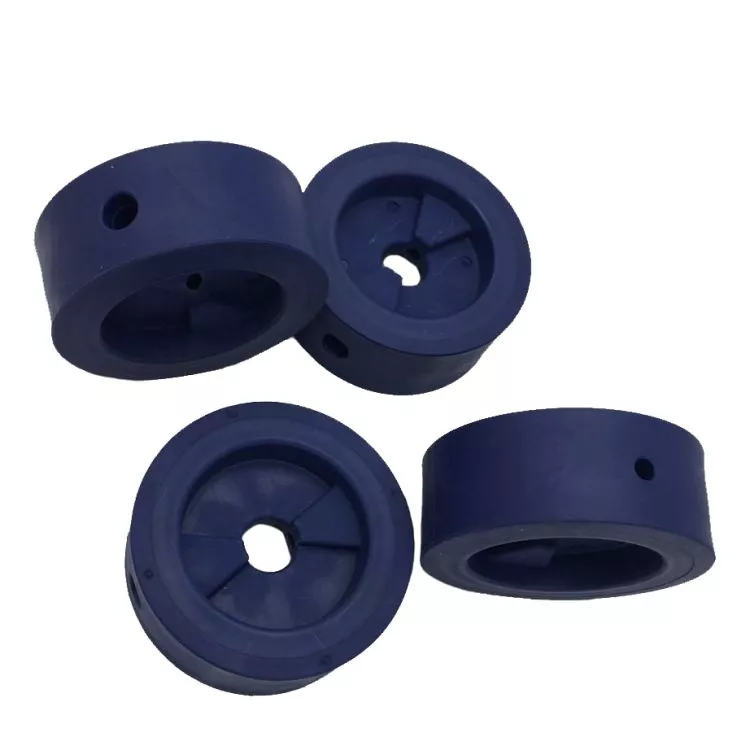

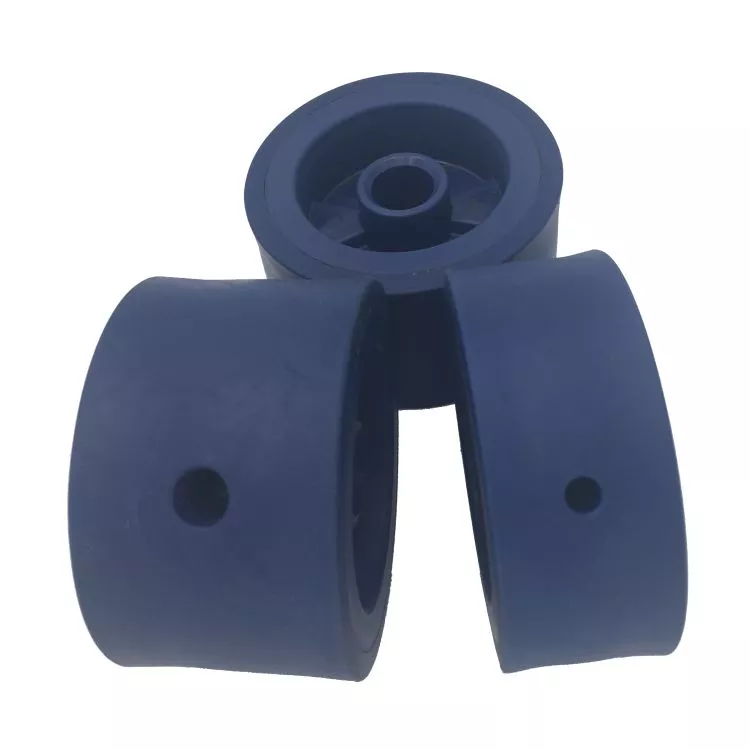

The round blue examples show a center opening, a raised hub on one face and radial ribs around it. Dimension the bore, hub and outer contact surface together, and identify any separate inner or outer component on the assembly drawing.
For an overcoating or overmolding request
State the substrate and overlay materials, the intended layer boundary and any bonding or retention requirement. The ABS and nylon entries alone do not identify a second material or establish that the pictured form is overmolded.
Provide the color reference, finish, quantities and inspection requirements for the bore and mating faces. Shared photographs or galleries do not establish a different compound, size or supplied assembly for this listing.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
