Custom Plastic Injection Molded Brackets | Caps Sleeves and Mounting Components

• Model Number

  S2211
  Plastic Modling Type

  Injection
• Processing Service

  Moulding, Cutting, Painting
  Color

  Customized
• Size

  Customized Size
  Material

  PA66/PP/ABS /PC, Etc
• Certification

  ROHS
  Feature

  High Precision
• Shape

  Customized Shapes
  Packing

  Standard Carton Box
• Service

  Prompt Delivery
  Surface finish

  Matt Surface
• Package

  PP Bag

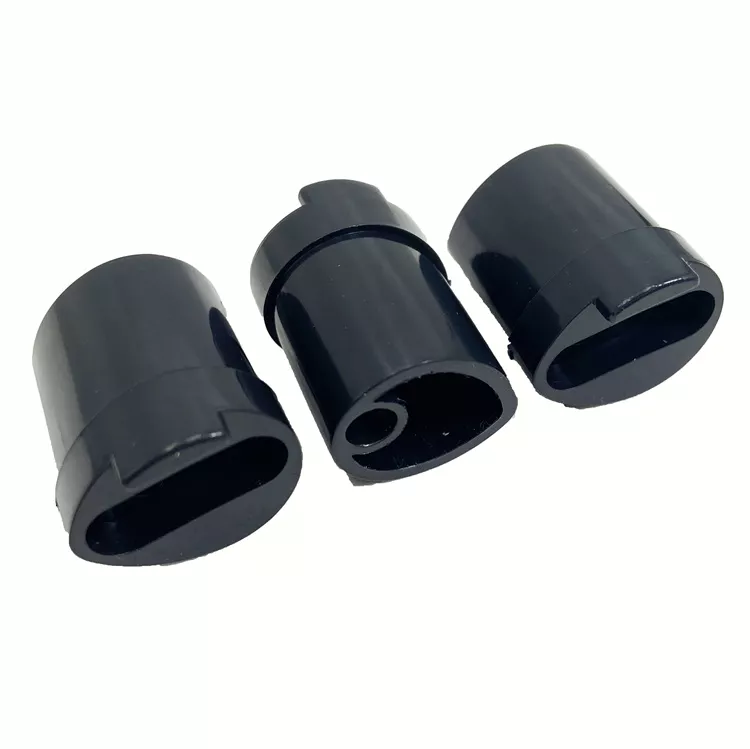

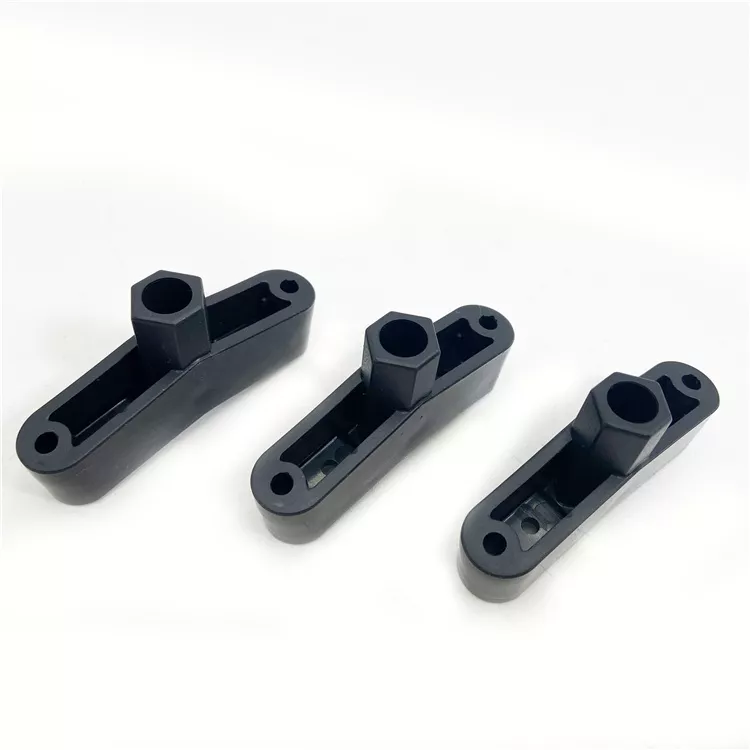

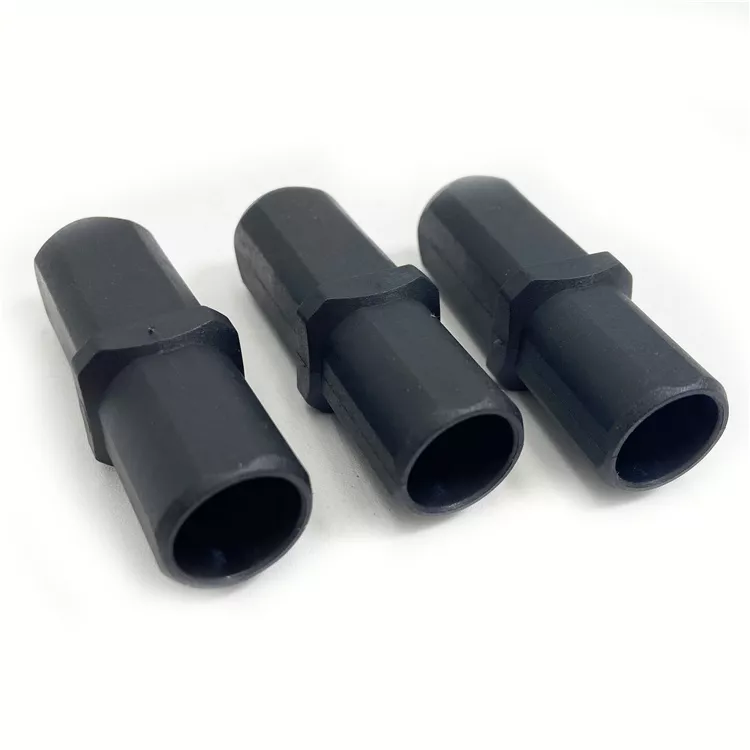

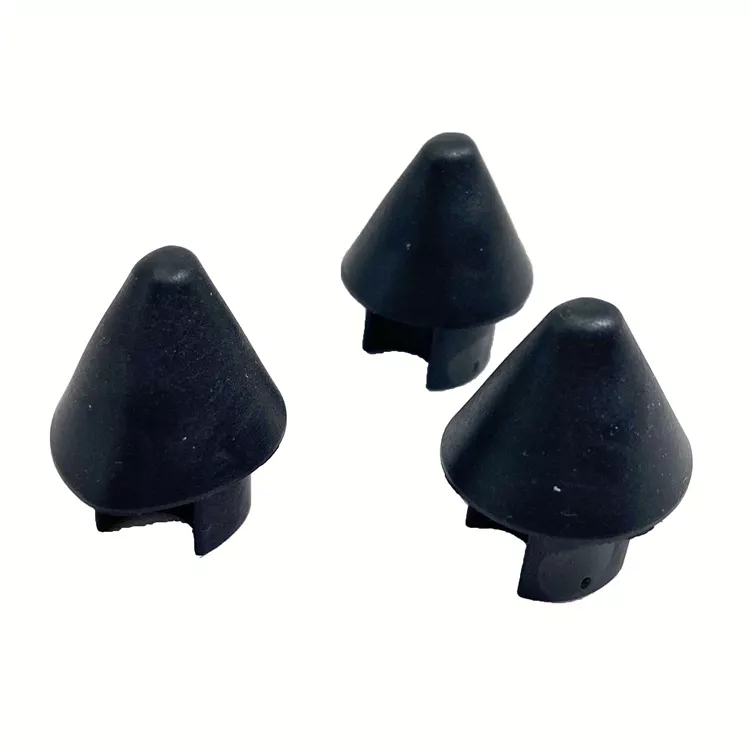

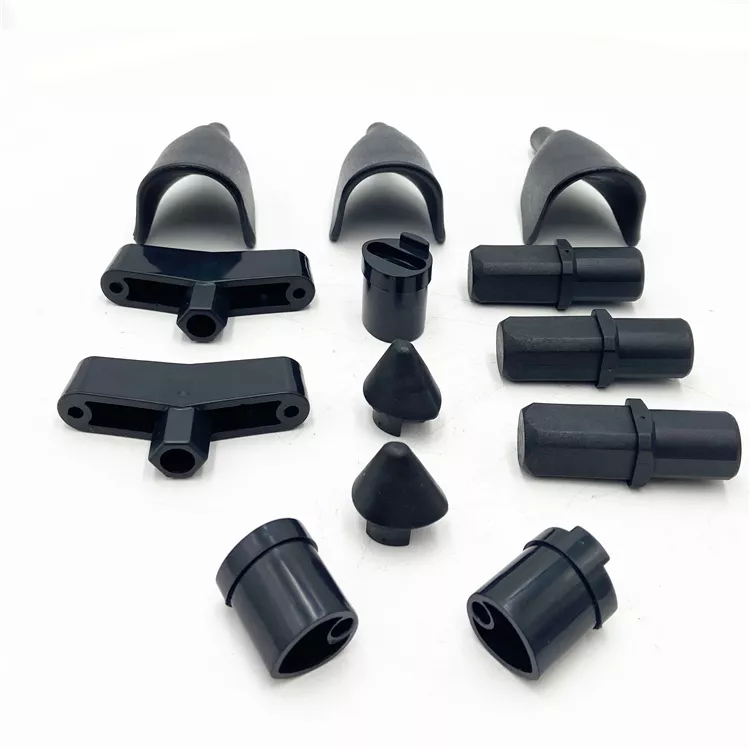

Identify the requested bracket or adjoining component individually from the assortment. The black examples include bracket-like bars, caps, cylindrical forms and conical pieces. Two bars have projecting cylindrical regions. Their grouping does not establish a supplied kit, common resin or a shared mounting and load requirement.

Define the bracket within its actual assembly

Provide individual drawings that locate fixing regions, openings and contact surfaces from functional datums. Identify the adjoining components and any clearance or retention requirements. Distinguish caps and sleeves from bracket bodies, with separate item references and quantities where more than one form is required.

Select resin and molding scope per component

PA66, PP, ABS and PC are material options for separate selection. Specify the actual grade, required condition and color reference for each item. Define matt appearance and any cutting or painting where needed; a common black surface cannot verify a shared polymer or finishing plan.

• Identify each bracket, cap or sleeve configuration.
• Provide its drawing and mating-interface geometry.
• Select exact resin grade and supplied condition.
• Define appearance and any included hardware.
• Agree dimensional and functional acceptance checks.

Inspect the molded mounting interfaces

Mark drawing tolerances with units and measurement conditions at the working contacts. If a bracket supports force or retains another part, provide actual service conditions and suitable tests. Neither its name nor the grouped photograph establishes allowable load or installation compatibility.

Include quantities and requested material or inspection records. Keep the quotation schedule aligned with the individual component definitions so assorted examples cannot be mistaken for a complete tested assembly.
