Custom Anodized Aluminum CNC Turning Milling Parts with Circular Recesses and Mounting Holes
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeMilling
-
Material CapabilitiesBrass, Aluminum, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, OtherMicro Machining or NotMicro Machining
-
Model NumberS2410MaterialHardened Metals
-
ProcessCNC Machining Milling TurningSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing Format2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)ColorCustomized Panton Color or Ral Color
-
Processing TypeAxis CNC Machining Service
Circular recesses and a peripheral fixing pattern

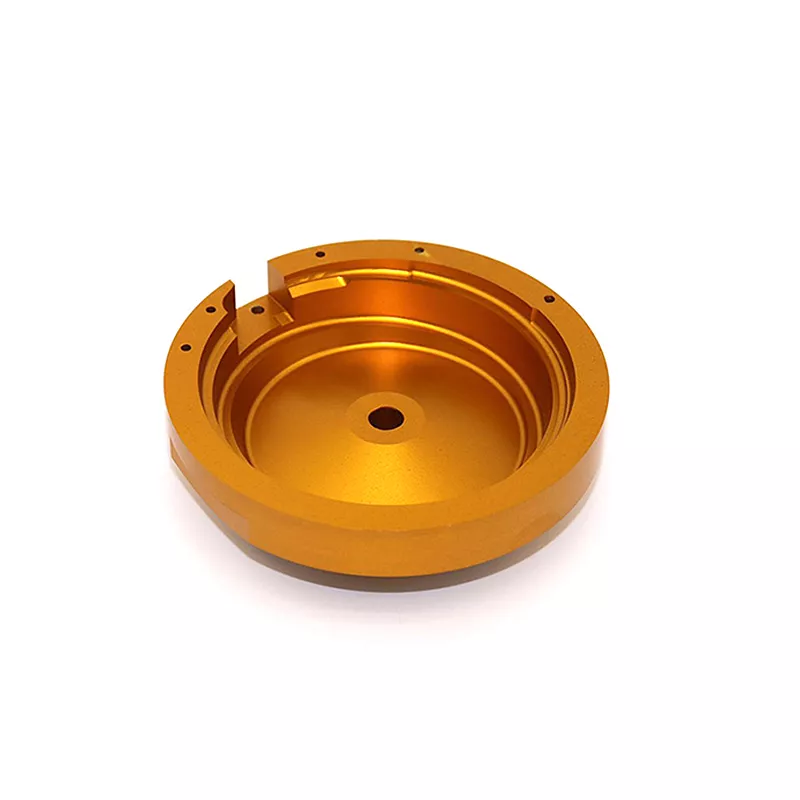

The colored example has stepped circular recesses, a center hole and small fixing holes around the rim. Define the center axis and reference face, then dimension the recess depths, shoulder diameters and hole pattern.
For anodized aluminum CNC machining, specify the alloy, color and finish requirement. Identify any interfaces needing masking or dimensional allowance after treatment, with the required turning and milling features.
Part information for review
Provide quantities, mating-component geometry and the drawing revision. Mark critical fits, cosmetic surfaces and the inspection criteria for the completed component.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
