Industrial Custom Aluminum CNC Turning and Milling Parts with Anodizing Options for Hexagonal and Grooved Threaded Profiles
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2405Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm

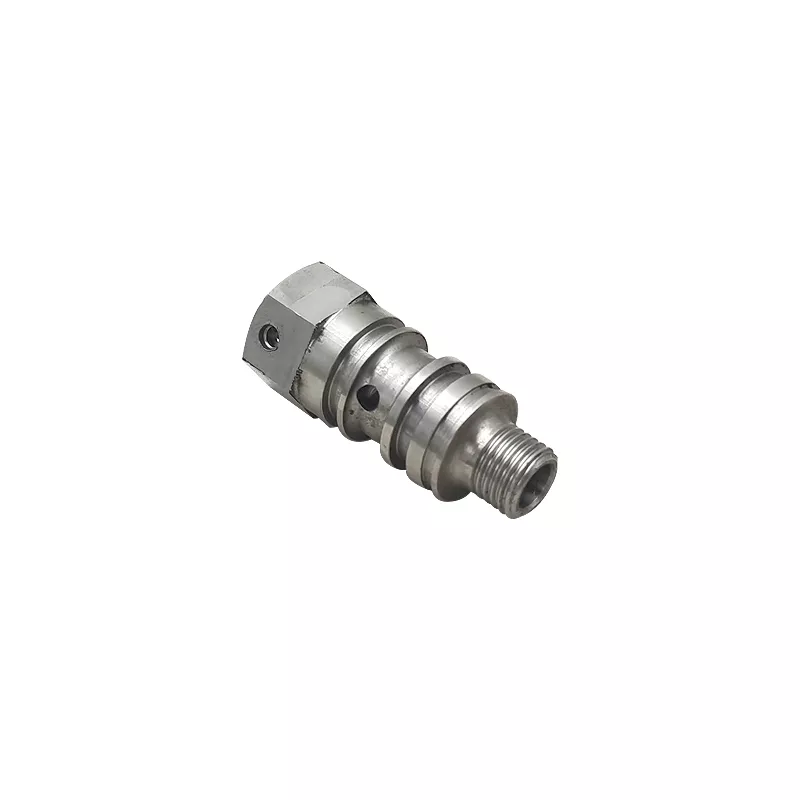

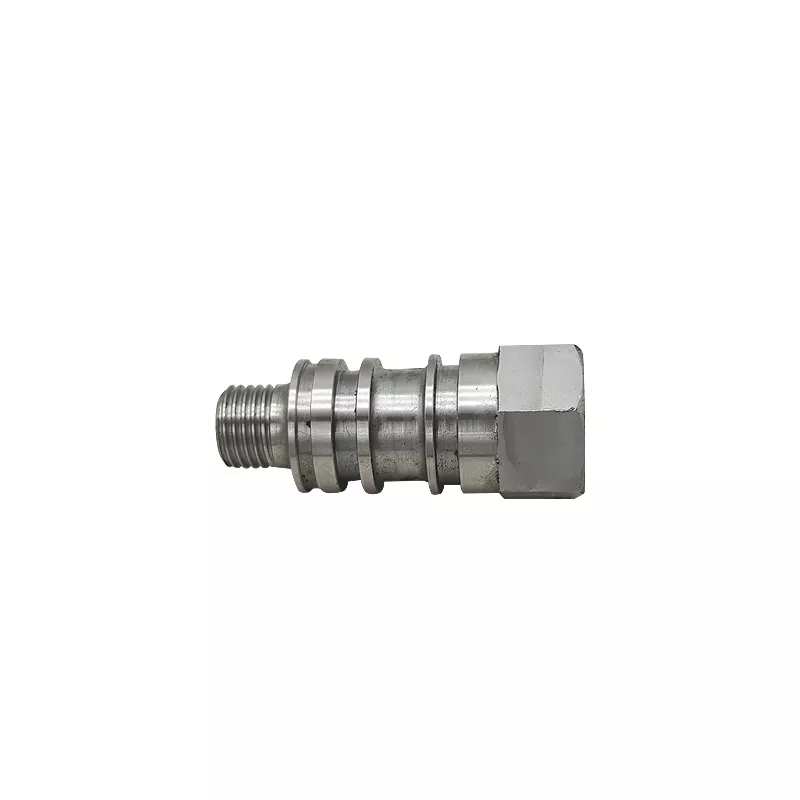

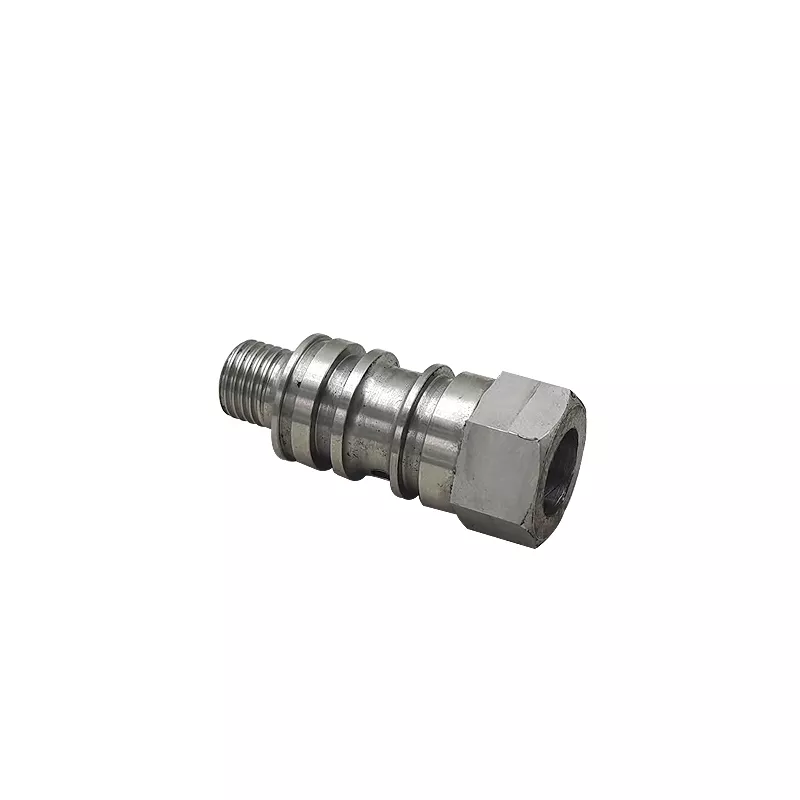

Hexagonal end, grooves and external thread
The illustrated component combines a hexagonal section, stepped circular grooves, transverse holes and an externally threaded end. Show how the holes and hexagonal faces are oriented relative to one another. Dimension the thread and each shoulder from the functional locating face.
Finish and drawing information
Model S2405 lists aluminum alloy CNC turning and milling, deburring and surface treatment including anodizing options. Submit the alloy, quantities and PDF, CAD, IGES or STEP drawings; MOQ 100 pieces is listed. Identify any surfaces requiring masking or fit checks after treatment. Specify the intended connections rather than assuming a standard fitting or pressure rating from the shape.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
