Custom Anodized Aluminum Three Hole Round Base Plate CNC Milling for 1 Inch Interface Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

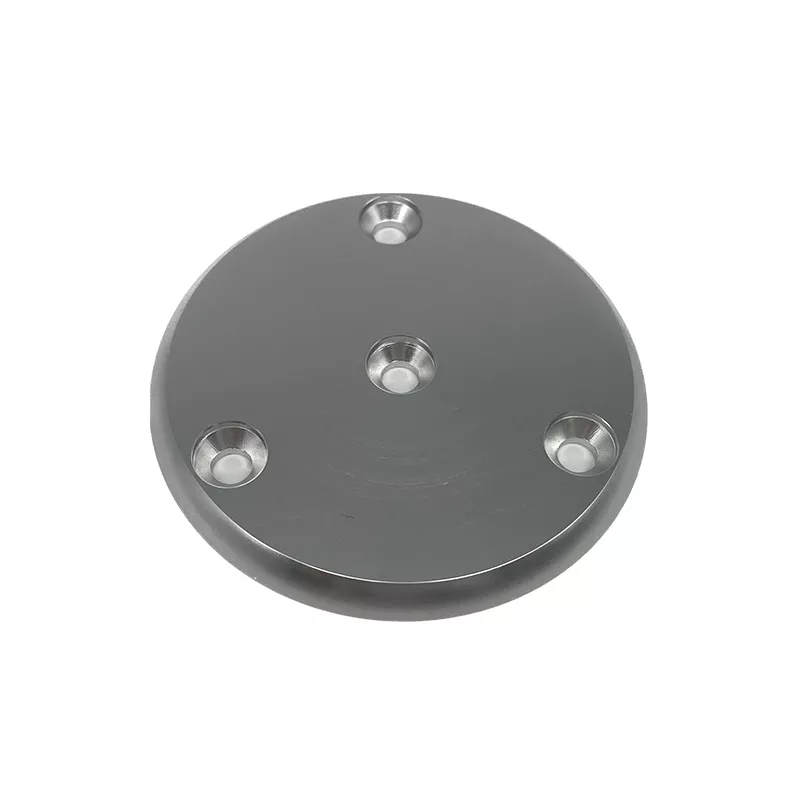

Three countersunk holes in a round plate
The example shows a circular plate with three peripheral countersunk fixing holes. Define the plate diameter and thickness, then dimension the fixing pattern and countersinks from the center reference.
For a nominal 1-inch interface enquiry, identify what that dimension refers to on the assembly drawing. Specify the aluminum alloy, machined contact surfaces and anodizing requirement, including any areas needing masking.
Assembly and inspection details
Include mating fasteners, quantities and revision. Mark the hole positions, plate flatness and finish conditions that control installation, with inspection requirements for the completed part.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
