Custom Bead Blast Anodized Aluminum Alloy CNC Machining Auto Parts with Circular Cutouts
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2307Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc
Circular component with open cutouts

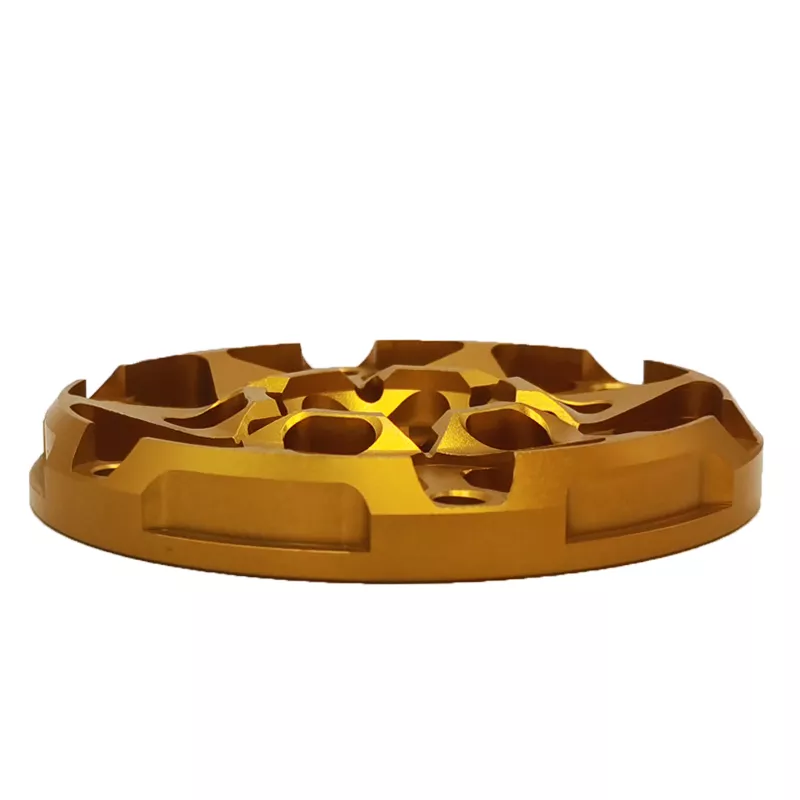

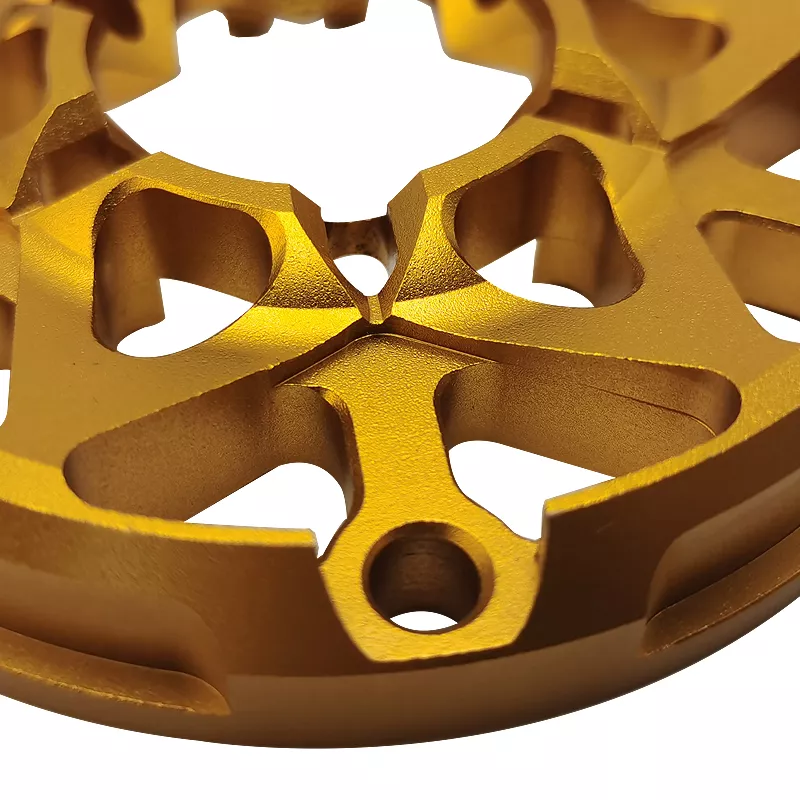

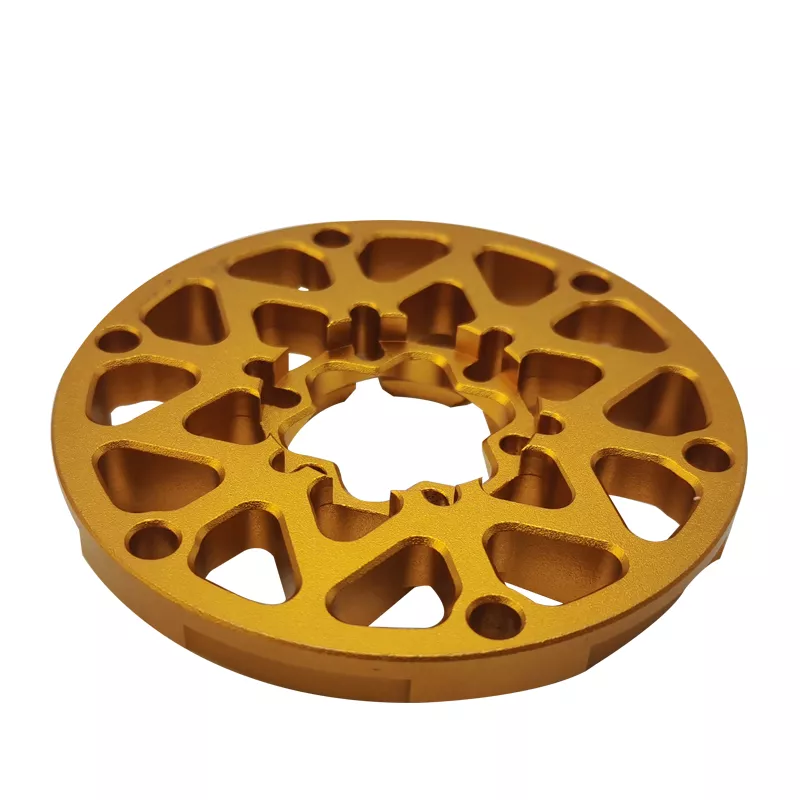

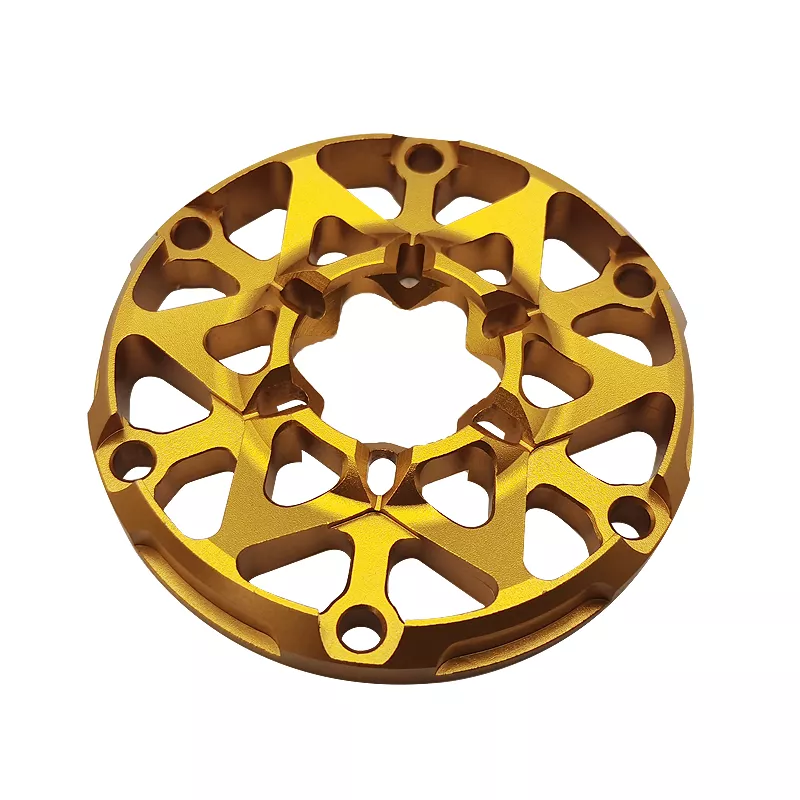

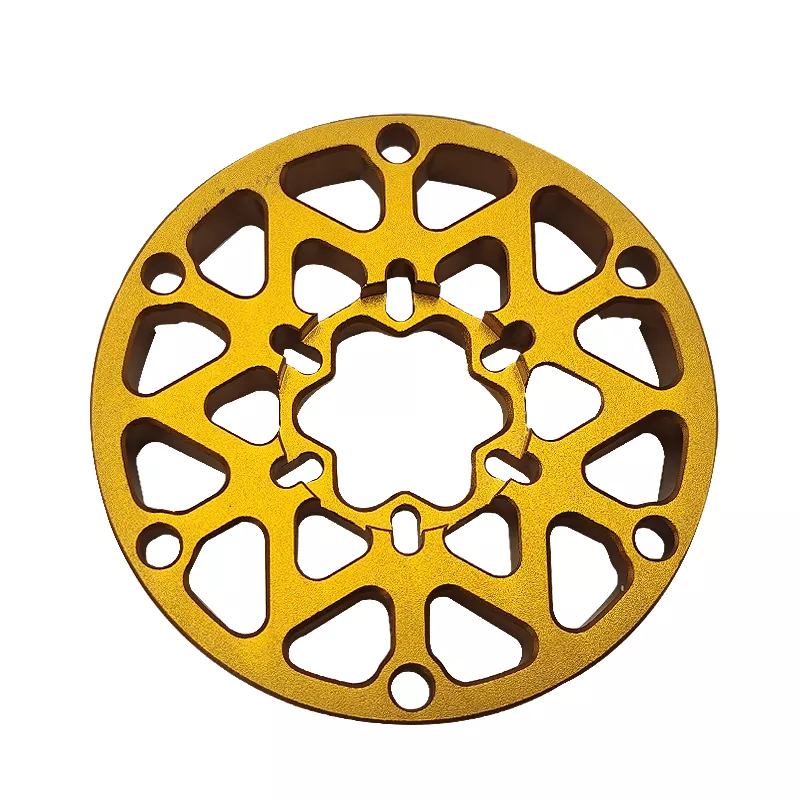

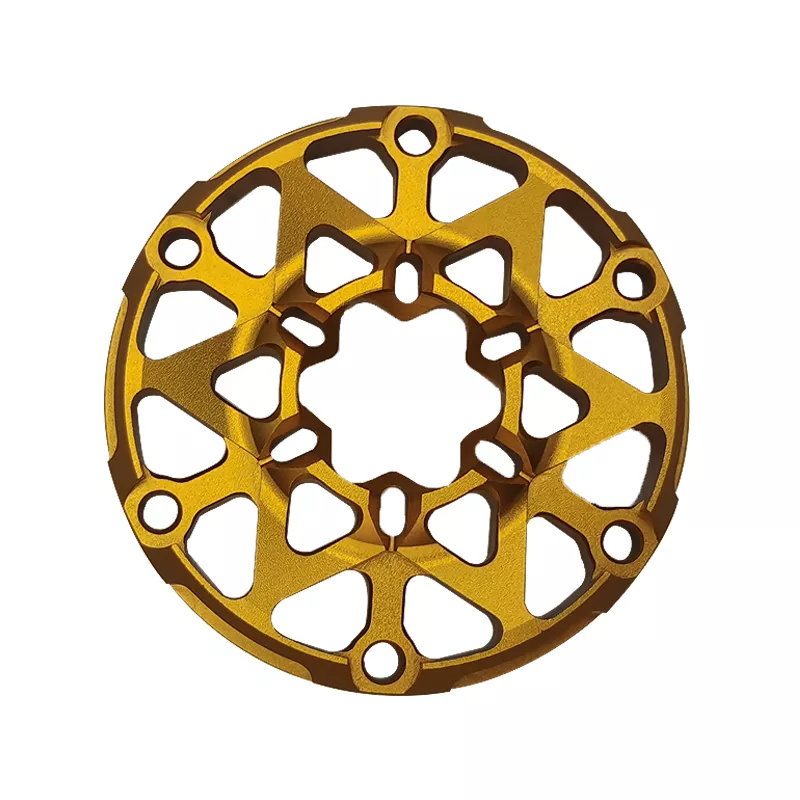

The illustrated component has a circular outline, a shaped central opening and repeated cutouts between mounting positions. Its auto-parts machining enquiry should define the ordered design and the assembly interfaces, including the central fit and fixing-hole locations.
Show the overall diameter, section thickness, cutout profiles and hole pattern on the drawing. Identify the faces that locate the component and any edge or surface requirements relevant to assembly.
Bead blasting and anodizing specification
For a bead-blast and anodized finish, provide the required texture and color reference and mark fitted surfaces needing masking. Model S2307 is listed in aluminum alloy with customized sizes; oxide finishing and powder coating are additional options for review. PDF, CAD, IGES and STEP drawings are listed, with a 100-piece minimum order. Include quantity and revision for quotation of the selected design.
